Saab 9-3 Engine Valve Cover Gasket Set Replacement Guide (2005-2011)
Stop that burning oil smell and keep your 2.0T engine clean by replacing your leaky valve cover gasket.
- A burning oil smell is the most common sign of a failed valve cover gasket on the 2.0T engine.
- Always buy a complete gasket 'set' that includes the four spark plug tube seals.
- Choose a high-quality aftermarket brand like Elring or Victor Reinz for a reliable, long-lasting seal.
- When installing, be extremely careful not to over-torque the valve cover bolts, as the plastic cover can crack. The correct torque is 88 in-lbs.
Is Your Saab 9-3 Leaking Oil?
A failing valve cover gasket is one of the most common oil leak sources on the 2.0T engine in the 2005-2011 Saab 9-3. Because the gasket is made of rubber, years of heat cycles cause it to harden, shrink, and crack. When this happens, oil seeps out and can cause several noticeable problems.
Symptoms of a Bad Valve Cover Gasket
- Burning Oil Smell: This is the most common sign. Oil drips from the valve cover onto the hot exhaust manifold or turbocharger, creating a distinct and unpleasant burning smell in and around your car.
- Visible Oil Leaks: You may see wet, oily patches or active drips on the side of the engine, particularly around the seam where the black plastic valve cover meets the metal cylinder head.
- Oil in Spark Plug Wells: When the spark plug tube seals fail, oil pools around the spark plugs. This can damage the ignition coils and cause the engine to misfire, leading to a rough idle and a check engine light.
- Low Engine Oil: A significant leak will cause your engine oil level to drop over time, requiring you to top it off frequently.
Important Note on Other Engine Issues
Some 2007-2009 Saab 9-3 models with the 2.0T engine have a known issue with premature intake valve wear, which can cause a rough start, misfires, and low compression. These symptoms can sometimes be confused with issues caused by oil-fouled spark plugs from a leaky gasket. If you have a rough idle primarily when the engine is cold, it's wise to have a mechanic perform a compression test to rule out the more serious valve issue 🎬 Watch a breakdown of common mechanical issues for this model. before replacing the gasket.
Choosing the Right Aftermarket Gasket Set
Since Saab is no longer in production, the distinction between OEM and aftermarket parts can be blurry. High-quality aftermarket brands are often the original equipment manufacturer for other European car brands and provide excellent quality for a part like this. The key is to choose a reputable brand to ensure a good seal and long life.
Aftermarket Brand Tiers

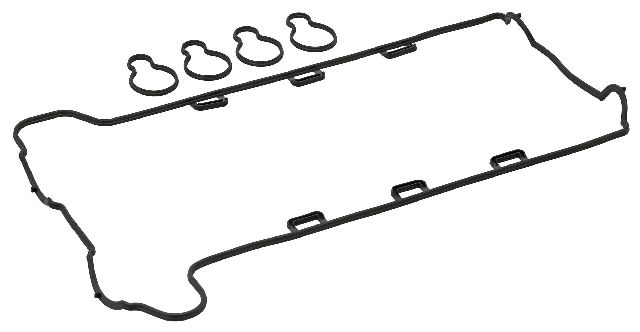

- Tier 1 (OEM Quality): Elring, Victor Reinz (Reinz)

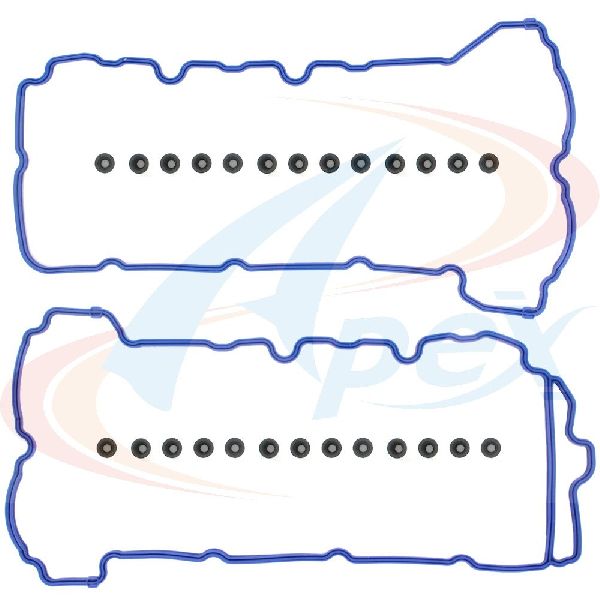

These German brands are well-regarded as OEM suppliers for many European vehicles and are known for their precise fit and high-quality materials. For a critical seal, choosing one of these brands is a safe and reliable bet. - Tier 2 (Quality Aftermarket): Apex
Apex is a known aftermarket brand that offers a balance of quality and value. While not always considered a top-tier OEM supplier like Elring or Reinz, their gaskets are a solid choice for most repairs. - Tier 3 (Economy): Professional Parts Sweden (PPS)
While the name sounds specific and promising, owner feedback on this brand is mixed. Some parts are acceptable, while others have been reported to be of poor quality. It may be a budget-friendly option, but for a part that requires significant labor to access, spending a little more for a Tier 1 or Tier 2 brand is often a better investment.
| Brand Tier | Brands | Estimated Price |
|---|---|---|
| Tier 1 (OEM Quality) | Elring, Victor Reinz | $60 - $91 |
| Tier 2 (Quality Aftermarket) | Apex | $50 - $70 |
| Tier 3 (Economy) | Professional Parts Sweden | $40 - $55 |
Pro Tip: What's in the Box?
Always buy a "set" or "kit". A complete valve cover gasket set for the Saab 9-3 should include the main perimeter gasket and four round spark plug tube seals. Replacing all these components at the same time is essential for a complete and lasting repair.

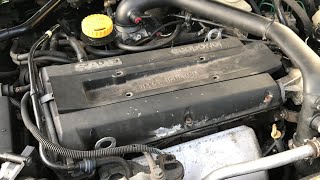

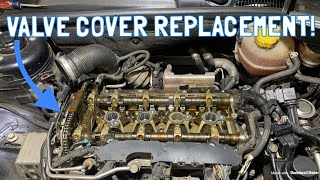

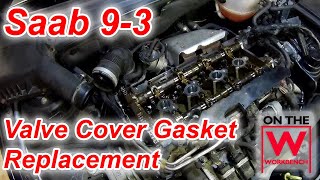

🎬 See a step-by-step guide for replacing the gasket and seals.Frequently Asked Questions (FAQ)
Is this a difficult repair to do myself?
For a moderately experienced DIYer, this job is very manageable. It involves removing the engine cover, airbox, and ignition coils to access the 14 bolts holding the valve cover. The most critical steps are thoroughly cleaning the mating surfaces on the head and cover and torquing the bolts correctly to avoid cracking the plastic cover.

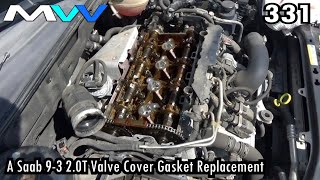

🎬 Follow this video tutorial to ensure a proper DIY installation.Do I need to use sealant (RTV) on the new gasket?
Most high-quality gaskets are designed to be installed dry. However, many mechanics recommend applying small dabs of high-temp RTV sealant in the sharp corners, especially where the timing cover meets the cylinder head, to prevent small leaks in these areas. Some also use a few dots to hold the gasket in the cover's channel during installation.
Should I replace the valve cover too?
In most cases, no. The original plastic valve cover can be reused unless it is physically cracked or warped. Cracks usually happen from over-tightening the bolts during a previous installation or from an impact. Inspect the cover carefully when you have it off.
Are there any recalls for this part?
No, there have been no NHTSA recalls for the valve cover or gasket on the 2005-2011 Saab 9-3. Recalls for this vehicle have focused on issues like airbags and fuel pumps.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90537687 8822041
Set includes one perimeter gasket and four spark plug tube seals. Made of rubber composite. Fits 2.0L B207 4-cylinder turbocharged engines.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
