Subaru Outback Engine Oil Pressure Switch Guide (2005-2011)
Understanding the signs of a failing oil pressure switch and how to choose the right replacement for your Outback.
- A flickering oil light with a full oil level is the top symptom of a bad switch.
- Always check for oil leaks directly from the switch body, a common failure.
- Replacement is simple for DIYers with a 24mm deep socket, but do not overtighten the new switch.
- The OEM part number is 25240AA060; using this number helps ensure you get the correct aftermarket part.
Is Your Outback's Oil Light Lying to You?
The red oil pressure light on your dashboard is one of the most serious warnings you can see. However, on the 2005-2011 Subaru Outback, the switch that controls this light can fail, giving you a false alarm. It can also fail in another way: by leaking oil. Understanding the symptoms helps you know if you have a simple sensor problem or a true oil pressure emergency.
Common Failure Symptoms
A failing oil pressure switch has two primary symptoms:
- Flickering or Illuminated Oil Light: The most common sign is the oil pressure warning light flickering or staying on, even when the engine oil level is correct. This can happen intermittently, especially when the engine is hot or going up or down hills.
- Oil Leak: The switch itself can develop a leak. You might notice oil residue on the sensor or drips on the ground below the engine. The switch is located on the top of the engine block, often under the alternator, making leaks visible from above.
First, Check Your Oil Level
If your oil light comes on, immediately and safely pull over and turn off the engine. Check the oil level using the dipstick. If the level is low, do not drive the car. If the oil level is full, the problem is likely the switch, but it's still wise to have it checked by a mechanic to rule out a more serious issue like a failing oil pump.
Choosing the Right Aftermarket Switch
For a simple part like an oil pressure switch, an aftermarket replacement is often a cost-effective choice. However, quality can vary. The OEM part number for this generation Outback is generally 25240AA060. When shopping, you can think of brands in these tiers:
- OEM-Equivalent Brands: Brands like Standard Ignition (SMP) and Vemo often have a reputation for producing parts that meet or exceed original specifications. They are a reliable choice if you want peace of mind without paying dealership prices.

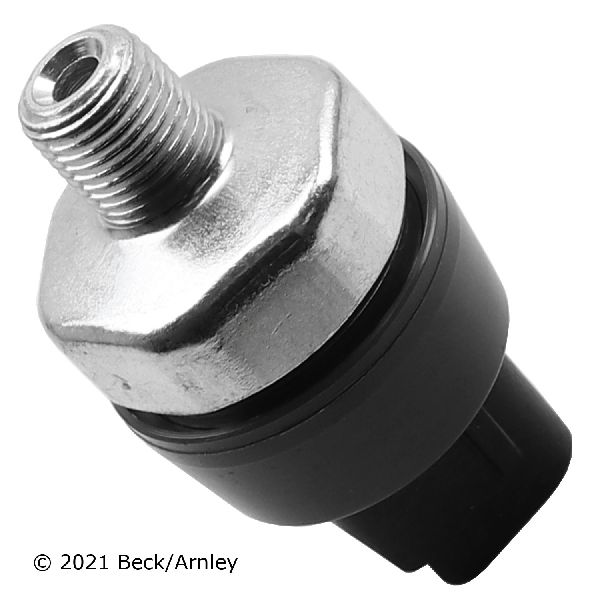

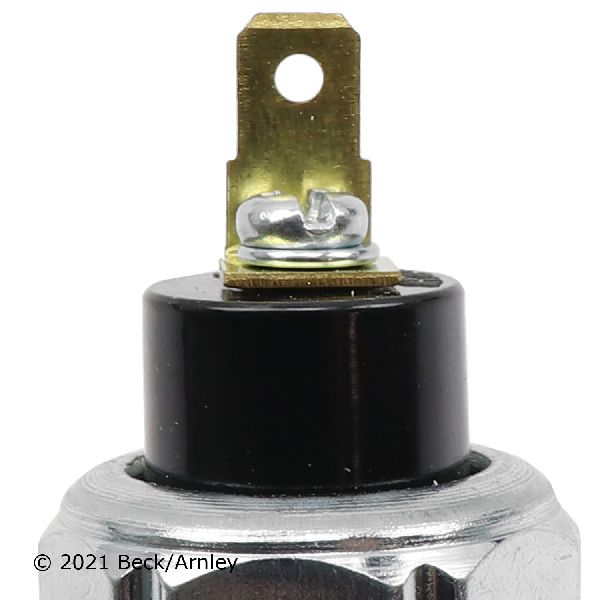

- Standard Replacement Brands: Brands such as Beck Arnley, Facet, and Holstein offer a balance of quality and value. Forum discussions suggest that while Beck Arnley used to be a source for re-boxed OEM parts, quality can now be inconsistent. However, for a simple switch, they are generally considered adequate.
- Value-Oriented Brands: Brands like URO Parts, Global Parts, and True Tech provide the most budget-friendly options. While they can be a good choice for a quick repair, some owners prefer to spend a little more for a part with a longer track record of reliability on Subaru engines.
Pro Tip: Check for TSBs
Subaru has issued Technical Service Bulletins (TSBs) related to the oil pressure switch over the years. TSB 02-162-15R notes a design change to improve the durability of the internal contacts. Another TSB, 02-141-13R, mentions an improved rubber cap to prevent moisture from causing a bad connection. When buying a new part, it's beneficial to get one that incorporates these updated designs.
Cost of Replacing the Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM | $21 - $35 |
| New Aftermarket | $7 - $33 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Can I replace the oil pressure switch myself?
Yes, this is a very DIY-friendly job for those 🎬 Follow this step-by-step video to install your new switch. with basic tools. The switch is located on top of the engine, though you may need to remove the air intake box or alternator for access. You will need a deep 24mm socket. 🎬 Watch this guide on replacing the oil pressure sender. Be careful not to overtighten the new switch, as this can crack the engine block; a torque of around 17-18 ft-lbs is recommended.
Does the new switch need sealant?
Yes, it is recommended to apply a small amount of thread sealant (like liquid Teflon or Three Bond 1324) to the threads of the new switch before installation. Be careful not to cover the small hole at the tip of the sensor where oil enters.
Is an oil leak from the switch a serious problem?
Yes. While it may start as a small seep, it can worsen. A significant leak can lead to low oil levels, which can cause catastrophic engine damage. It's best to replace a leaking switch as soon as possible.
My oil light is on, but the switch is new. What's wrong?
If a new switch doesn't solve the problem, you may have a more serious issue. This could be a wiring problem, a clogged oil filter, a failing oil pump, or excessive internal engine wear. It is critical to have a mechanic perform a mechanical oil pressure test to diagnose the real problem.
🎬 Learn how oil pressure switches relate to engine codes.Helpful Videos
Technical Specifications
OEM Part Numbers: 25240AA060
Location: Top of engine block, often under the alternator. Socket Size: 24mm Deep Socket. Thread Type: Tapered Pipe Thread (requires sealant).
