Chevrolet Equinox Mass Air Flow Sensor: A Guide for 2005-2012 Models
A bad Mass Air Flow sensor can cause a rough idle, poor gas mileage, and stalling; here’s how to choose the right replacement.
- Replacement is very easy and a great DIY task, requiring only basic tools and about 15 minutes.
- Before replacing, try cleaning the sensor with dedicated MAF cleaner; this often fixes issues from contamination.
- A P0101 code doesn't always mean a bad sensor; check for air leaks between the sensor and the engine first.
- For reliability, choose an OEM-grade brand like ACDelco, Bosch, or Delphi over the cheapest available option.
Is Your Equinox MAF Sensor Failing?
A dirty or failed Mass Air Flow (MAF) sensor can cause a range of frustrating problems. Because the sensor's readings are so important, symptoms often appear suddenly and can make your vehicle difficult to drive. If you notice any of the following, your MAF sensor could be the culprit.
Common Failure Symptoms:
- Check Engine Light: This is the most common sign. The computer will detect that the MAF sensor's readings are out of the expected range and trigger a trouble code, most often P0101.
- Rough Idle and Stalling: The engine may idle erratically, hunt for a steady RPM, or stall, especially when you're stopped or right after starting the engine.
- Hesitation and Jerking: When you step on the gas, the vehicle might hesitate, stumble, or jerk because the computer can't match the fuel delivery to the airflow.
- Poor Fuel Economy: An incorrect sensor reading often causes the engine to run rich (too much fuel), leading to a noticeable drop in gas mileage.
- Black Smoke from Exhaust: In severe cases of running rich, you may see black smoke from the tailpipe, which is unburned fuel.
First, Try Cleaning the Sensor
Before you buy a new part, it's worth trying to clean your existing MAF sensor. Contamination from dirt or oil (especially from over-oiled aftermarket air filters) is a common cause of failure. You can buy a can of dedicated MAF sensor cleaner at any auto parts store. The process is simple: remove the sensor, spray the cleaner on the delicate internal wires without touching them, and let it dry completely before reinstalling. This inexpensive step often solves the problem.
🎬 Watch: Step-by-step guide to cleaning your Equinox MAF sensor.Choosing the Right Aftermarket MAF Sensor
If cleaning doesn't work, you'll need a replacement. For a critical component like a MAF sensor, brand quality matters. Cheaper, no-name parts can have poor calibration, leading to continued performance issues or a short service life. Here’s a breakdown of available brands:
- Tier 1 (OEM Quality): These brands are often the original equipment manufacturers for GM or are known for equivalent quality. They are the most reliable choice.
- ACDelco: As GM's own parts brand, this is a guaranteed fit and function.
- Bosch, Delphi, Hitachi: These are top-tier electronics suppliers with excellent reputations for quality and reliability.
- Tier 2 (Trusted Aftermarket): These brands offer a good balance of quality and price, and are a solid choice for most repairs.
- NGK, Spectra, Standard Ignition (SMP), Walker Products: All are well-regarded names in the aftermarket with a history of producing dependable parts.
- Tier 3 (Economy): These brands focus on affordability. They can be a good option for a tight budget, but quality can be more variable.
- Cardone, DriveWire, Skyward: These brands meet a price point, with Cardone often offering remanufactured units which can provide good value.
A Note on 2010-2012 Models
For the 2010-2012 Equinox, particularly with the 2.4L engine, the Intake Air Temperature (IAT) sensor is integrated into the MAF sensor assembly. This means you are replacing both components at the same time. Ensure the part you order is listed as compatible with your specific year and engine.

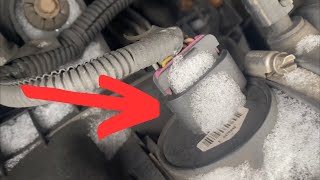

🎬 See how to locate and replace the integrated IAT/MAF sensor.Cost of Replacing a MAF Sensor on a 2005-2012 Equinox
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $51 - $156 |
| New OEM (ACDelco) Part | $120 - $200+ |
| Remanufactured Part | $60 - $120 |
| Shop Labor | $50 - $125 |
Frequently Asked Questions
Can I just unplug a bad MAF sensor to make my car run better?
Unplugging the MAF sensor will force the engine computer into a default or "limp" mode, where it uses pre-set values instead of live sensor data. While this might make a stalling car drivable enough to get to a shop, it is not a fix. The engine will run inefficiently, get poor gas mileage, and have high emissions, and the Check Engine Light will stay on.
Does a new MAF sensor need to be calibrated or programmed?
No, a new MAF sensor for the 2005-2012 Equinox does not typically require special calibration. After installing the new sensor, you should clear the diagnostic trouble codes with an OBD-II scanner. The engine computer will then learn the new sensor's parameters as you drive.
Is a cheap, no-name MAF sensor worth the risk?
While the low price is tempting, it's generally not recommended. Low-quality sensors can be poorly calibrated, sending incorrect data to the computer and causing the same symptoms you were trying to fix. It's better to spend a little more on a reputable brand (like those in Tier 1 or 2) for a part that is critical to engine performance and fuel economy.
My check engine light code is P0101. Does that always mean the MAF sensor is bad?

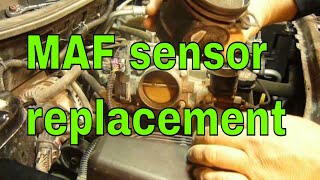

Not always. While P0101 points to a problem with the MAF sensor's performance, the root cause could be something else. A common issue is an air leak in the intake tube *after* the sensor (from a cracked hose or loose clamp). This unmetered air causes the sensor's readings to conflict with other engine data, triggering the code. Always inspect the full air intake path for leaks before 🎬 Watch: Troubleshooting P0101 codes and finding hidden air leaks. replacing the sensor.
Helpful Videos

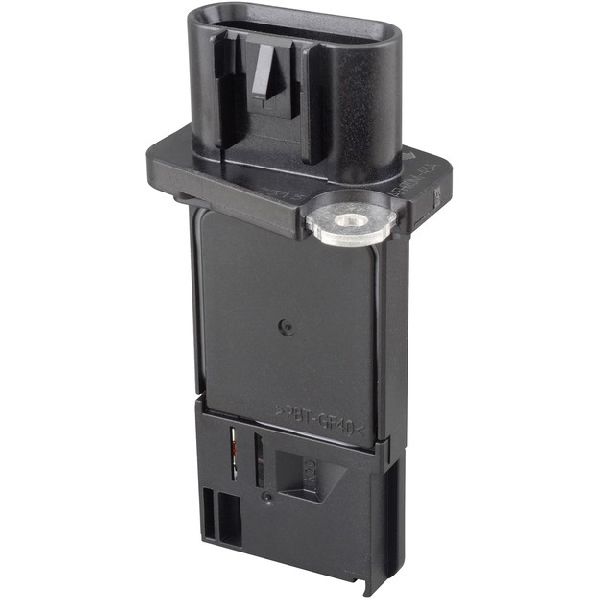

Technical Specifications
OEM Part Numbers: 15865791 213-4222 15911983 213-1617
The MAF sensor for the 2005-2012 Chevrolet Equinox is a 5-pin sensor element that mounts directly into the air intake duct. For 2010-2012 models, this part also includes the integrated Intake Air Temperature (IAT) sensor. The sensor is typically held in place by two T20 Torx or small hex-head screws.
