A Ford Ranger Owner's Guide to Replacing Exterior Door Handles (2005-2012)
If your 2005-2012 Ford Ranger's exterior door handle is loose, sticky, or broken, you're not alone—here's what you need to know to fix it right.
- The original plastic handles are prone to breaking; upgrading to an aftermarket metal handle is a popular and durable solution.
- Replacement is a straightforward DIY job, but you must drill out the original factory rivets.
- There are no recalls for the handle itself, but the failure is a very common problem for this generation of Ranger.
- Brands like Dorman (Motormite) offer reliable replacements, while generic 'Replacement' brands are a cheaper but potentially less durable option.
Is Your Ranger's Door Handle Failing?
The exterior door handles on the 2005-2012 Ford Ranger are known to fail. The original factory handles are made of plastic that can become brittle and break, especially after years of sun exposure and use. Often, the handle itself will crack or the internal pivot points will snap, leaving you unable to open your door from the outside.
Common Symptoms of a Bad Door Handle:
- Handle feels loose or wobbly: This is an early sign that the internal plastic components are wearing out or the mounting points are failing.
- You have to pull the handle hard or in a specific spot: If you find yourself needing to put extra pressure on one part of the handle to get the door to open, the linkage is likely out of adjustment or the handle is flexing due to cracks.
- Handle doesn't spring back: A handle that stays in the 'up' position has a broken or disconnected return spring.
- Visible cracks or a piece has broken off: This is a clear sign the handle has failed and needs immediate replacement.
Known Issue: Factory Rivets
The original door handles on these Rangers are attached to the door with rivets, not bolts. To replace the handle, you must drill out these rivets. 🎬 See this essential walkthrough for removing those factory rivets. Many owners replace them with a nut and bolt combination for easier service in the future.
Choosing the Right Aftermarket Handle
When your original handle breaks, you have a few options. While you could find an OEM (Original Equipment Manufacturer) part, the aftermarket offers good alternatives that are often more affordable and sometimes even better than the original.
Brand Tiers: Motormite vs. Replacement
- Motormite (Dorman): Motormite is a brand under the Dorman umbrella, a well-known name in aftermarket parts. Dorman often improves upon factory designs. For the Ranger, they offer direct-fit plastic handles as well as upgraded all-metal versions that solve the original breakage problem. Owners generally report a good fit and recommend spending a little more for the metal version for long-term durability.
- Replacement: This is often a generic or store brand. These are the most budget-friendly options and will get your door opening again. However, quality can be inconsistent. They are typically made of plastic similar to the original and may not last as long as a higher-quality part. For an older truck, a generic replacement can be a perfectly valid, low-cost solution.
Pro Tip: Upgrade to Metal
Many Ranger owners recommend upgrading to an aftermarket metal door handle. While slightly more expensive, they eliminate the original weak point and are far less likely to break in the future. Dorman and other brands offer these metal upgrades.
How Much Does It Cost?
The cost to replace a door handle on your Ranger is very reasonable, especially if you do the work yourself. The parts are affordable and the job requires basic tools.
| Part / Service | Estimated Cost |
|---|---|
| New OEM Handle | $50 - $100 |
| New Aftermarket Handle (Plastic) | $15 - $40 |
| New Aftermarket Handle (Metal Upgrade) | $25 - $50 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions
Is it hard to replace a Ranger door handle myself?
No, it's a very DIY-friendly job for most people with basic tools. The hardest part is drilling out the factory rivets that hold the original handle in place. You will need to remove the interior door panel to access the handle's linkage rod and mounting points. The entire process takes about an hour.

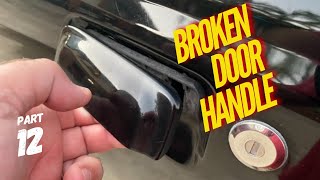

🎬 Watch: Step-by-step guide to replacing your front exterior door handle.Do I need special tools?
You will need a basic screwdriver set, a socket set, a drill with metal drill bits (to remove rivets), and possibly trim removal tools to avoid scratching your door panel. 🎬 Watch this video to see the full exterior handle replacement. If you re-install with rivets, you'll need a rivet gun. However, most people use small bolts with nuts and washers instead.
Do I need to paint the new handle?
Most aftermarket handles come in a textured black plastic finish that matches the original trim on many Rangers, so no painting is needed. If your truck has paint-to-match handles, you can buy a 'paint-to-match' primed handle and have it painted, or simply install the standard textured black version.
Is there a recall on Ford Ranger door handles?
No, there are no specific recalls for the exterior door handles on the 2005-2012 Ford Ranger. There were large-scale Ford recalls for door *latches* on other models, but these did not cover the Ranger's exterior handle itself.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6L5Z1022404CAPTM 2L5Z1022404BAA
Fits front driver or passenger side. Available finishes include textured black, smooth black (paint-to-match), and chrome. Original mounting style is rivet-on; replacements can be installed with bolts and nuts.
