A Toyota RAV4 Owner's Guide to Door Lock Actuators (2005-2012)
If your RAV4's doors won't lock or unlock reliably, the actuator is the most likely cause.
- Door lock actuator failure is a very common problem for 2005-2012 RAV4s; expect others to fail after the first one goes.
- If only one door lock is malfunctioning, the actuator is the most likely culprit. If all doors fail, check fuses first.
- The replacement is a manageable DIY job for those with basic tools, taking about 1-2 hours per door.
- Ensure you buy the correct actuator for the specific door (e.g., Front Driver Side), as they are not interchangeable.
Is This a Known Problem with the 2005-2012 RAV4?
Yes, door lock actuator failure is a very common issue across many Toyota models, including the 2005-2012 RAV4 generation. Owners often report that the actuators fail one by one over time. While there is no official recall for this specific part on the 2005-2012 RAV4, the high failure rate is a well-documented complaint among owners. A Technical Service Bulletin (TSB) exists for the power back door actuator on some later models, but not for the side door actuators on this generation.
🎬 Watch: How to replace the rear liftgate lock actuator.Symptoms of a Failing Door Lock Actuator
When an actuator starts to fail, the signs are usually clear. You will likely notice one door stops responding while the others work fine. Here are the most common symptoms:
- One door won't lock or unlock with the remote or interior switch. This is the most definitive sign. You'll have to lock or unlock that door manually with the key or the physical lock tab. 🎬 See a demonstration of how a failing door latch behaves.
- Slow or weak locking/unlocking. The lock may struggle to move or only move halfway.
- Unusual noises from inside the door. You might hear a buzzing, grinding, or clicking sound when you press the lock/unlock button, but the lock doesn't move.
- Intermittent operation. The lock may work sometimes and not others, a sign the internal motor is wearing out.
Pro Tip: Check the Basics First
If all of your doors fail to lock at once, the problem is likely not the actuators. Before buying parts, check for a blown fuse in the interior fuse box or a weak battery in your key fob. If only one door is failing, it's almost certainly the actuator for that door.
Choosing Your New Aftermarket Actuator
When replacing a failed door lock actuator, you have a choice between original Toyota parts (OEM) and aftermarket parts. For a vehicle like the 2005-2012 RAV4, where the original parts are known to fail, a quality aftermarket part can be a smart and cost-effective choice.
- OEM (Original Equipment Manufacturer): These are the same parts Toyota would install at the dealership. They guarantee a perfect fit but are the most expensive option, and given the history of failure, you might be replacing a faulty design with the same design.
- Premium Aftermarket (e.g., Standard Ignition, AISIN): Brands like AISIN are often the original manufacturer for Toyota, so their parts are essentially OEM-quality without the dealership markup. Standard Ignition is a reputable brand known for producing reliable electronic components. These parts offer a balance of quality and value.
- Price-Point Aftermarket (e.g., Replacement): These are the most budget-friendly options. While they can save you money upfront, their quality and longevity can be inconsistent. However, for an older vehicle, and given that even OEM parts fail, many owners find success with these brands, knowing they might have to replace them again sooner.
Estimated Replacement Cost
The cost to replace a door lock actuator can vary significantly depending on whether you do it yourself or have a shop perform the labor.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Part | $52 - $350 |
| New OEM Part | $250 - $455 |
| Shop Labor | $114 - $250 |
| Total (DIY) | $52 - $350 |
| Total (Shop Installed) | $166 - $605+ |
Frequently Asked Questions
Is replacing a door lock actuator a DIY job?
Yes, for someone with basic mechanical skills. The process involves removing the interior door panel, peeling back a plastic vapor barrier, and unbolting the actuator assembly. You will need a basic tool set including a screwdriver, trim removal tools, and a T30 Torx bit. The most difficult part is often disconnecting the small rods and cables from the old actuator in a tight space. Expect it to take 1-2 hours per door.

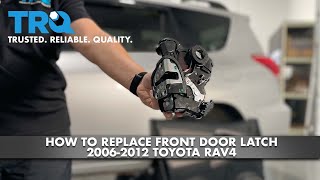

🎬 Watch this step-by-step guide to replacing the front door latch.Do I need to replace all the actuators at once?
No, you only need to replace the one that has failed. However, it is very common for the other actuators to fail soon after the first one does. If you are paying for shop labor, you might save money in the long run by replacing them in pairs (e.g., both front doors).
Does the new actuator need to be programmed?
No. The door lock actuator is a simple electric motor. It does not require any special programming or synchronization with your vehicle. It is a plug-and-play replacement.
Is there a difference between front, rear, left, and right actuators?
Yes, each door has a specific actuator. They are not interchangeable. Be sure to order the correct part for the specific door you are repairing (e.g., Front Driver Side, Rear Passenger Side).
Helpful Videos
Technical Specifications
OEM Part Numbers: 69040-06180 69030-06200 69060-06100 69050-06100
Integrated latch and actuator assembly. Requires T30 Torx bit for removal.
