A/C System O-Ring and Gasket Kit Guide for the 2005-2013 Chevrolet Equinox
Fixing a weak A/C system in your Equinox often starts with small, inexpensive seals.
- A/C system leaks are the most common cause of failure, and o-rings are a frequent culprit.
- Professional service is required to legally evacuate and recharge the refrigerant; this is not a simple DIY job.
- Always replace all disturbed o-rings whenever the A/C system is opened to prevent future leaks.
- Using a quality brand like ACDelco or Four Seasons ensures a better fit and longer-lasting repair compared to some budget options.
Is Your Equinox A/C Blowing Warm Air?
One of the most common reasons for an A/C system to fail in the 2005-2013 Chevrolet Equinox is a refrigerant leak, and the most frequent source of these leaks are old, brittle o-rings. Before you suspect an expensive component like the compressor, it's wise to check for the simple things first.
Symptoms of a Leaking A/C O-Ring
- Weak or No Cold Air: The most obvious sign. As refrigerant leaks out, the system loses its ability to cool the air.
- Visible Oily Residue: Refrigerant is mixed with a special oil to lubricate the compressor. When it leaks, it often leaves a greasy, grimy residue around A/C line connections.
- Green or Yellow Dye: Many systems have a UV dye added to the refrigerant to make leaks easier to find. You might see a bright greenish-yellow stain near hose fittings, the compressor, or the condenser.
- Hissing Sounds: A large enough leak might produce an audible hissing sound from the engine bay for a short time after the engine is shut off.
Professional Equipment Required
Replacing A/C o-rings requires the system to be opened. Federal law and safety regulations require that any existing refrigerant be captured by a special recovery machine before work begins. After the repair, the system must be put into a deep vacuum to remove air and moisture before being recharged with the precise amount of refrigerant. This is not a job that can be done with a simple DIY recharge can from an auto parts store.

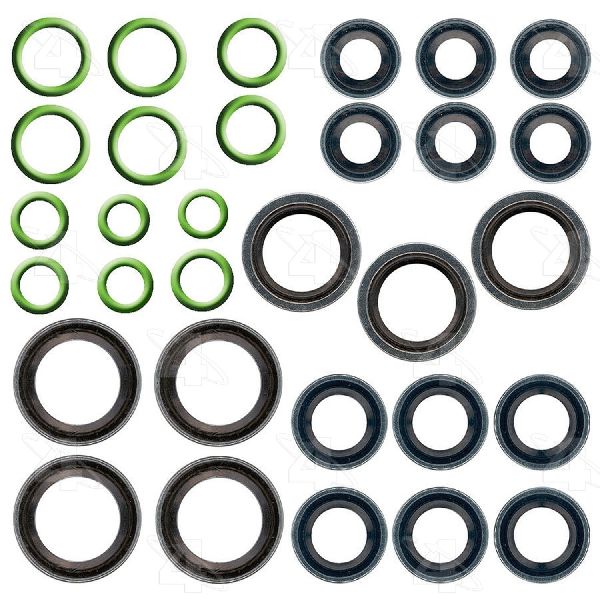

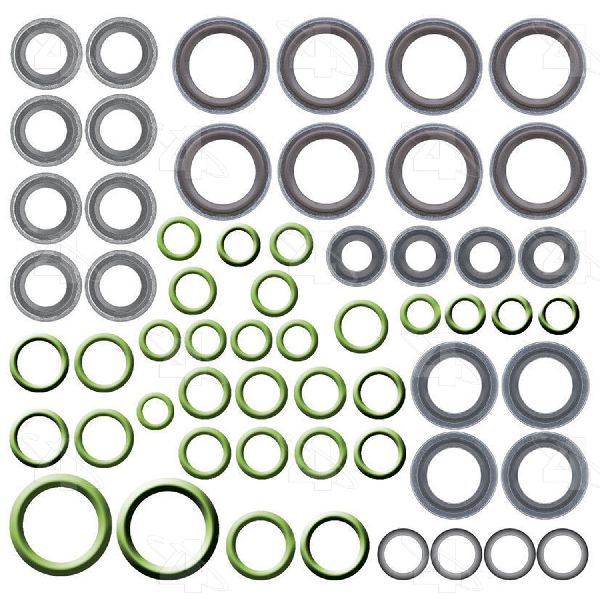

Choosing the Right Aftermarket O-Ring Kit
When the A/C system is opened for any repair, like replacing a compressor or condenser, it is standard practice to replace all the o-rings and gaskets on the components being serviced. For a few extra dollars, it prevents the risk of an immediate leak from an old, disturbed seal. Here’s a look at the available brand tiers.
Brand Quality Tiers
- OEM-Equivalent (ACDelco): As General Motors' own parts brand, ACDelco is the closest you can get to the original factory seals. They offer a guaranteed fit and are made from the correct HNBR (Hydrogenated Nitrile Butadiene Rubber) material designed to withstand the refrigerant and temperatures in your Equinox's system. This is the top-quality choice.
- Premium Aftermarket (Four Seasons): Four Seasons is a highly respected brand that specializes in climate control parts. Their o-ring and gasket kits are trusted by many professional shops and are considered a reliable, high-quality alternative to OEM parts. They provide excellent performance and fit for the 2005-2013 Equinox.

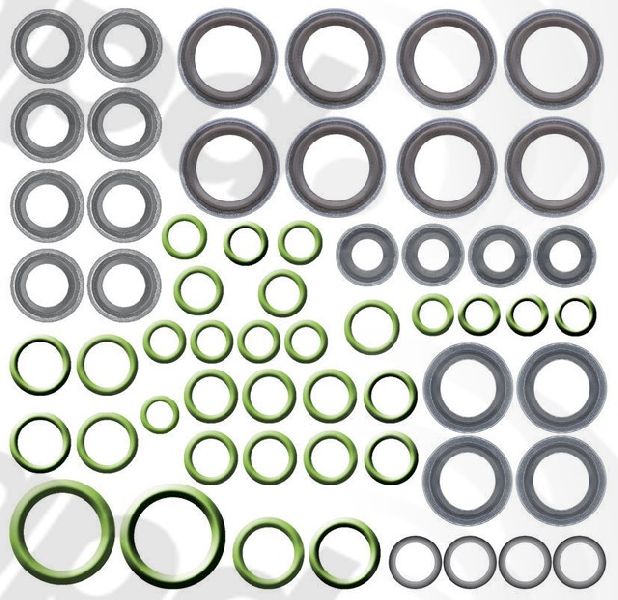

- Standard Aftermarket (Global Parts): Brands like Global Parts (GPD) or UAC offer a more budget-friendly option. While functional, some professional installers and DIYers have noted occasional fitment issues with economy brands, where the o-ring thickness may differ slightly from the original. They can work, but careful installation and inspection are key to ensure a proper seal.
Pro Tip: Always apply a thin coat of A/C PAG oil to new o-rings before installation. This lubricates the seal, allowing it to seat correctly without tearing or pinching as you tighten the connection.
Cost to Replace A/C O-Rings on a 2005-2013 Equinox
The cost is dominated by labor, not the parts. The kit itself is inexpensive, but the process of evacuating and recharging the system is what you pay a shop for.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket O-Ring Kit | $26 - $37 |
| Shop Labor (Evacuate, Replace Seals, Recharge) | $200 - $400 |
| Total Estimated Cost | $226 - $437 |
Note: Labor costs can vary significantly based on your location and the specific seal that needs replacement, as some are harder to access than others.
Frequently Asked Questions (FAQ)
Can I replace the A/C o-rings myself?
While physically unbolting a line and swapping a seal is simple, doing it correctly and legally is difficult for a DIYer. You must have the system professionally evacuated before opening it and vacuum-tested and recharged after. Attempting to do this without the proper equipment will fail and is harmful to the environment.
Should I replace just the one leaking o-ring?
It is highly recommended to replace all the seals on any lines or components you disconnect. The cost of a full o-ring kit is minimal, and replacing them all at once provides peace of mind and prevents you from having to pay for another A/C service if a different old seal fails a month later.
Are there any recalls for A/C leaks on the 2005-2013 Equinox?
No, there are no specific recalls from the NHTSA for A/C system o-rings or refrigerant leaks on the 2005-2013 Chevrolet Equinox. Leaks from aging seals are considered a normal maintenance issue.
My Equinox is a 2009. Does it use the same parts as a 2010?
The 2005-2009 (first generation) and 2010-2013 (second generation) Equinox are different vehicles. While many o-ring sizes are standard across the industry, you must verify that the kit you are buying is specified for your exact year to ensure you get all the correct seals for your vehicle's specific A/C line and component configuration.
Technical Specifications
OEM Part Numbers: 19257342 1532637
Material: HNBR (Hydrogenated Nitrile Butadiene Rubber)
