Choosing Spark Plug Wires for Your 2005-2014 Corvette
Don't let worn-out wires compromise the power and smoothness of your C6 Corvette's LS engine.
- Heat is the biggest enemy of spark plug wires in a C6 Corvette; prioritize wires with high-temperature silicone boots and insulation.
- Aftermarket performance wires from brands like MSD, Taylor, and NGK are a popular and functional upgrade, especially with headers.
- Ensure new wires 'click' into place on both the coil and spark plug to prevent them from coming loose, a known issue.
- Always replace spark plug wires as a full set to ensure consistent performance and avoid future failures.
Signs of Failing Spark Plug Wires on a C6 Corvette
The high-performance nature of the Corvette's LS engines generates significant heat in the engine bay. This heat is the primary enemy of spark plug wires, causing the insulation to break down and the boots to become brittle over time. A common issue for C6 owners is a wire coming loose from the coil or spark plug, leading to immediate performance problems. When your spark plug wires start to fail, you'll notice distinct symptoms.
🎬 Watch this guide to identify common signs of failing wires.Choosing the Right Aftermarket Wires
For the C6 Corvette, aftermarket spark plug wires are often considered an upgrade over the stock ACDelco parts, especially for modified cars or those with aftermarket headers. Heat resistance is the most important factor. Look for wires with high-temp silicone boots and insulation to protect against the engine's heat.
Brand Tiers for Your Corvette

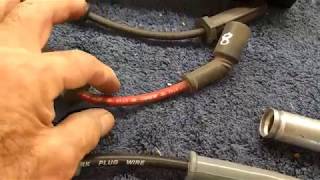

- Premium Performance (Recommended): Brands like MSD, Taylor Cable, NGK, and Magnecor are highly regarded in the Corvette community. They often feature thicker 8.5mm+ wires, lower resistance for a stronger spark, and superior heat shielding. 🎬 See a side-by-side comparison of OEM and MSD performance wires. Many owners also report excellent results with Firecore50 wires, noting their quality construction and secure fit. These are excellent choices, especially if you have aftermarket headers which produce more heat close to the wires.

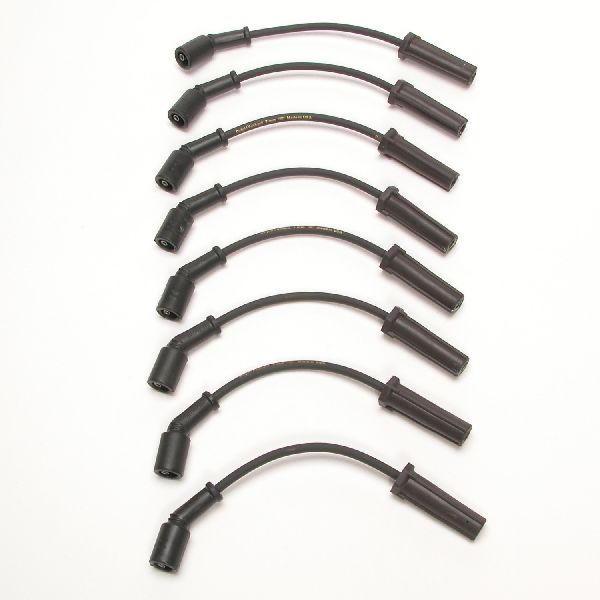

- OEM-Quality Replacements: ACDelco is the original equipment manufacturer and provides a reliable, direct-fit replacement. Brands like Delphi and Standard Motor Products (SMP) offer similar quality and are a good choice if you want to maintain factory performance and appearance.
- High-Value Options: While brands like Granatelli promise performance gains through near-zero resistance, the benefits for a stock or lightly modified Corvette are often debated and may not be worth the high cost. Many owners feel that a quality set of standard-resistance wires from a reputable brand provides more reliable performance without the risk of electrical interference.
Pro Tip: Heat is the Enemy
When installing new wires, especially with aftermarket headers, consider adding protective heat shield sleeves. These slide over the spark plug boot and wire, reflecting radiant heat and dramatically extending the life of your new wire set. Also, applying a small amount of dielectric grease inside the boots helps with installation, sealing, and future removal.
Known Issues, Recalls, and TSBs
There are no specific recalls from the NHTSA for spark plug wires on the 2005-2014 Corvette. However, General Motors has issued Technical Service Bulletins (TSBs) for newer models, including the 2014 Corvette, regarding loose spark plug wires from the factory causing a misfire (DTC P0300). This highlights a known issue where wires can pop off the coil pack or spark plug. When installing new wires, ensure you feel and hear a distinct "click" to confirm they are fully seated.
🎬 Follow this step-by-step video to change your Corvette's wires.Frequently Asked Questions (FAQ)
Do I really need expensive performance wires for my stock Corvette?
For a stock daily driver, quality OEM-style wires from ACDelco or NGK are perfectly fine. The main reason Corvette owners upgrade is for increased heat resistance and durability, especially if they have headers or live in a hot climate. While some brands claim horsepower gains, these are typically minimal on a stock engine.
How often should I replace my spark plug wires?
There is no strict interval, but a general guideline is to inspect them with every spark plug change (roughly every 60,000 to 100,000 miles). Replace them if you see any visible damage like cracks, melting, or if you are experiencing misfire symptoms. Given the heat in the C6 engine bay, proactive replacement is a good idea.
What does the wire diameter (e.g., 8mm, 8.5mm) mean?
A larger diameter, like 8.5mm or 10mm, generally indicates thicker insulation. This provides better protection against heat and helps prevent voltage from arcing to the engine block, ensuring more energy reaches the spark plug. It doesn't necessarily mean more power, but it does mean more durability.
Can I replace just one bad wire?
It is highly recommended to replace spark plug wires as a complete set. If one wire has failed due to age and heat, the others are likely in similar condition and will fail soon. Replacing them all at once ensures consistent performance and reliability.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9206X 748RR
The C6 Corvette uses a coil-on-plug ignition system where short spark plug wires connect the coil pack (located on the valve cover) to the spark plug for each cylinder. Wires vary in length depending on the cylinder. Aftermarket wires are commonly available in 8mm, 8.5mm, and 10mm diameters, with larger sizes offering more heat insulation.
