A Guide to the Starter Motor on Your 2005-2014 Ford E-350 Super Duty
Don't get stranded by a no-start. Understand your E-350's starting system and choose the right replacement starter.
- A no-crank, no-start situation where the lights still work is a primary symptom of a bad starter.
- The tight engine bay of an E-350 can cause 'heat soak'; a high-torque starter from a brand like Powermaster can solve this issue.
- Replacement is a manageable DIY task, but access to the starter on the lower passenger side is tight.
- Always confirm your battery is healthy before replacing the starter; many symptoms overlap.
Is Your E-350 Starter Failing?
A bad starter can leave you stranded. Because these vans are often used for work, a no-start condition is more than an inconvenience—it's a loss of time and money. It's important to recognize the warning signs before it fails completely. Often, a starter problem can be confused with a weak battery. If you've tested your battery and it's holding a proper charge, the starter is the next component to inspect.
Symptoms of a Bad Starter

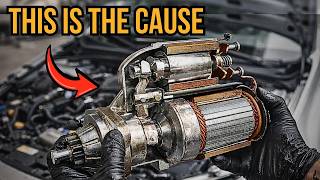

🎬 Watch this video to see common signs of starter failure.- No Crank, No Start: You turn the key, the dashboard lights come on, but the engine doesn't turn over at all. You may hear a single, solid click, or no sound at all.
- Slow or Labored Cranking: The engine turns over much slower than usual, making it sound sluggish and weak. This can be especially noticeable in cold weather.
- Grinding or Whirring Noise: If you hear a grinding sound when trying to start the engine, it could mean the starter's gear is not engaging correctly with the engine's flywheel. A whirring noise after the engine has started could mean the starter is not disengaging.
- Intermittent Starting: The van starts perfectly one day but refuses to crank the next. This inconsistency is a classic sign of a starter with worn internal components.
- Smoke or Burning Smell: Visible smoke or a burning smell coming from the engine area during startup is a critical sign. This indicates the starter is overheating and drawing too much electrical current, which can damage wiring.
Heat Soak in E-Series Vans
The tight engine compartment of the E-350 can lead to a condition called "heat soak." After a long drive, the starter gets very hot. This heat increases electrical resistance, which can cause the starter to crank slowly or not at all until it cools down. A high-torque aftermarket starter can often overcome this issue.
Choosing a New Aftermarket Starter
When replacing your starter, you have options outside of the expensive OEM (Original Equipment Manufacturer) part. Aftermarket parts offer a range of price points and features. For the E-350, which works hard, investing in a quality aftermarket part is a smart move.
- Standard Replacement (MPA): 🎬 Learn more about the manufacturing of quality-built aftermarket starters. Brands like MPA (Motorcar Parts of America) offer new and remanufactured starters that are designed to meet or exceed original specifications. They are a reliable, cost-effective choice for a daily driver or work van under normal conditions.
- High-Torque / Performance (Powermaster): Powermaster is known for producing high-torque starters that provide more cranking power than stock units. This is an excellent upgrade for E-350s that operate in very cold climates, have high-compression engines, or suffer from heat soak issues. Owners report that Powermaster starters crank the engine faster and more reliably.
New vs. Remanufactured: A new aftermarket starter is made with all-new components. A remanufactured starter is an original OEM core that has been rebuilt with new wear-and-tear parts like brushes and bushings. Both are viable options, but new units often come with longer warranties and provide extra peace of mind.
How Much Does a Starter Replacement Cost?
The cost depends on whether you do the work yourself or hire a professional. The starter is located on the lower passenger side of the engine, but access can be tight.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Starter | $89 - $342 |
| Shop Labor | $95 - $140 |
| Total Professional Replacement | $313 - $425 |
Frequently Asked Questions
Can I replace the E-350 starter myself?
Yes, this is a feasible DIY project for someone with moderate mechanical skill. 🎬 Follow this step-by-step guide to replace your E-350 starter. The main challenge is the tight access under the van. You will need a good socket set with extensions, a torque wrench, and jack stands for safety. The job typically takes about 1-2 hours. Always disconnect the negative battery terminal before you begin to avoid dangerous electrical shorts.
Is it my battery or my starter?
This is the most common diagnostic question. If your lights are bright and accessories work, but the engine won't crank, the starter is a likely culprit. If the lights dim significantly when you try to start it, or you hear a rapid clicking sound, the battery is likely weak and doesn't have enough power for the starter. A simple test is to try jump-starting the vehicle. If it starts right up with a jump, your problem is almost certainly the battery or charging system, not the starter.
Are there any recalls or TSBs for the starter?
There are no direct recalls for the starter motor itself on the 2005-2014 E-350 Super Duty. However, a related recall (NHTSA 18V-548) was issued for some Ford vehicles for improperly tightened starter motor cable nuts, which could increase the risk of an electrical arc or fire. While this may not apply to all vans in this year range, it highlights the importance of ensuring all electrical connections are clean and tight during installation.
Do I need a special starter for my V10 or diesel engine?
Yes, you must use a starter that is specified for your exact engine (e.g., 5.4L V8, 6.8L V10, or diesel). Different engines require starters with specific mounting patterns, gear teeth, and torque ratings. Using the wrong starter can result in it not fitting, not working, or even damaging the engine's flywheel.
Helpful Videos

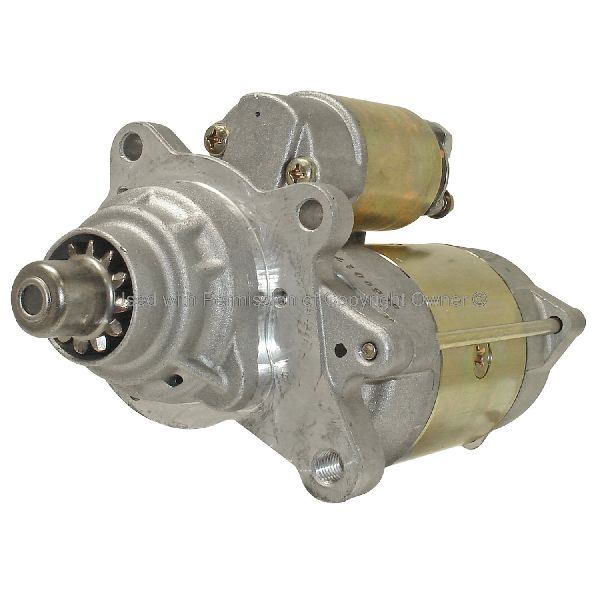

Technical Specifications
OEM Part Numbers: LC3Z-11002-A DL3Z11002B SA-933
The starter for a 2005-2014 Ford E-350 Super Duty is typically a 12-volt, clockwise rotation motor. It is often a Permanent Magnet Gear Reduction (PMGR) type with 12 teeth on the drive gear. Power rating is around 1.2 kW to 1.4 kW, but high-torque versions will be higher. Always verify fitment by your specific engine (5.4L V8, 6.8L V10, or diesel).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
