Ford Mustang Power Steering Pressure Switch Guide (2005-2014)
Fixing power steering leaks and erratic engine idle on your S197 Mustang often starts with this simple sensor.
- A leaking power steering pressure switch is a common failure on 2005-2014 Mustangs and should be fixed to prevent pump damage.
- Engine stalling or a rough idle when turning the wheel is a classic symptom of an electrical failure in the switch.
- The Check Engine Light with code P0551 often points directly to a problem with this sensor's circuit.
- Aftermarket brands like Dorman and Standard Ignition are cost-effective and reliable options for this repair.
Is Your Mustang's Power Steering Switch Failing?
A bad power steering pressure switch on a 2005-2014 Mustang can cause some confusing problems. The most common issue is a power steering fluid leak. You might see drips of fluid on the ground under the engine bay. The switch itself can leak fluid right through its plastic housing or the seal where it screws into the power steering line.
Another major symptom is a problem with your engine's idle. When the switch fails, it can't tell the computer to adjust the engine speed when you turn the wheel. This can cause the engine to stall, run rough, or the RPMs to dip very low when you're turning in a parking lot. You might also notice the idle surging up and down for no reason. In some cases, a failed switch will turn on the Check Engine Light and store a trouble code like P0551.
🎬 See how to diagnose and repair a P0551 code.Choosing the Right Aftermarket Switch
For the S197 Mustang, you don't necessarily need to buy an expensive OEM (Original Equipment Manufacturer) part from a Ford dealer. Aftermarket brands offer a reliable and cost-effective solution for this specific component. Brands like Dorman and Standard Ignition (Standard Motor Products) are common replacements that meet original specifications. Since this is a simple electronic switch, the quality of these established aftermarket brands is generally sufficient for a long-lasting repair without the high cost of an OEM part.
Cost of Replacing a Power Steering Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New OEM (Ford) | $55 - $85 |
| New Aftermarket (Dorman, Standard) | $64.92 - $97.12 |
| Shop Labor | $100 - $175 |
No Recalls for This Part
There have been Ford recalls related to power steering on Mustangs, but they concern the newer Electric Power Assisted Steering (EPAS) systems, not the hydraulic system in 2005-2014 models. There are no active recalls or technical service bulletins (TSBs) for the power steering pressure switch on this generation of Mustang.
Frequently Asked Questions
Where is the power steering pressure switch located on a 2005-2014 Mustang?

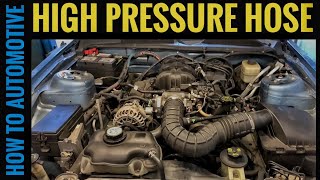

You can find the switch underneath the car. It is screwed into one of the metal high-pressure 🎬 Watch this video to see the power steering line layout. power steering lines that run near the engine and steering rack. It will have a small electrical connector plugged into it.
Can I replace this switch myself?
Yes, this is a DIY-friendly job for someone with basic tools. The most difficult part is often getting the old sensor to break loose, as it can be very tight. You will need a wrench (a crow's foot wrench can be helpful), a catch pan for fluid, and some fresh power steering fluid. The job typically takes about 30 minutes to an hour.

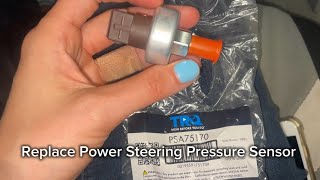

🎬 Watch this step-by-step guide to replacing the pressure sensor.What happens if I don't replace a bad switch?
If the switch is leaking, you will continuously lose power steering fluid, which can damage the power steering pump. If the switch is failing electronically, you will continue to have issues with the engine stalling or idling erratically at low speeds, which can be unsafe in traffic or when parking.
Do I need to bleed the power steering system after replacing the switch?
Yes. After replacing the switch and topping off the fluid, you need to bleed any air out of the system. With the engine running, slowly turn the steering wheel all the way to the left and then all the way to the right a few times. This will push any trapped air into the reservoir. Check the fluid level again and add more if needed.
Helpful Videos
Technical Specifications

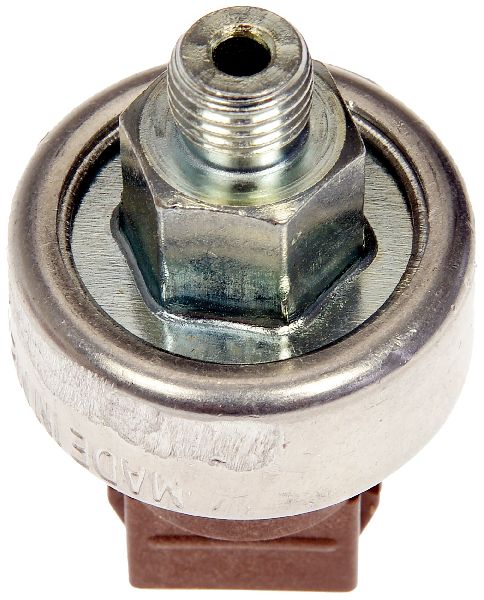

OEM Part Numbers: F5RZ-3N824-A 1W4Z3N824DA
This is a 2-terminal switch that installs on the high-pressure hydraulic power steering line. It signals the PCM to adjust idle speed based on system pressure.
