A Guide to the GMC Yukon Wiper Linkage for 2005-2014 Models
If you hear the wiper motor but your wipers aren't moving correctly, the linkage is the likely culprit.
- Crucially, verify your Yukon's year; 2005-2006 and 2007-2014 models use different, non-interchangeable wiper linkages.
- The most common symptom of failure is hearing the wiper motor run while the wipers themselves don't move or move erratically.
- Replacing the complete linkage assembly is the standard, recommended repair for a reliable and long-lasting fix.
- A wiper arm puller tool is a highly recommended, inexpensive tool that prevents damage to the wiper arms or transmission during removal.
A Critical Year-Range Split: 2005-2006 vs. 2007-2014
Before ordering, you must know that the wiper linkage for the GMC Yukon is different between the 2005-2006 and 2007-2014 model years. These parts are not interchangeable. The 2007 model year marked a new generation (GMT900 platform), and the wiper system was redesigned. Always confirm your vehicle's year to ensure you are buying the correct part.
Symptoms of a Failing Wiper Linkage
When a wiper linkage fails, it's usually not subtle. The most common sign is that you can hear the wiper motor running, but the wipers on the glass don't move, move incorrectly, or only one arm moves. This happens because the connection between the motor and the arms is broken. Other common symptoms include:
- Unsynchronized or Erratic Wipers: The wiper arms move out of sync, with one traveling further or faster than the other.
- Wipers Go Off The Windshield: Worn linkage allows the arms to travel beyond their normal range, sometimes hitting the windshield trim.
- Grinding or Popping Noises: Loud clunking, grinding, or popping sounds during operation suggest a pivot point has failed or an arm has disconnected.
- Sputtering or Hesitation: The blades may hesitate or stutter as they move across the glass, a sign the linkage is loose or binding.
Known Issues, Recalls, and TSBs
While GM has issued recalls and special coverage adjustments for similar wiper linkage problems on other SUVs like the Chevrolet Equinox and GMC Terrain, there are no major recalls or Technical Service Bulletins (TSBs) specifically for wiper linkage failure on the 2005-2014 GMC Yukon. The common failure mode on these vehicles involves worn-out plastic bushings or corroded ball joints in the linkage, which often happens from age and use, especially in regions with heavy rain, snow, or road salt.
Choosing the Right Aftermarket Part
For a vehicle of this age, an aftermarket wiper linkage assembly is a cost-effective solution. You do not need to pay premium prices for an OEM part from a dealer. The available aftermarket options provide reliable, direct-fit performance.
- Dorman: A well-known aftermarket brand, Dorman provides direct replacement linkages that are engineered to match the fit and function of the original part. They are a trusted choice for quality and reliability.
- Replacement: This brand offers a budget-friendly alternative for Yukon owners. These parts are designed as direct-fit replacements to restore original functionality without the higher cost of a premium brand name.
The recommended repair is to replace the entire linkage assembly. While some individual bushings might be available, the labor to press out old bushings and install new ones is often not worth it, as other pivot points on the original assembly are likely worn as well.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Assembly | $101.14 - $276.95 |
| Shop Labor | $150 - $250 |
FAQ
Can I drive with a broken wiper linkage?
No. Driving without functional windshield wipers is a critical safety hazard and is illegal in any weather that requires them. You should not operate the vehicle until the wipers are repaired.
Is this a difficult DIY repair?
For a mechanically inclined person with the right tools, this is a manageable DIY job that takes 1-2 hours. The main steps involve removing the wiper arms, the plastic cowl panel at the base of the windshield, and then unbolting the old assembly. A special wiper arm puller tool is highly recommended to remove the arms without causing damage.
What's the difference between a bad linkage and a bad wiper motor?
The clearest sign of a bad linkage is hearing the motor whir when you turn the wipers on, but the arms don't move correctly. If you hear nothing at all, or the wipers move very slowly and all speeds don't work, the problem is more likely the electric motor itself.
Why did my wiper linkage fail?
The most common cause is simple wear and tear on the plastic bushings at the pivot points. This can be accelerated by turning the wipers on when the blades are frozen to the windshield, which puts immense stress on the linkage and can cause parts to bend or break.
Technical Specifications
OEM Part Numbers: 15812089 (For 2005-2006 Models) 88958406 (For 2005-2006 Models) 23328193 (For 2007-2014 Models)

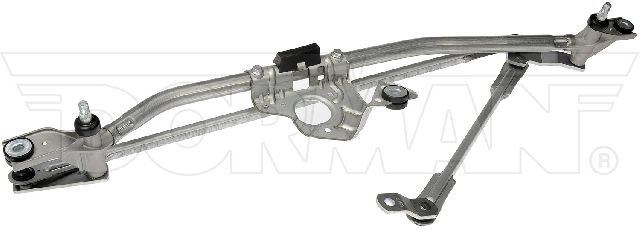

The assembly consists of steel or aluminum arms, plastic bushings, and pivot points. It is a one-piece assembly that bolts to the vehicle's firewall, underneath the plastic cowl cover. The wiper motor is a separate component that attaches to the linkage.
