Lincoln Navigator Starter Motor Guide for 2005-2015 Models
Having trouble starting your Navigator? This guide explains common starter problems and your replacement options.
- Always test the battery and check for corrosion on the terminals before assuming the starter is bad.
- A rapid clicking sound is a classic symptom of a failed starter motor on the Navigator.
- Replacement is moderately difficult due to a hard-to-reach top bolt, but it is possible for a skilled DIYer.
- New aftermarket starters from reputable brands offer a reliable and cost-effective solution for this vehicle.
Is Your Navigator's Starter Failing?
A bad starter can leave you stranded. Recognizing the signs early can save you a major headache. The most common issue is a "no-crank, no-start" situation where all your lights and radio work, but the engine does nothing when you turn the key. You might also hear a single loud click or a series of rapid clicks, which is often the starter solenoid trying but failing to engage the motor. Sometimes, a failing starter will crank the engine very slowly, as if the battery is weak.
Pro Tip: Check Your Battery First!
🎬 Watch: Locate your starter fuse and relay firstMany starter symptoms can also be caused by a weak or dead battery, or even corroded battery terminals. Before you replace the starter, make sure your battery is fully charged and the connections are clean and tight. A simple jump-start test can help diagnose the issue: if the vehicle still won't crank with a jump, the starter is the likely culprit.
Choosing a New Aftermarket Starter
When it's time for a replacement, you have a few options. For a vehicle like the 2005-2015 Navigator, a new aftermarket starter offers a great balance of quality and value. Unlike some critical engine components, the starter is a robust part where aftermarket manufacturers have a long track record of producing reliable units.
- OEM (Motorcraft): Motorcraft is Ford's official parts brand. This is the same part your Navigator came with from the factory. It guarantees perfect fit and performance but is usually the most expensive option.
- Premium Aftermarket (ACDelco, MPA): Brands like ACDelco and MPA (Motorcar Parts of America) produce high-quality new and remanufactured starters that are designed to meet or exceed original equipment (OE) specifications. These are excellent choices that often come with strong warranties and save you money compared to OEM.
- Value-Oriented Aftermarket: There are many other brands available that offer functional replacements at a lower cost. While they can be a good budget option, they may not have the same long-term durability or warranty support as premium brands.
Known Issues, Recalls, and Service Bulletins
For the 2005-2015 model years, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from the NHTSA directly related to starter motor failure. Most starting problems on these vehicles are due to normal wear and tear on the starter, battery, or related wiring. Some owners have noted that corroded battery cable ends can cause starting issues, which can be mistaken for a bad starter. There have been recalls for other electrical issues on Navigators, but none target the starter motor itself for this generation.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Starter | $101 - $197 |
| Remanufactured Starter | $140 - $210 |
| New OEM (Motorcraft) Starter | $313 - $334 |
| Shop Labor for Installation | $122 - $179 |
Frequently Asked Questions
Is it hard to replace the starter on a 2005-2015 Navigator?

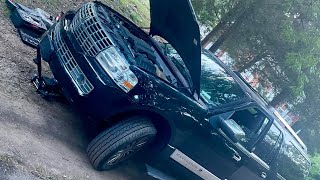

Replacement is considered moderately difficult for a DIY mechanic. Access can be tight, and one of the three mounting bolts is notoriously hard to reach 🎬 See this clever hack for reaching difficult mounting bolts from underneath. It often requires specific combinations of extensions and sockets. If you are not comfortable working in tight spaces or do not have a good set of tools, it may be best to leave this job to a professional.

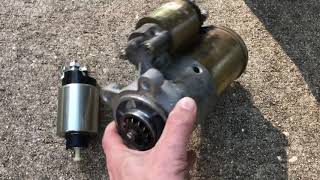

🎬 Watch: Step-by-step starter replacement walkthrough for this engineMy Navigator just clicks. Is it always the starter?
Not always. A rapid clicking sound strongly points to a starter issue, where the solenoid engages but the motor doesn't turn. However, a single click could also be the solenoid. More importantly, a weak or dead battery is the most common cause of starting problems, so you should always test the battery and clean the terminals before replacing the starter.
Should I buy a new or remanufactured starter?
Both are good options. A quality remanufactured starter from a reputable brand like Bosch or Carquest has been rebuilt to factory specifications with new wear components and is fully tested. A new aftermarket starter from a brand like TYC or MPA is built from all-new components. For this vehicle, the choice often comes down to price and warranty, as both new and remanufactured units from good brands are reliable.
Can a bad starter drain my battery?
Yes, a failing starter can contribute to battery drain. If the starter has an internal short or is struggling to turn the engine, it can draw excessive current from the battery, causing it to drain faster than normal. If you find yourself needing frequent jump-starts, it's a good idea to have both the battery and the starter checked.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9L3Z-11002-A 9L34-11000-AB 6L3Z-11002-AARM

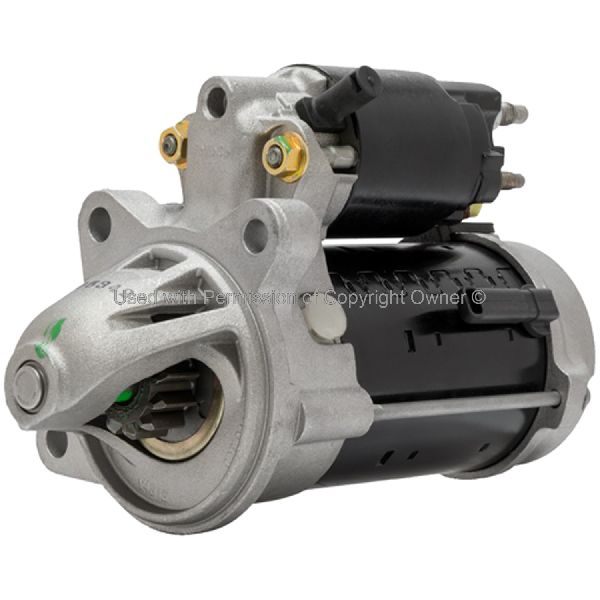

The 2005-2015 Lincoln Navigator with the 5.4L V8 engine uses a 12-volt, permanent magnet gear reduction (PMGR) starter. It typically has a 12-tooth or 13-tooth pinion gear.
