A Guide to Replacing the Starter on Your 2008-2016 BMW 535i
Everything you need to know before tackling the difficult starter replacement on your E60 or F10 BMW 535i.
- Starter replacement is a difficult, 4-6 hour job because the part is located under the intake manifold.
- Always test the battery and check the engine ground strap first, as they can mimic starter failure symptoms.
- Verify the correct part number for your VIN, as starters differ for cars with Auto Start/Stop (post-03/2011 models).
- Always use new aluminum starter bolts and new intake manifold gaskets for this repair.
Is Your BMW 535i Starter Failing?
A failing starter on a BMW 535i can leave you stranded. Because the job is so labor-intensive, you need to be sure the starter is the real problem. Before you blame the starter, always test your battery and check for corroded or loose battery cables and ground straps. A bad engine ground strap is a common issue on these cars and can cause the exact same no-start symptoms.
Key Generation Differences
The 2008-2016 535i spans two generations, the E60 (2008-2010) with the N54 engine and the F10 (2011-2016) with the N55 engine. While the starter's function is the same, the replacement procedure and part numbers can differ slightly. Notably, F10 models produced after March 2011, especially those with an Auto Start/Stop feature, may use a different, more robust starter. It is critical to verify the correct part number for your specific vehicle's VIN.
Choosing the Right Aftermarket Starter
The original starter on most 535i models was made by Bosch. When choosing a replacement, you have several options that balance quality and cost. Aftermarket parts from reputable OEM (Original Equipment Manufacturer) suppliers are a reliable choice and often identical to the part sold at a dealership, without the high price tag.
Aftermarket Brand Tiers
| Tier | Brands | Quality & Notes |
|---|---|---|
| OEM & Premium Aftermarket | Bosch, Valeo, Denso | Bosch was the original supplier for many of these cars. Valeo is another OE supplier that BMW uses. Denso is a well-regarded OEM that also supplies parts for BMW. These brands offer the highest quality and reliability, often identical to the genuine part. |
| Quality Aftermarket | Remy, BBB Industries | These brands offer a good balance of price and quality. They are established names in the aftermarket and produce reliable starters that meet or exceed original specifications. |
Common Ordering Mistake
Pay close attention to your car's production date and features. F10 535i models built from March 2011 onward, especially those with the Auto Start/Stop function, require a specific starter motor. Always confirm fitment with your VIN before ordering to avoid getting the wrong part for this difficult job.
Known Issues & Recalls
While there have been BMW recalls for starter motors overheating, the specific recalls found do not appear to cover the 2008-2016 535i model years directly, instead focusing on newer models. There are no major Technical Service Bulletins (TSBs) specifically for the starter on this vehicle, but forum discussions are filled with owners experiencing starter failure, often between 80,000 and 120,000 miles. The most common related issue is a faulty engine ground strap, which can cause a no-crank situation and is often misdiagnosed as a bad starter.
Frequently Asked Questions (FAQ)
Is it hard to replace the starter on a BMW 535i?
Yes, this is considered a difficult and time-consuming job. The starter is located under the engine's intake manifold, which must be removed to access it. For an experienced DIYer, it can take 4-6 hours. It is not recommended for beginners.
What tools are needed for a 535i starter replacement?
You will need a comprehensive set of metric sockets, E-Torx (external Torx) sockets (like E12 and E14), extensions, and potentially a swivel or flexible-head ratchet for the hard-to-reach rear bolt. It is also critical to use new, one-time-use aluminum starter bolts and new intake manifold gaskets for reassembly.
Can I use a remanufactured starter?
Yes. Reputable brands like Bosch offer remanufactured starters that are tested to perform as well as new ones. A remanufactured starter from a top brand is a good way to save money without sacrificing reliability. Just be aware that they often require you to send back your old starter as a "core."
My car just clicks once when I try to start it. Is it the starter?
A single, loud click is a classic symptom of a failed starter solenoid. However, it can also be caused by a very weak battery or a poor electrical connection. Always test the battery and check the main cables and ground strap before committing to a starter replacement.

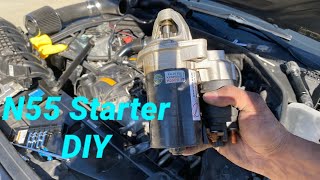

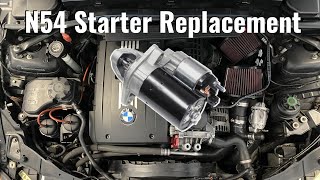

Helpful Videos
Technical Specifications
OEM Part Numbers: 12417631558 12417521116 12412354701 12417616502 12417631559
Location: Under intake manifold. Mounting Bolts: E-Torx, aluminum, one-time use. Common Engines: N54, N55.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
