A Mechanic's Guide to Engine Cylinder Head Bolts for the 2005-2016 Buick LaCrosse
If you're replacing a head gasket on your LaCrosse, understanding the critical role of new head bolts is non-negotiable.
- Head bolts on the 2005-2016 LaCrosse are Torque-to-Yield (TTY) and MUST be replaced whenever the cylinder head is removed.
- This part is almost always replaced as part of a much larger head gasket job; it is not a standalone repair.
- Given the extremely high labor cost of the job, always choose a quality aftermarket brand like Fel-Pro, Elring, or Victor Reinz.
- Proper installation, including surface preparation and following the correct torque sequence and angle, is just as important as the bolts themselves.
Symptoms of Failing Head Bolts
You will likely never diagnose a "failing head bolt." Instead, you will experience the symptoms of a failed head gasket, the repair of which requires replacing the head bolts. If a head bolt fails, it's because it has broken or stretched beyond its limit, causing the head gasket seal to break. Be alert for the following signs:

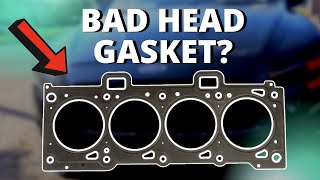

🎬 Watch: How to spot telltale signs of a bad gasket.- Engine Overheating: This is the most common sign. A failed gasket allows hot combustion gases to enter the cooling system or coolant to leak out, causing the engine to run hot.
- White Smoke from Exhaust: Sweet-smelling white smoke coming from the tailpipe indicates that coolant is leaking into the combustion chambers and being burned off.
- Milky or Foamy Engine Oil: If you check your oil dipstick or oil cap and see a milky, frothy substance that looks like a chocolate milkshake, it means coolant is mixing with your engine oil. This is a sign of catastrophic failure and you should not run the engine.
- External Coolant or Oil Leaks: You may see coolant or oil leaking from the seam where the cylinder head meets the engine block.
- Loss of Compression / Misfires: A breach in the gasket can cause a loss of compression in one or more cylinders, leading to a rough-running engine, misfire codes (like P0300-P0306), and a check engine light.
Choosing the Right Aftermarket Head Bolt Set
Since the labor for a head gasket replacement is so expensive, saving a few dollars on cheap, unknown head bolts is a poor decision. The part cost is a tiny fraction of the total bill. Stick with reputable brands known for quality manufacturing.
Premium Brands (OEM Quality or Better)
- Fel-Pro: A long-standing, trusted name in the gasket and sealing industry. Fel-Pro bolts are widely used by professional mechanics and are known for their reliability and adherence to OEM specifications.
- Elring: A major OEM supplier for many car manufacturers, especially European ones. Elring is known for high-quality engineering and materials, and there's a good chance they are the original manufacturer for some GM parts. They are an excellent choice for a critical component like head bolts.
- Victor Reinz: Another top-tier OEM supplier. Like Fel-Pro and Elring, Victor Reinz provides high-quality gasket and sealing solutions and is considered a reliable choice for this job.
Standard / Economy Brands

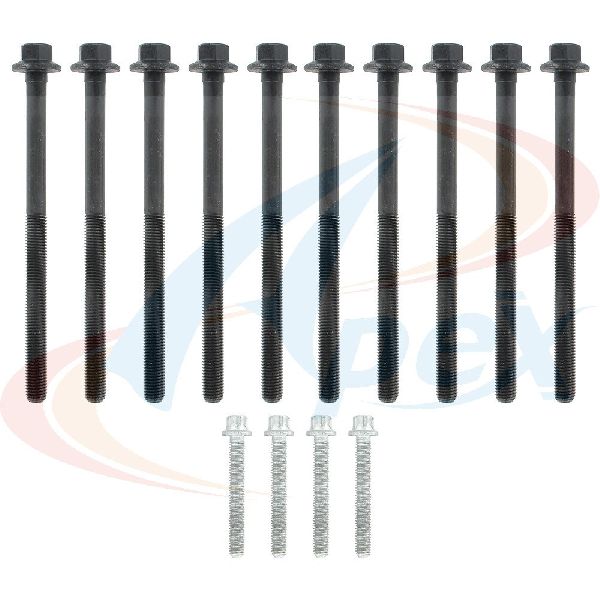

- Apex: Generally considered a more budget-friendly option. While they may perform adequately, for a labor-intensive job like a head gasket replacement, most mechanics would recommend investing in a premium brand for peace of mind.
Cost for Engine Cylinder Head Bolt Set Replacement (as part of a Head Gasket Job)
The bolts themselves are inexpensive compared to the labor required to access them. The costs below reflect the entire head gasket replacement job.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Head Bolt Set | $32 - $147 |
| Associated Parts (Head Gasket Set, Fluids, etc.) | $700 - $900 |
| Shop Labor | $1,400 - $2,100+ |
| Total Estimated Cost | $2,100 - $3,500+ |
Frequently Asked Questions
Do I have to replace the head bolts when I replace my head gasket?
Yes, absolutely. The bolts on all 2005-2016 LaCrosse engines are Torque-to-Yield (TTY), meaning they are permanently stretched during their first use. They cannot provide the correct clamping force if reused and will lead to a repeat failure.
What does "Torque-to-Yield" (TTY) mean?
It means the bolts are tightened in a special sequence that involves an initial torque setting followed by turning the bolt a specific number of degrees (e.g., 90 degrees). This process stretches the bolt into its 'yield' or elastic zone, where it acts like a precision spring, providing a very consistent and high clamping force required for modern engines with aluminum components.
Are there any recalls for head bolt or head gasket issues on the LaCrosse?
There are no widespread formal recalls for head bolt failure on the 2005-2016 LaCrosse. However, GM did issue a customer satisfaction program for some 2017 models with the 3.6L engine due to a potential head gasket manufacturing defect. There are also known issues with intake gaskets and plastic coolant elbows on the 3.8L V6 that can cause coolant leaks.
Can I do this job myself?
This is not recommended for a DIY mechanic. Replacing a cylinder head gasket and bolts is one of the most complex and labor-intensive repairs. It requires a deep teardown of the engine, specialized tools like torque-angle gauges, and a pristine environment for reassembly. Mistakes can easily lead to catastrophic engine damage.

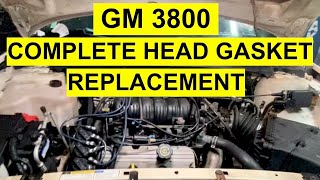

🎬 See this complete head gasket replacement walkthrough for GM engines.Helpful Videos
Technical Specifications
OEM Part Numbers: 11547020 11547584
All engines used in the 2005-2016 Buick LaCrosse (2.4L Ecotec, 3.8L V6, 3.0L V6, 3.6L V6) use Torque-to-Yield (TTY) cylinder head bolts. These are single-use bolts that are permanently stretched during installation. Specific length, diameter, and torque specifications vary by engine model and year.
