Audi A8 Quattro Engine Oil Level Sensor Guide (2005-2017)
Understanding the critical oil level sensor in your A8 Quattro and how to choose the right replacement.
- Your A8 Quattro likely has no dipstick, making this sensor critical for engine health.
- The most common failure symptom is a false 'Oil Minimum' warning on the dash.
- Replacement requires draining the engine oil, so it should be done during an oil change.
- Hella is considered the most reliable aftermarket brand, often being the original equipment supplier.
Is Your Audi A8 Oil Level Sensor Failing?
A faulty oil level sensor on an Audi A8 can be frustrating. Since there's no dipstick, you are relying on the sensor to be accurate. The most common sign of failure is a persistent yellow "Oil Minimum" or "Oil Level Sensor Defective" warning on your dashboard, even when you know the oil level is correct. This warning can be intermittent at first, coming and going, but often becomes constant. In some cases, the MMI screen will simply refuse to show a reading, stating that information is unavailable.
Don't Overfill Your Engine
When the sensor gives a false low-oil reading, the natural instinct is to add more oil. Be very careful. Overfilling the engine can cause serious damage. If you get a low oil warning, it's best to let the car sit on level ground, re-check the MMI reading, and if possible, verify the sensor's accuracy before adding more oil.
Choosing the Right Aftermarket Sensor
When replacing the sensor, you have several options. The quality can vary, and for a part this important, it's wise to choose carefully.
- Tier 1: OEM-Equivalent (Hella): Hella is a major German parts manufacturer that often supplies parts directly to Audi. Choosing a Hella-branded sensor is the closest you can get to a genuine Audi part without the dealership price tag. It is widely considered the most reliable aftermarket option.
- Tier 2: Reputable Aftermarket (Vemo, Standard Ignition): Brands like Vemo and Standard Ignition are well-known in the aftermarket. Vemo is another German brand and can be a solid choice. Standard Ignition offers a wide range of parts, but quality can sometimes be inconsistent depending on the specific component.
- Tier 3: Budget-Focused (URO Parts, Global Parts): Brands like URO Parts often provide the most budget-friendly option. While they can be a good value for less critical components, for a sensor your engine's health depends on, the risk of premature failure or inaccurate readings might be higher. Owner experiences with these brands are mixed.
Pro Tip: Check the Wiring
Before you condemn the sensor, inspect the wiring and connector. The sensor is located on the bottom of the oil pan, exposed to road debris and heat. Wires can become brittle and break, or the connector can become corroded, causing the same symptoms as a failed sensor. A new sensor won't fix a wiring problem.
Cost of Replacing the Engine Oil Level Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $58.50 - $327.03 |
| Shop Labor (including oil change) | $117 - $172 |
| Total Professional Replacement | $175 - $500+ |
Note: The sensor is mounted to the bottom of the oil pan, so the engine oil must be drained to replace it. It is essential to factor in the cost of a full oil and filter change with this job. 🎬 See this walkthrough for replacing the sensor and oil.
Frequently Asked Questions
Why does my MMI say the oil level is unavailable?
For the MMI to display the oil level, the engine must be warm, turned off, and parked on a level surface for at least two minutes to allow the oil to settle in the pan. If you've met these conditions and it still won't read, it could be an issue with the hood latch sensor—the system needs to see that the hood has been opened and closed to reset the reading—or the oil level sensor itself is faulty.

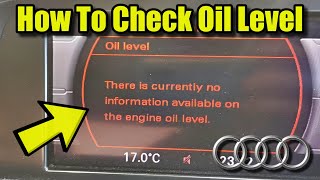

🎬 Watch: Troubleshooting the 'No oil information available' MMI message.I replaced the sensor, but the warning light is still on. What's wrong?
First, double-check the wiring and connector for damage. If the wiring is good, the issue could be a faulty hood latch switch, which prevents 🎬 Watch: How the hood latch switch affects your oil warning. the system from resetting. In some cases, a new sensor from a budget brand may be defective out of the box. Finally, some models may require an adaptation reset using a diagnostic tool after sensor replacement.
Is there a recall on the oil level sensor for the Audi A8?
There are no specific recalls for the engine oil level sensor itself. However, there was a safety recall (NHTSA Campaign ID: 22V178, Audi Recall: 21H7) for 2013-2017 A8 models with the 4.0L engine concerning a blocked oil strainer for the turbocharger, which could trigger an oil warning light. There are also Technical Service Bulletins (TSBs) for issues where the oil minimum warning appears despite the oil level being correct, recommending an updated sensor.
Can I add a physical dipstick to my A8?
For some engine variants, it is possible to purchase an aftermarket or even a genuine Audi workshop dipstick. Many owners choose to do this for peace of mind and to have a reliable, old-fashioned way to double-check the oil level, even with a functioning electronic sensor.
Helpful Videos
Technical Specifications
OEM Part Numbers: 03C907660H 03C907660R 03C907660S 079907660 079907660A
Typically mounted on the bottom of the oil pan with three bolts and has a 3-pin electrical connector.
