Chevrolet Equinox 2005-2017 Engine Oil Pressure Switch: A Complete Guide
Understanding the common failures and replacement options for your Equinox's oil pressure switch.
- An illuminated oil pressure light is a critical warning; stop the vehicle safely and check the oil level immediately.
- The most common failure symptoms are a steady or flickering oil light, an incorrect gauge reading, or a visible oil leak from the sensor itself.
- For 2.4L engines, be aware of TSBs related to oil consumption and PCV issues that can also trigger the oil light.
- A quality aftermarket switch is a viable option, but always confirm the actual oil pressure with a mechanical gauge to rule out a more serious engine problem.
Is a Failing Oil Pressure Switch a Serious Problem?

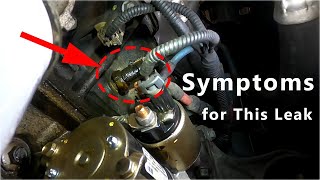

Yes. While the switch itself is a simple, low-cost part, the information it provides is critical. Ignoring its warnings can lead to catastrophic engine failure. A faulty switch can either fail to warn you of a real low-pressure problem, or it can give false warnings, causing unnecessary stress and diagnostic costs. The most common failure is the switch leaking oil through its own housing or electrical connector, which is a clear sign it needs replacement.
"Oil Pressure Low - Stop Engine"
If you see the red oil warning light or a "Stop Engine" message, you should pull over as soon as it is safe and turn off the engine. Driving with confirmed low oil pressure can destroy your engine in minutes. First, check your oil level. If the level is correct, the issue could be the sensor or a more serious mechanical problem. It's best to have the vehicle towed for diagnosis.
Known Issues for 2005-2017 Chevrolet Equinox
Certain Equinox models, particularly those with the 2.4L Ecotec engine, have known issues that can trigger the oil pressure light. While not always the switch's fault, it's important context:
- Special Coverage 14882 (2010-2014 Equinox w/ 2.4L): A plugged PCV orifice in the intake manifold could cause high crankcase pressure, leading to oil leaks. This could eventually cause low oil pressure and trigger the warning light. GM issued a special coverage to repair this for 10 years or 120,000 miles.
- Special Coverage for 2011 Equinox w/ 2.4L: Some 2011 models experienced excessive oil consumption due to piston ring wear. This would lead to low oil levels and trigger the "Oil Pressure Low – Stop Engine" message. 🎬 Watch this video to understand why your Equinox displays this warning.
These issues highlight the importance of verifying the true cause of an oil pressure warning. A simple sensor replacement will not fix an underlying oil consumption or PCV system problem.
Choosing the Right Aftermarket Oil Pressure Switch
When replacing the oil pressure switch, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For a simple component like an oil pressure switch, a quality aftermarket part is often a cost-effective and reliable choice. However, quality can vary between brands.
- Premium Aftermarket (e.g., Standard Ignition, Walker Products): Brands like Standard Motor Products (SMP) and Walker have a long-standing reputation in the aftermarket for producing reliable engine management components that meet or exceed OEM specifications. They are often a trusted choice for professional mechanics.
- Value-Priced Brands (e.g., URO Parts, True Tech, Global Parts): These brands offer a more budget-friendly option. While they can provide significant savings, forum discussions suggest that the quality of some value-oriented electrical parts can be inconsistent, with some users reporting premature failures. For a part that is relatively easy to access, a value brand might be a reasonable gamble; for those where labor is more intensive, spending more on a premium brand for peace of mind is a wise investment.
Pro Tip: Before condemning the switch, a mechanic will often perform a manual pressure test. This involves removing the switch and connecting a mechanical pressure gauge to the engine to verify the actual oil pressure. This test definitively separates a bad sensor from a real engine problem.
Cost of Replacing an Engine Oil Pressure Switch
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Part | $7.48 - $65.68 |
| Shop Labor | $60 - $150 |
| Total Estimated Cost | $67 - $216 |
Costs are estimates and can vary based on your location, vehicle engine, and the specific part brand chosen.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch on my Equinox?

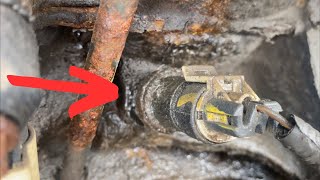

The location varies by engine. On the 2005-2009 3.4L V6, it is located on the front of the engine block, near the bottom, under the exhaust manifold. 🎬 See how to locate and replace the switch on 3.4L engines. On the 2010-2017 2.4L I4, it is on the front, right side of the engine, below the oil filter housing.
Can I replace the oil pressure switch myself?
For many DIYers, yes. The difficulty depends on the engine. On the 3.4L V6, access is tight but possible from underneath the vehicle. On the 2.4L, it is more accessible from the top, but may require removing other components like the alternator for proper access. You will need a special deep socket designed for oil pressure switches.
My oil light flickers at idle. Is it the switch?
It could be. A flickering light at idle that goes away when you accelerate is a classic symptom of either a failing sensor or borderline low oil pressure. As the engine RPMs increase, the oil pump spins faster, raising the pressure just enough to turn the light off. It's crucial to diagnose this properly to rule out a serious mechanical issue.
What does the code P0521 mean?
P0521 stands for "Engine Oil Pressure Sensor/Switch Range/Performance." It means the engine's computer is seeing a reading from the sensor that doesn't make sense—it might be stuck, or inconsistent with what the computer expects based on engine speed and temperature. While a faulty sensor is a common cause, this code can also be triggered by actual low oil pressure, dirty oil, or wiring problems.
🎬 Learn more about diagnosing and fixing the P0521 trouble code.Helpful Videos
Technical Specifications
OEM Part Numbers: 12673134 12621234 12596951 12570964 12562230
Typically a 1- or 3-pin electrical connector. Requires a special deep socket for removal and installation (often 27mm or a specific oil pressure switch socket).
