Ford Expedition Exhaust Manifold Hardware Guide (2005-2017)
Tackling the common exhaust tick and broken studs on your Expedition.
- A ticking noise on a cold start is the number one symptom of broken exhaust manifold studs.
- This is a very common failure on 2005-2017 Expeditions; expect to deal with broken studs that are difficult to remove.
- Upgrading to aftermarket stainless steel hardware is a popular and recommended long-term fix.
- The cost of the hardware is low, but labor is expensive due to the difficulty of extracting broken studs.
Is Your Expedition Making a Ticking Noise?
One of the most common signs of a problem with your 2005-2017 Ford Expedition, especially those with the 5.4L V8, is a rhythmic ticking or tapping sound coming from the engine bay. This noise is often loudest when the engine is cold and may quiet down or disappear as the truck warms up. This classic symptom points to an exhaust leak, which is frequently caused by broken exhaust manifold studs. The original factory studs are known to rust, become brittle, and eventually snap, allowing exhaust gases to escape past the gasket.
A Very Common Ford Problem
Broken exhaust manifold studs are a well-known issue on Ford's modular V8 and EcoBoost V6 engines. The original cast iron manifolds can warp from the heat, putting immense stress on the steel studs until they break. The rear-most studs are often the first to fail. This is not a matter of if, but often when, this repair will be needed. There are no recalls for this issue, but it is widely documented by mechanics and owners.
Choosing the Right Aftermarket Hardware
When it's time to replace your exhaust manifold hardware, you have several aftermarket options. For this specific repair, aftermarket hardware can be a significant upgrade over the original equipment (OEM) parts.
- OEM/Stock Replacement: Standard steel studs and nuts similar to what was installed at the factory. While they meet the basic requirements, they are prone to the same rust and breakage issues over time.
- Aftermarket Coated Steel: Brands like Fel-Pro and Motormite (Dorman) offer hardware with special coatings designed to resist corrosion and high temperatures. This provides better longevity than uncoated steel.
- Stainless Steel: Many owners and mechanics recommend upgrading to stainless steel studs and nuts. Stainless steel offers superior corrosion resistance, which is the primary cause of failure for the original studs. This is often considered the best long-term solution.
Brand Quality Tiers
When shopping for a new hardware kit, consider the following brands:
- Fel-Pro: A top-tier aftermarket brand known for high-quality gaskets and sealing components. Their hardware kits are generally well-regarded and often feature corrosion-resistant coatings, making them a reliable choice for a durable repair.
- Motormite (Dorman): A widely available and budget-friendly option. While some Dorman parts have mixed reviews, their exhaust hardware is a common choice for this repair. They offer both standard and stainless steel options.
- Skyward: This brand falls into the economy or standard replacement category. It provides a cost-effective solution that will get the job done, but may not offer the same advanced coatings or materials as premium brands.
Pro Tip: Always replace the exhaust manifold gasket when replacing the hardware. Reusing an old gasket will almost certainly result in a leak. Also, inspect the manifold itself for cracks or warping; it's common to replace the manifold, gasket, and hardware all at once.
Cost of Replacing Exhaust Manifold Hardware
| Part Type | Estimated Cost |
|---|---|
| Aftermarket Hardware Kit | $17.29 - $39.28 |
| Shop Labor | $600 - $1500+ |
Note: Labor costs are the major factor here. The price can increase significantly if multiple studs are broken and require extraction.
Frequently Asked Questions
Why did my original Ford exhaust studs break?
The original studs fail due to repeated heat cycles causing the cast iron manifold to expand and contract. This, combined with corrosion from moisture and road salt, weakens the studs until they snap under the stress.
Are stainless steel studs a better choice?
Yes, for many owners, stainless steel is a worthwhile upgrade. It is much more resistant to the corrosion that causes original steel studs to fail. This can lead to a longer-lasting repair, especially in areas with harsh winters.
Can I just replace the one broken stud?
It is highly recommended to replace all the studs on the manifold at the same time. The labor to access the manifold is the same, and if one stud has failed, others are likely weakened and will fail soon. Replacing them all at once prevents having to do the same job again in the near future.
Do I need a special tool to remove broken studs?
If a stud breaks off flush with the cylinder head, you will need a specialized stud extraction tool kit. This often involves drilling into the broken stud and using an extractor bit. This process is difficult and carries the risk of damaging the cylinder head, which is why many DIY mechanics leave this job to professionals.
Technical Specifications

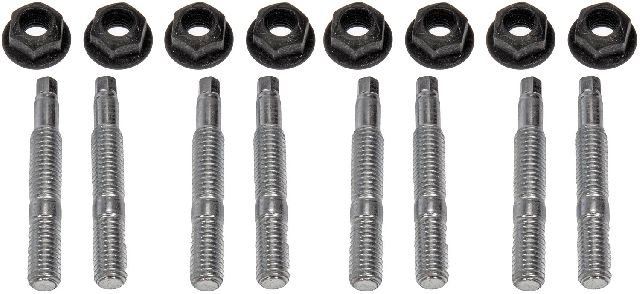

Kits typically include 8 to 10 studs and nuts, depending on the specific engine and year. Common stud size is M8-1.25. Materials vary from coated carbon steel to stainless steel.
