A Guide to Replacing Ignition Coils on Your 2005-2019 Buick LaCrosse
Fix engine misfires and restore performance by choosing the right ignition coil for your LaCrosse's specific engine.
- You MUST identify your engine (3.8L vs 3.6L/2.4L etc.) as the ignition systems are completely different.
- On V6 engines, the rear coils are very difficult to access; it's wise to replace all 3 rear coils and spark plugs at the same time.
- Before replacing parts on a 2010-2011 V6, check for loose ignition coil ground bolts as noted in TSB PIP4744B.
- ACDelco and Delphi are top-tier brands for this part, with NGK and Bosch being excellent alternatives.
Understanding Your LaCrosse's Ignition System
Before buying parts, you must know which ignition system your Buick LaCrosse has. The parts are not interchangeable. Check your engine size, which is often printed on the plastic engine cover.
- 2005-2009 LaCrosse with 3.8L V6 Engine: These models use a "waste-spark" system. It has three individual ignition coils mounted together on a single bracket with an Ignition Control Module (ICM). Each coil provides spark for two cylinders at the same time. A failure could be a single coil or the control module itself.
- 2005-2019 LaCrosse with 2.4L, 2.5L, 3.0L, or 3.6L Engines: These models use a modern "Coil-on-Plug" (COP) system. Each cylinder has its own dedicated ignition coil sitting directly on top of the spark plug. This is the most common setup on later model LaCrosse vehicles.
Signs of a Failing Ignition Coil
Ignition coil failure is a common issue as a vehicle ages. The symptoms are usually easy to notice and should not be ignored, as a persistent misfire can damage your catalytic converter.
- Check Engine Light: This is the most common sign. If the light is flashing, it means the engine is misfiring severely enough to cause expensive damage, and you should reduce speed and get the vehicle checked immediately. Common codes include P0300 (random misfire) or P0301, P0302, etc., which point to a specific cylinder.
- Rough Engine Idle: The car may shake or vibrate noticeably when you are stopped at a light.
- Engine Misfiring: You may feel the engine hesitate, stumble, or jerk during acceleration.
- Reduced Power & Fuel Economy: Your LaCrosse may feel sluggish, and you'll notice you're filling up the gas tank more often.

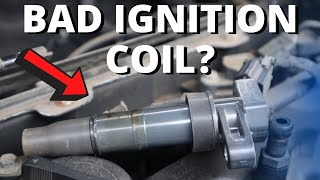

- Trouble Starting: A weak or dead coil can make it difficult for the engine to start. 🎬 See a visual guide to common bad ignition coil symptoms.
Known Issues for LaCrosse Owners
2005-2009 Ignition Switch Recall: Many early LaCrosse models were recalled for a faulty ignition switch, not the coils. Heavy keychains could cause the key to turn out of the "run" position while driving. This is a separate issue from coil failure.
2010-2011 Misfire TSB: GM issued Technical Service Bulletin (TSB) PIP4744B for the 3.0L and 3.6L V6 engines. It notes that a random misfire (P0300) can be caused by loose ignition coil ground bolts on the cylinder heads. It's worth checking these connections before buying new parts.
Choosing the Right Aftermarket Ignition Coil
When shopping for aftermarket coils, quality matters. While budget options are tempting, a poor-quality coil can fail quickly, leaving you with the same problem. Here’s a breakdown of brand quality tiers.
- Tier 1: OEM / Premium Aftermarket: These brands are known for reliability and performance that meets or exceeds the original factory parts. ACDelco is the original GM parts brand, and Delphi is a primary OEM supplier that often makes the exact same part. NGK, Bosch, and Denso are world-renowned ignition system specialists and are excellent, reliable choices.
- Tier 2: Quality Aftermarket: Brands like Standard Ignition (SMP), Hitachi, and Walker Products have a solid reputation for producing dependable parts that offer a good balance of quality and value.
- Tier 3: Economy Brands: This category includes brands like DriveWire, True Tech, and various private labels. While they are the most affordable, their long-term durability can be inconsistent. They can be a viable option for a tight budget, but be aware that you may be replacing them again sooner than a premium part.
Mechanic's Advice
If one coil has failed, the others are likely near the end of their service life. It is highly recommended to replace all the ignition coils at the same time, especially on V6 engines where the rear coils are difficult to access. This saves you from having to do the same repair again in a few months. Always replace spark plugs when you replace coils to ensure the best performance and longevity.
Cost of Replacing Buick LaCrosse Ignition Coils
| Part / Service | Estimated Cost |
|---|---|
| New OEM / Premium Aftermarket Coil (Single) | $50 - $120 |
| New Economy Aftermarket Coil (Single) | $25 - $50 |
| Shop Labor (Front Coils Only, V6/I4) | $60 - $120 |
| Shop Labor (Rear Coils, V6 - Requires Intake Removal) | $250 - $500+ |
Costs are estimates and can vary based on your location, vehicle, and the specific parts chosen.
Frequently Asked Questions
Is it hard to replace the ignition coils on a Buick LaCrosse?
It depends on the engine. On all engines, the front-facing coils are very easy to replace with basic tools in under an hour. However, on V6 models (3.0L & 3.6L), the rear three coils are located under the upper intake manifold. Replacing them is an advanced job that requires removing the manifold and replacing its gaskets, taking several hours.
🎬 Watch this step-by-step walkthrough for replacing your ignition coils.Should I replace all coils if only one is bad?
Yes, it is highly recommended. Ignition coils are wear-and-tear items that tend to fail around the same time. Replacing them all at once, especially if you are paying for labor to access the rear coils on a V6, is the most cost-effective and reliable repair strategy.
What is an Ignition Control Module (ICM) and does my car have one?
Only the 2005-2009 LaCrosse with the 3.8L V6 engine has a separate Ignition Control Module. It's the component that the three coil packs bolt onto. If you have a misfire on two cylinders at once (e.g., 1 and 4), the ICM could be the cause, rather than the coil itself.

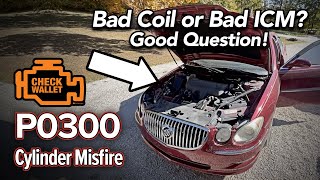

🎬 Watch: Diagnosing a misfire on the 3.8L ignition system.Do I need to buy new spark plugs with my ignition coils?
It is a very good idea. Old or worn spark plugs can put extra strain on new ignition coils, causing them to fail prematurely. Since you or a mechanic will already have access to the plugs during the coil replacement, changing them at the same time is efficient and ensures the entire ignition system is healthy.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12632479 12629037 12570616 DR39
Varies by engine type. Early 3.8L V6 models use a 3-coil pack system on an ICM. Later Coil-on-Plug (COP) systems use one coil per cylinder, typically with a 4-pin connector.
