Chevrolet Equinox 2005-2021 Fuel Pump Module Assembly Guide
Diagnosing a failing fuel pump in your Equinox and choosing the right aftermarket replacement.
- Fuel pump replacement on the Equinox is a difficult job that requires dropping the fuel tank; there is no access panel.
- Check for open recalls on your vehicle, as GM has issued recalls for fuel pump modules on 2021-2022 models and high-pressure pumps on 2018 models.
- For direct injection engines (common after 2010), ensure proper diagnosis to distinguish between a faulty in-tank pump and a faulty high-pressure pump on the engine.
- Due to the high labor cost, choosing a quality aftermarket brand like Delphi or Spectra is a wise investment to avoid premature failure and repeated repairs.
Understanding Fuel Pump Failure in Your Equinox
A failing fuel pump can cause significant drivability issues, from difficulty starting to stalling in traffic. The fuel pump is the heart of your Equinox's fuel system, and when it weakens, the engine is starved of the fuel it needs to run properly. 🎬 Watch: Learn the common symptoms of a bad fuel pump. This guide will help you understand the symptoms, known issues, and how to select a quality aftermarket replacement fuel pump module for your 2005 to 2021 Chevrolet Equinox.
High-Pressure vs. Low-Pressure Pumps
Many newer Equinox models, especially those from 2010 onwards with direct injection engines (GDI), have two fuel pumps: a low-pressure pump in the tank (the module assembly this article covers) and a high-pressure mechanical pump on the engine. The in-tank pump feeds the high-pressure pump. While this article focuses on the in-tank module, be aware that some fuel delivery issues, particularly on GDI models, can be caused by the high-pressure pump. Codes like P0089 can sometimes be triggered by either pump.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
Over its long production run, the Chevrolet Equinox has had a few notable fuel system issues.
- NHTSA Recall 23V013 (GM N222372310): Affects certain 2021-2022 Equinox models. The fuel pump module may not provide enough fuel, potentially causing the engine to stall. The cause was identified as an unauthorized manufacturing change by a supplier, which was corrected. The remedy is a complete replacement of the fuel pump module by a dealer.
- NHTSA Recall 18V358 (GM 18188): This recall was for certain 2018 Equinox vehicles. The high-pressure fuel pump (not the in-tank module) could detach from its mounting, potentially damaging a fuel line and increasing fire risk.
- TSB PIP5203: For 2010-2011 models, this bulletin addresses DTCs P0089 and P228D, which can occur if incorrect camshaft parts are installed, affecting the high-pressure fuel pump's operation.
- TSB N242450160: For 2023-2024 models, this service update addresses potentially inoperative high-pressure fuel pumps.
Choosing the Right Aftermarket Fuel Pump
When your original fuel pump fails, you have a choice between an OEM part from the dealer and an aftermarket part. Aftermarket parts offer significant cost savings. However, quality can vary greatly between brands. For a part that requires significant labor to access (like dropping the fuel tank), it's wise to invest in a quality brand to avoid doing the job twice.
Aftermarket Brand Tiers for Chevrolet Equinox
Based on general reputation and user reviews, here is a breakdown of the available brands:
- Top Tier (OEM Supplier Quality): Delphi is often an original equipment manufacturer for GM and other automakers. Choosing a Delphi pump is the closest you can get to OEM quality in the aftermarket, offering excellent reliability and fit.
- Mid-Grade (Reliable Aftermarket): Spectra and Carter are well-regarded aftermarket brands. They provide a good balance of quality, reliability, and price. Many professional technicians use these brands as a dependable alternative to OEM.
- Economy Tier (Budget-Focused): AutoBest and US Motor Works are more budget-friendly options. While they can provide significant savings, reviews can be mixed, with some users reporting shorter lifespans or issues like incorrect strainers. These can be a viable option if the budget is the primary concern, but be aware of the potential trade-offs in longevity.
Pro Tip: Check for an Access Panel

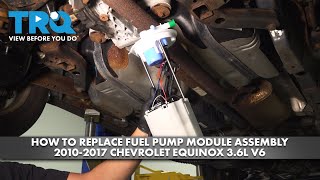

Unfortunately for Equinox owners, there is no fuel pump access panel under the rear seat. Replacing the fuel pump module requires the fuel tank to be lowered from the vehicle. 🎬 See this DIY walkthrough for replacing the fuel pump. This significantly increases the labor time and difficulty of the job.
Cost of Replacing Your Equinox Fuel Pump
Prices can vary based on your location, vehicle year, and the specific parts chosen. Labor costs are a significant factor due to the need to drop the fuel tank.
| Cost Category | Estimated Cost |
|---|---|
| New Aftermarket Part | $158 - $744 |
| Shop Labor | $308 - $599 |
| Total Estimated Cost (Aftermarket) | $466 - $1,343 |
| New OEM Part | $876 - $921 |
| Total Estimated Cost (OEM) | $1,284 - $1,520 |
Frequently Asked Questions (FAQ)
Do I have to drop the fuel tank to replace the pump?
Yes, on all 2005-2021 Chevrolet Equinox models, the fuel tank must be lowered to access and replace the fuel pump module assembly. There is no access hatch under the rear seat.
What else should I replace with the fuel pump?
While the module is a complete assembly, it's a good practice to clean the inside of the fuel tank thoroughly while it's out. Some mechanics also recommend replacing the in-line fuel filter if your vehicle is equipped with one that is separate from the tank module.
My Equinox has a GDI engine. Could my problem be the high-pressure fuel pump instead?
Yes. Symptoms like stalling, hesitation, and certain trouble codes (P0089, P228D, P0191) can be caused by either the low-pressure in-tank pump or the high-pressure engine-mounted pump. Proper diagnosis is key. A mechanic can test the pressure from both the low-side and high-side systems to pinpoint the faulty component.
🎬 Watch: How to replace the high-pressure fuel pump.Can I just replace the pump motor instead of the whole module?
While it is sometimes possible to buy just the pump motor, it is not recommended. The module assembly includes the pump, sending unit, strainer, and housing, all designed to work together. Replacing the entire module is more reliable, ensures all components are new, and prevents potential compatibility issues or leaks from old seals.
Helpful Videos
Technical Specifications
The fuel pump module assembly for the Chevrolet Equinox is an in-tank unit. It consists of the electric pump, fuel level sender, strainer, and housing. For models with direct injection, this is the low-pressure pump that feeds a separate high-pressure pump on the engine.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
