Dodge Challenger Ignition Coil Guide for 2005-2023 Models
Keep your Challenger's V6 or HEMI V8 engine firing on all cylinders with the right ignition coils.
- A flashing Check Engine Light indicates a severe misfire; stop driving to prevent catalytic converter damage.
- For V6 engines, replacing all six coils is recommended since three are difficult to access under the intake manifold.
- For most owners, high-quality aftermarket brands like NGK, Delphi, or Bosch offer the best value and reliability.
- A misfire code (P0301-P0308) is the most common indicator of a failing ignition coil.
Symptoms of a Bad Ignition Coil

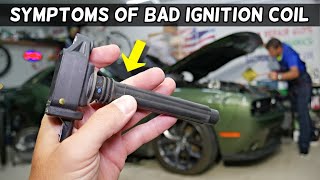

A failing ignition coil can cause noticeable problems with your Challenger's performance. The most common issue is an engine misfire, which can feel like a shake, shudder, or hesitation, especially at idle or during acceleration. 🎬 Watch these common ignition coil failure symptoms on a Challenger. If the Check Engine Light comes on, it's often due to a misfire. A flashing Check Engine Light indicates a severe misfire that could damage your catalytic converters, so you should avoid driving until it's fixed.
Choosing the Right Aftermarket Ignition Coil
When shopping for new ignition coils, you'll find a wide range of brands and prices. For a daily-driven Challenger, sticking with a reputable brand is key to avoiding future headaches. Here’s a breakdown of your options:
- OEM / Premium Aftermarket: Mopar is the original equipment manufacturer for your Challenger. Brands like NGK, Delphi, and Bosch are known for producing high-quality parts that meet or exceed OEM standards. These are a reliable choice for longevity and performance.
- Performance Aftermarket: Brands like Granatelli, FAST, and Mishimoto offer high-output coils designed for modified engines. They claim to provide a stronger spark, which can be beneficial for tuned or supercharged HEMI engines. For a stock engine, these are generally not necessary but can be a valid upgrade. 🎬 See a review and installation of performance coils for HEMI engines.
- Standard Aftermarket: Brands such as Standard Ignition (SMP), Hitachi, and Spectra offer a good balance of quality and price. They are often a solid choice for repairs on a budget.
- Economy Brands: While the low price of some brands can be tempting, their long-term reliability can be questionable. Given that labor can be intensive for some coils on the V6 engine, it's often better to invest in a higher-quality part to avoid doing the job twice.
Cost of Dodge Challenger Ignition Coil Replacement
| Item | Estimated Cost |
|---|---|
| New Aftermarket Ignition Coil (Single) | $29 - $110 |
| New OEM (Mopar) Ignition Coil (Single) | $50 - $108 |
| Shop Labor Cost | $78 - $114 (per hour) |
| Total Professional Replacement (Single Coil) | $128 - $177 |

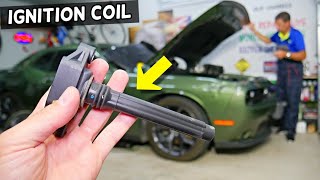

Note: Prices are estimates and can vary based on your vehicle's engine (V6 vs. V8), your location, and the specific brand of parts used. V6 models may have higher labor costs as the intake manifold must be removed to access three of the six coils. 🎬 Follow this guide for replacing coils and plugs on V6 models.
Frequently Asked Questions (FAQ)
Should I replace all ignition coils at once?
Yes, if your Challenger has over 100,000 miles, it's a smart move. Ignition coils are wear items, and when one fails, the others have likely endured the same conditions and may fail soon after. Replacing them all at once saves you from repeated repairs.
How do I find which ignition coil is bad?
If your check engine light is on, a code scanner can tell you which cylinder is misfiring (e.g., P0301 for cylinder 1, P0302 for cylinder 2). A common diagnostic trick is to swap the suspected bad coil with a coil from a known good cylinder. If the misfire code moves to the new cylinder, you've confirmed the coil is faulty.
Is replacing an ignition coil a DIY job?
For V8 HEMI engines, yes. The coils are easily accessible on top of the engine, and replacement involves removing a single bolt and an electrical connector. For the 3.6L V6 engine, three coils are easy to access, but the other three are under the upper intake manifold, which must be removed. This makes the job more complex and is best left to those with more mechanical experience.
Are performance ignition coils worth it for a stock Challenger?
For a stock, daily-driven Challenger, high-output performance coils usually don't provide a noticeable benefit over quality OEM or premium aftermarket coils. They are primarily designed for highly modified, tuned, or forced-induction engines that require a stronger spark to prevent blowout under high cylinder pressures.
Helpful Videos
Technical Specifications
OEM Part Numbers: 5149168AJ 68238603AA 56029129AF
All 2005-2023 Dodge Challenger models use a coil-on-plug ignition system. There is one coil per cylinder. V6 engines have 6 coils, while V8 HEMI engines have 8 coils. Note that HEMI engines from this era use two spark plugs per cylinder, but only one ignition coil.
