Cadillac DTS Brake Fluid Level Sensor Guide (2006-2007)
Understand the common failure points of the brake fluid level sensor on your 2006-2007 Cadillac DTS and how to fix it.
- The main symptom of failure is a 'CHECK BRAKE FLUID' warning when the fluid is full.
- You can quickly test the sensor by unplugging it; if the light goes out, the sensor is bad.
- Replacement is extremely easy for a DIYer and takes less than 15 minutes.
- A quality aftermarket brand like Standard Ignition is a perfectly acceptable and budget-friendly choice for this part.
Is your 2006-2007 Cadillac DTS showing a brake warning light?
A persistent "CHECK BRAKE FLUID" message on the driver information center (DIC) is a common issue for Cadillac DTS owners. While your first instinct should always be to check the brake fluid level, if the reservoir is full, the problem is likely the sensor itself. This component can fail over time, sending a false signal to the car's computer. This guide will walk you through the symptoms, part choices, and what to expect for a replacement.
Symptoms of a Failing Brake Fluid Level Sensor
The signs of a bad sensor are often more annoying than dangerous, but they should not be ignored as they can mask a real brake fluid leak.
- Brake Warning Light Stays On: The most common symptom is the brake warning light or a "CHECK BRAKE FLUID" message appearing on your dash, even when the fluid reservoir is full.
- Intermittent Warnings: The warning light may flicker or come on and off, especially when turning or driving on an incline. This can happen as fluid sloshes around a sensor that is beginning to fail. 🎬 Watch this video to see how to reset the warning light.
- "Traction Disabled" Message: On some Cadillac models, a faulty brake fluid level sensor can sometimes cause the computer to display a "Traction Disabled" message as a secondary alert.
Pro Tip: A quick way to diagnose a faulty sensor is to simply unplug its electrical connector. If the warning light on the dash turns off after unplugging it, you have almost certainly confirmed the sensor is the problem. 🎬 See a quick demonstration on how to test the sensor. Remember to plug it back in until you can replace it.
Choosing the Right Aftermarket Part
For the 2006-2007 Cadillac DTS, the brake fluid level sensor is a straightforward component. You have two main choices: OEM from a GM dealer or a new aftermarket part.
- OEM: Original Equipment Manufacturer parts are the same as what was installed at the factory. They are a guaranteed fit but often come at a higher price.
- New Aftermarket (Standard Ignition): For a simple sensor like this, a quality aftermarket brand like Standard Ignition (also known as Standard Motor Products) is a reliable and cost-effective choice. Standard has a long history of producing dependable aftermarket components that meet or exceed OEM specifications. Given the simplicity of the part, there is no significant quality or longevity trade-off by choosing a reputable aftermarket brand for this repair.
Replacement Cost
Replacing the brake fluid level sensor is one of the more affordable repairs you can perform on your DTS. The part itself is inexpensive, and the labor is minimal because it is so easy to access.
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket (Standard Ignition) | $20 - $25 | $30 - $60 | $50 - $85 |
| New OEM (ACDelco/GM) | $30 - $40 | $30 - $60 | $60 - $100 |
Cost estimates are approximate and can vary based on your location and the specific repair shop. Labor is estimated at 0.25-0.5 hours.
Frequently Asked Questions (FAQ)
Where is the brake fluid level sensor located on a 2006-2007 Cadillac DTS?
The sensor is mounted directly on the brake fluid reservoir. Open the hood and look on the driver's side, near the back of the engine bay (firewall). You will see a plastic tank with a cap on it; this is the brake fluid reservoir. The sensor is the small electronic component with a wire connector attached to it.
Can I replace the brake fluid level sensor myself?
Yes, this is a very easy DIY job. No special tools are needed. The job involves unplugging the electrical connector, releasing the old sensor from the reservoir (it may twist-off or be held by a clip), and installing the new one. The entire process should take less than 15 minutes.

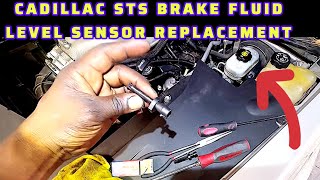

🎬 Follow this step-by-step walkthrough to replace the sensor yourself.Is it safe to drive with a bad brake fluid level sensor?
Yes, but with a major caution. A bad sensor will not affect braking performance directly. However, if the sensor is faulty and constantly giving a false warning, it cannot warn you of a real, dangerous drop in brake fluid. If you choose to drive with a known bad sensor, you MUST manually check your brake fluid level regularly (e.g., weekly) until you can get it replaced.
Is there a recall for the brake fluid level sensor on the 2006-2007 DTS?
No. Searches of the NHTSA database show no recalls or technical service bulletins (TSBs) related to the brake fluid level sensor for the 2006-2007 Cadillac DTS. Recalls for brake fluid warnings on other GM vehicles are for much newer models and involve different software-related issues.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22672096 15832381
Mounts to the brake fluid master cylinder reservoir. Typically includes a new seal or gasket.
