Guide to 2006-2008 Lexus RX400h New Aftermarket Brake Calipers
Understand the common failure points and learn how to choose the right new aftermarket brake calipers for your hybrid SUV.
- A common failure is a seized caliper, especially the rear slide pins, due to corrosion and the hybrid's regenerative braking system.
- Warning lights for VSC or ABS could be related to the Brake Actuator Assembly, a known issue under a Lexus Warranty Enhancement Program, not the caliper itself.
- New aftermarket calipers from brands like Powerstop, Centric, and Raybestos are reliable alternatives to more expensive OEM parts.
- Always replace calipers in pairs and consider replacing old brake hoses to prevent future problems.
Is Your RX400h Brake Caliper Failing?
A failing brake caliper on your 2006-2008 Lexus RX400h is a serious safety issue. The most common problem is a seized or sticking caliper. This can happen when the caliper piston or, more frequently, the slide pins corrode and get stuck. This can cause the brake on one wheel to either stay applied constantly or not apply at all.
Key Symptoms of a Bad Caliper:
- Vehicle Pulling to One Side: If the car pulls to the left or right when you brake or even while driving, it's a classic sign of a seized caliper applying uneven pressure.
- Spongy or Soft Brake Pedal: This can happen if a caliper seal fails and leaks brake fluid. You might also see fluid on the ground near the wheel.
- Burning Smell or Smoke: A caliper that's stuck in the 'on' position creates constant friction, which generates extreme heat and a noticeable burning smell from the affected wheel.
- Uneven Brake Pad Wear: A sticking caliper will cause the inner and outer brake pads to wear at different rates. You might also hear grinding or squealing noises as the pads wear down completely.
- Visible Rust on Rotors: Because the RX400h uses regenerative braking, the hydraulic brakes are sometimes used less. If you notice one brake rotor is significantly more rusted than the others, it could mean that caliper isn't engaging at all.
Known Issues for the 2006-2008 Lexus RX400h
While there are no direct recalls for the brake calipers themselves on these models, Lexus did issue a Warranty Enhancement Program (Campaign ZLD) for the Brake Actuator Assembly. This separate, complex component controls the entire hybrid braking system. A failure in the actuator can cause multiple brake-related warning lights on the dash (like VSC, ABS, and the brake light) and inconsistent braking feel. Sometimes, symptoms of a bad actuator can be confused with a bad caliper, so a proper diagnosis is important.
Choosing the Right New Aftermarket Caliper
When replacing a caliper on your RX400h, you have several options. While OEM calipers are available, new aftermarket calipers offer a cost-effective and reliable alternative. Many aftermarket brands provide calipers that are 100% new, meaning no core charge is required, and they often come with a protective coating to prevent rust.
Aftermarket Brand Tiers
The brands available can be grouped into general quality tiers based on owner feedback and market reputation.
- Premium Aftermarket (Powerstop, Centric, Raybestos): These brands are well-regarded. Powerstop calipers often come with a powder-coated finish for aesthetics and corrosion resistance, though some users report the coating may not last forever. Raybestos and Centric are trusted names in braking, with Centric sometimes noted for good cosmetic quality on their remanufactured parts. Many new calipers from these brands feature high-temperature EPDM rubber seals for durability.
- Standard Aftermarket (Cardone, Dynamic Friction): Cardone is a very common brand for remanufactured parts, but some forum users have reported mixed experiences with quality control on remanufactured units. Opting for their 'Ultra Premium' coated line may be a better choice. Dynamic Friction is another solid option in this tier.
- Economy Aftermarket (BBB Industries): These calipers meet basic requirements and are often the most budget-friendly. They are a functional replacement, though they may not have the advanced coatings or premium seals of higher-end brands.
Pro Tip: When replacing calipers, it's highly recommended to replace them in pairs (both front or both rear) to ensure even braking performance. Also, consider replacing the flexible brake hoses at the same time, as they can degrade internally and cause caliper binding.
Estimated Costs for Caliper Replacement
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Caliper (Single) | $63 - $141 |
| New OEM Caliper (Single) | $135 - $185 |
| Shop Labor (Per Caliper) | $125 - $255 |
| Total Professional Replacement (Single, Aftermarket) | $188 - $396 |
Frequently Asked Questions
Do I need special tools to replace an RX400h caliper?
The basic replacement process is similar to a non-hybrid car and requires standard mechanic's tools. However, because the RX400h has an electronic brake-by-wire system, you must take precautions. The system can pressurize itself even when the car is off if the key fob is nearby. It's also critical to follow the correct procedure for bleeding the brakes, which may require a diagnostic tool like Techstream for the best results. If you are not comfortable with these steps, professional installation is recommended.
Should I buy a new or remanufactured caliper?
This guide focuses on new aftermarket parts, which are a great option because they are made with 100% new components and require no core return. Remanufactured calipers can be a good value, but quality can vary by brand. Some forum users have reported receiving remanufactured parts with issues like seized pistons or stripped threads, so it's best to buy from a reputable brand if you go that route.
Why are my rear calipers seizing more than the front?
Seized rear caliper slide pins are a common issue on the RX400h. This can be due to a combination of factors, including less frequent use because of the regenerative braking system and exposure to road salt and moisture. Regular cleaning and lubrication of the slide pins during brake service can help prevent this.
What does a 'loaded' caliper include?
A 'loaded' caliper comes pre-assembled with new brake pads and all the necessary mounting hardware (clips and pins). A 'semi-loaded' caliper typically includes the hardware but not the pads. An unloaded caliper is just the caliper body itself. For a complete and easy installation, a loaded caliper is often the best choice.

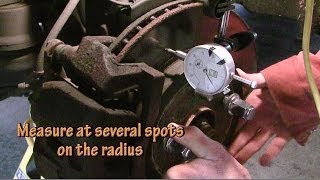

🎬 Watch a step-by-step guide on replacing RX400h hybrid brake pads.Helpful Videos
Technical Specifications

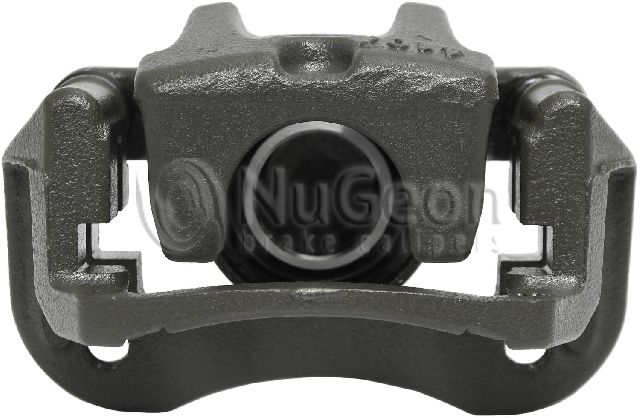

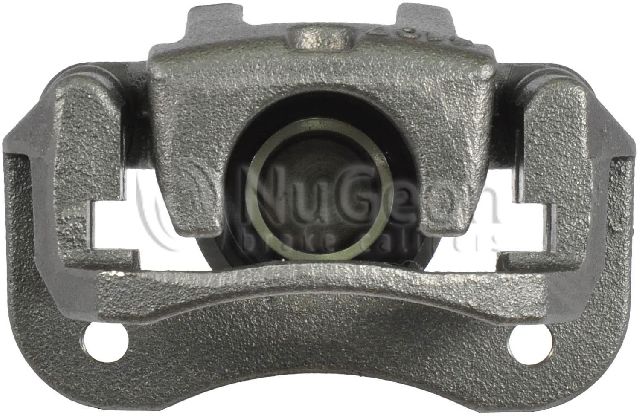

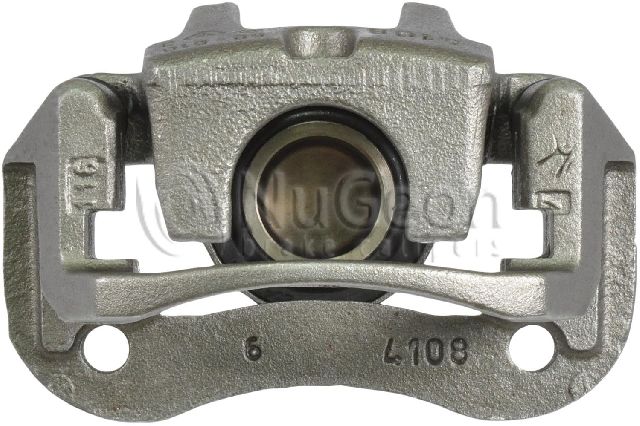

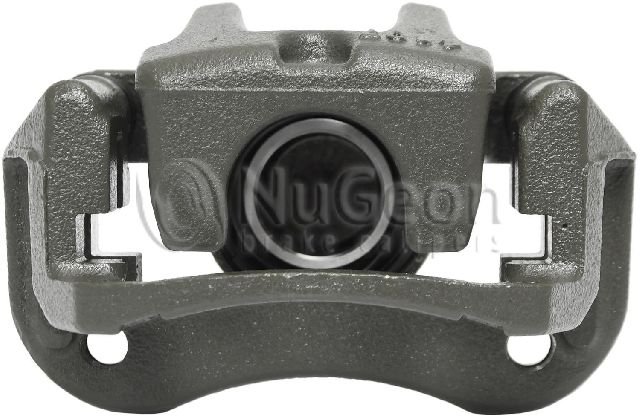

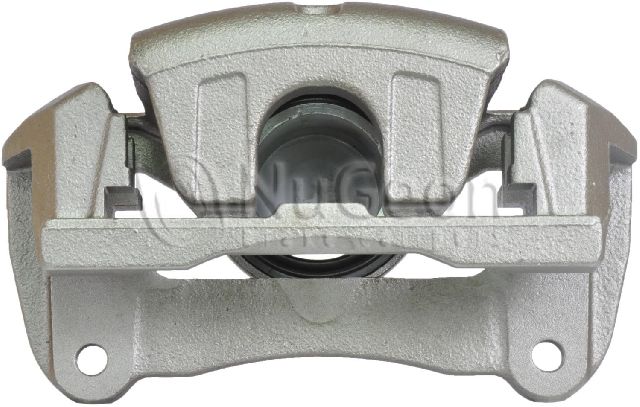

OEM Part Numbers: 47730-48140 (Front Right) 47750-48140 (Front Left) 47830-48050 (Rear Right) 47850-48050 (Rear Left)
The 2006-2008 Lexus RX400h uses single-piston floating calipers on both the front and rear axles. Aftermarket calipers often come with new mounting brackets and hardware included.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
