Lexus RX400h (2006-2008) Engine Coolant Thermostat Replacement Guide
Keep your hybrid's engine temperature in check by choosing the right thermostat.
- Thermostat replacement on the RX400h is a very difficult, labor-intensive job because the hybrid inverter must be removed for access.
- The most common failure is the thermostat sticking open, leading to a P0128 check engine code and the engine running too cool.
- Due to the high labor cost, using a top-quality OEM supplier part like Aisin is strongly recommended over budget brands.
- This is not a recommended DIY job for most owners due to the complexity and danger of working with high-voltage hybrid components.
Is Your RX400h Thermostat Failing?
A thermostat is a simple part, but it can cause significant problems when it fails. In the Lexus RX400h, thermostats most often fail by getting stuck open. This is safer than getting stuck closed, but it still needs to be addressed. A stuck-closed thermostat is a more urgent problem that can lead to rapid overheating.
Symptoms of a Failing Thermostat:
- Check Engine Light: The most common sign is a Check Engine Light with code P0128. This code means the engine isn't reaching its proper operating temperature fast enough.
- Low Temperature Gauge Reading: If your temperature gauge stays in the cold range for too long or drops while driving at highway speeds, the thermostat is likely stuck open.
- Poor Heater Performance: An engine that doesn't get hot enough can't provide much heat to the cabin. If your heater is blowing lukewarm air, a stuck-open thermostat could be the cause.
- Overheating: If the thermostat sticks closed, coolant can't get to the radiator to be cooled. This will cause the engine to overheat quickly, which is a serious issue that can cause major engine damage.
Known Issues, Recalls, and Service Bulletins
There are no specific recalls or Technical Service Bulletins (TSBs) from Lexus for the engine coolant thermostat on the 2006-2008 RX400h. However, there was a significant safety recall for the hybrid system inverter in these models, which can cause the vehicle to stall. This is unrelated to the thermostat but is an important issue for owners to be aware of.
Choosing the Right Aftermarket Thermostat
Because replacing the thermostat on the RX400h is a labor-intensive job, it's critical to choose a high-quality part to avoid doing the job twice. The hybrid inverter sits on top of the engine, blocking access to the thermostat housing, which makes the replacement process complex.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|
| OEM Supplier | Aisin | Aisin is the original equipment manufacturer (OEM) for many Toyota and Lexus parts, including the thermostat. Choosing an Aisin thermostat is the closest you can get to buying the genuine part from the dealer, often at a lower price. It is widely considered the best choice for reliability. |
| Quality Aftermarket | Gates, Beck Arnley | Gates is a well-known brand in cooling systems. While their thermostats are generally considered reliable, some mechanics note that the OEM/Aisin parts feel more robust. Beck Arnley sources parts from various manufacturers, often including OEM suppliers, making them a generally dependable option. |
| Budget Options | Motorad, Facet, Calorstat | These brands offer a more affordable price point. Motorad is a common budget-friendly option. For a part that is very difficult to access and replace on the RX400h, saving a few dollars on a budget part is not recommended. |
A Note on Gaskets
Always replace the thermostat gasket when you replace the thermostat. Some thermostats come with a new gasket, but many do not. An OEM or Aisin gasket is highly recommended to ensure a proper seal.
Frequently Asked Questions (FAQ)
Why is thermostat replacement so expensive for the RX400h?
The high cost is almost entirely due to labor. The thermostat is located under the hybrid inverter, which must be disconnected and removed to gain access. This is a complex and time-consuming job that can take a professional mechanic around 4-5 hours.
Can I replace the RX400h thermostat myself?
This is an advanced DIY job. It requires draining both the engine and inverter cooling systems, safely disconnecting and removing the heavy hybrid inverter, and working in a very tight space. Due to the high-voltage components of the hybrid system, this job should only be attempted by experienced mechanics who are familiar with hybrid safety procedures. For most owners, professional replacement is recommended.

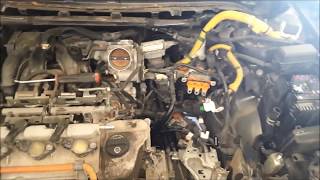

🎬 Watch this overview of the complex RX400h thermostat replacement process.What temperature thermostat should I use for my RX400h?
You should use a thermostat with the OEM specified temperature rating, which is 82°C or 180°F. Using a thermostat with a different temperature rating can negatively affect engine performance and fuel economy.
What is the P0128 code?
The P0128 code stands for "Coolant Temperature Below Thermostat Regulating Temperature." It means the engine's computer has detected that the engine is not warming up to its normal operating temperature within a set amount of time. The most common cause for this code is a thermostat that is stuck open.
Helpful Videos
Technical Specifications
OEM Part Numbers: 90916-03107 90916-A3003
Opening Temperature: 82°C / 180°F
