Lexus RX400h Fuel Injector Guide for 2006-2008 Models
Solve rough idling and misfires by understanding how to choose the right fuel injector for your hybrid SUV.
- Failing injectors on the RX400h cause misfires (P0300-P0306 codes), rough idle, and poor MPG.
- For a smooth-running engine, always replace all six injectors as a matched set.
- Replacement is a moderately difficult DIY job, requiring removal of the intake plenum to access the fuel rails.
- A flashing check engine light is a serious warning that can lead to catalytic converter damage; avoid driving if you see it.
Is Your RX400h Showing Signs of Failing Fuel Injectors?
When fuel injectors get old or clogged with deposits from gasoline, they can fail to deliver the correct amount of fuel. This can cause a variety of noticeable problems. Because the V6 engine is generally so smooth, you will likely feel a change in performance right away.
Common Symptoms of a Bad Fuel Injector:
- Rough Idle: The engine may shake or vibrate more than usual when you're stopped at a light.
- Engine Misfires: You may feel a stutter or hesitation from the engine while driving. This will often trigger a Check Engine Light.
- Flashing Check Engine Light: This is a serious warning. A flashing light indicates a severe misfire that is dumping unburned fuel into the exhaust. This can quickly destroy your expensive catalytic converters. If you see this, you should reduce your driving and get the vehicle serviced immediately.
- Poor Fuel Economy: If injectors are leaking or spraying inefficiently, your gas mileage will suffer.
- Fuel Smell: A leaking injector can produce a raw fuel smell in or around the engine bay. This is a fire hazard and should be addressed immediately.

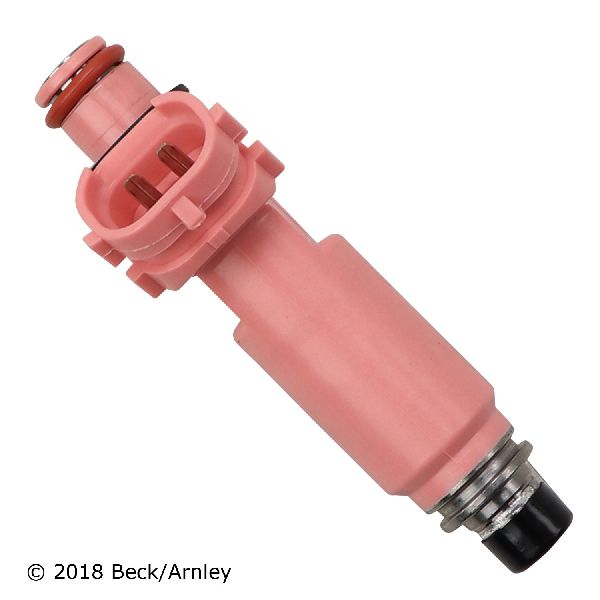

Choosing the Right Aftermarket Fuel Injector
When replacing injectors on your RX400h, you have options. The original parts were made by Denso, a top-tier OEM supplier. New OEM injectors from a Lexus dealer can be very expensive. Aftermarket injectors offer a more affordable solution, but quality can vary.
Brand Quality Tiers
| Tier | Brands | Description |
|---|---|---|
| OEM / Premium Aftermarket | Denso, Beck Arnley | Denso is the original manufacturer. Beck Arnley focuses on meeting OE specifications for form, fit, and function, often by sourcing from the original manufacturers or other high-quality partners. They are generally considered a reliable choice for import vehicles. |
| Standard Aftermarket | Standard Ignition (SMP) | Standard Motor Products is a large, well-known aftermarket manufacturer with a wide range of products. Their quality is generally good and they offer a balance of performance and price, though like any large manufacturer, occasional defects can occur. |
| Remanufactured | GBR Fuel Injection | GB Remanufacturing specializes in rebuilding original (OEM) injector cores. This can be a cost-effective option, but quality depends heavily on the remanufacturing process. You are getting a used part that has been cleaned, tested, and fitted with new seals. |
Pro Tip: Replace as a Full Set
It is highly recommended to replace all six fuel injectors at the same time. This ensures that each cylinder receives the same amount of fuel, as new injectors are flow-matched. 🎬 See why choosing the correct flow-matched injectors is so important. Mixing old and new injectors can lead to an imbalanced engine that still doesn't run smoothly.
Cost to Replace Lexus RX400h Fuel Injectors
The cost can vary significantly between doing it yourself and having a professional shop perform the work. The largest factor is the price of the parts.
Estimated Cost Comparison (Set of 6)
| Part Type | Estimated Cost |
|---|---|
| New OEM (Dealer) | $1200 - $1800+ |
| New Aftermarket | $340 - $975 |
| Remanufactured OEM | $120 - $300 |
| Shop Labor | $300 - $500 |
Known Issues, Recalls, and Service Bulletins
There are no major safety recalls or Technical Service Bulletins (TSBs) specifically for fuel injector failure on the 2006-2008 Lexus RX400h in the North American market. However, early owner reports suggested the injectors could be sensitive to fuel contamination, leading to misfires. Using high-quality, Top Tier gasoline can help keep injectors clean. A significant recall was issued for the hybrid system's Intelligent Power Module (IPM), which could cause stalling, but this is unrelated to the fuel injectors.
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?
For an experienced DIY mechanic, it is manageable. However, it is not a beginner's job. The process involves relieving fuel system pressure, disconnecting the battery, and removing the upper intake manifold (plenum) to access the fuel rails. The three injectors on the rear cylinder bank are more difficult to access. If you are not comfortable with this level of work, it is best to leave it to a professional.
Do I need to replace all six injectors at once?
Yes, it is the recommended best practice. Fuel injectors are manufactured to spray fuel at a specific rate. Replacing only one can create an imbalance where the new injector flows differently from the five old ones, and your engine may still run poorly.
What are the common trouble codes for bad fuel injectors?
Misfire codes are the most common. These range from P0300 (Random/Multiple Cylinder Misfire) to P0301 through P0306 (for cylinders 1 through 6). A diagnostic scanner can help you identify which cylinder is misfiring, which can point you toward the faulty injector, coil, or spark plug.
🎬 Watch: How to diagnose misfires and replace your fuel injectors.Can I just use a fuel injector cleaner additive?
If your injectors are only slightly dirty, a high-quality fuel system cleaner like Techron or Redline SI-1 might help. However, if an injector is electrically failed, mechanically stuck, or heavily clogged, a bottle of cleaner will not fix it. It is a good preventative measure but not a guaranteed repair for existing problems.
🎬 Watch this DIY guide to refreshing and servicing your injectors.Helpful Videos
Technical Specifications
OEM Part Numbers: 23250-20030 23209-20030
Engine: 3.3L V6 (3MZ-FE), Quantity Required: 6, Type: Port Fuel Injection
