A Guide to the Ignition Knock Sensor for the 2006-2009 Pontiac Solstice
Understand, diagnose, and replace the knock sensor on your Solstice to restore engine performance and prevent damage.
- Always use a high-quality OEM (ACDelco) or top-tier aftermarket (Delphi, NGK) sensor to avoid repeat failures.
- The knock sensor is easy to access on the Solstice, located above the starter, making it a simple DIY job.
- A bad knock sensor will cause a Check Engine Light (P0325, P0327) and reduce engine power and fuel economy.
- There are no specific recalls for the knock sensor on this vehicle.
Is a Bad Knock Sensor a Serious Problem?
A failing knock sensor on your Pontiac Solstice will trigger the Check Engine Light and can cause noticeable performance issues. The engine's computer, not trusting the sensor's readings, will switch to a safe, conservative mode. This typically results in sluggish acceleration, poor throttle response, and decreased fuel economy. While the car is still driveable, ignoring a bad knock sensor for a long time is not recommended, as the computer may not be able to protect the engine from harmful detonation if it occurs.
No Recalls or TSBs
There have been no recalls or Technical Service Bulletins (TSBs) issued by General Motors or the NHTSA for the ignition knock sensor on the 2006-2009 Pontiac Solstice. While several other recalls exist for the vehicle, this specific part is not among them.
Symptoms of a Failing Knock Sensor
A bad knock sensor will usually let you know something is wrong. Here are the most common signs:
- Check Engine Light: This is the most common symptom. The code stored in the computer is often P0325 (Knock Sensor Circuit Malfunction) or P0327 (Knock Sensor Circuit Low Input).
- Poor Engine Performance: Your Solstice may feel noticeably slower or less responsive than usual.
- Reduced Fuel Economy: When the engine runs in its protective mode, it's less efficient, leading to more trips to the gas station.
- Audible Pinging or Knocking: In some cases, you might hear a metallic pinging sound from the engine during acceleration, though this is less common as the computer usually retards timing to prevent it.
Choosing the Right Aftermarket Knock Sensor
For sensitive electronic parts like a knock sensor, brand quality matters. Sticking to brands with a history of supplying original equipment (OE) parts to GM is a safe bet.
Tier 1: OEM & OE-Equivalent Brands
These brands are either the original supplier to General Motors or are known for producing parts to the same strict standards. For maximum reliability and peace of mind, choose from this tier.

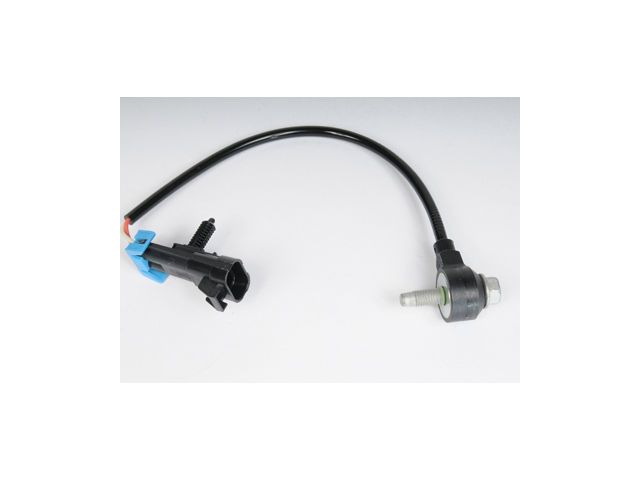

- ACDelco: As GM's own parts division, this is the original equipment part. Choosing ACDelco guarantees a perfect fit and function, just like the sensor your Solstice was built with.

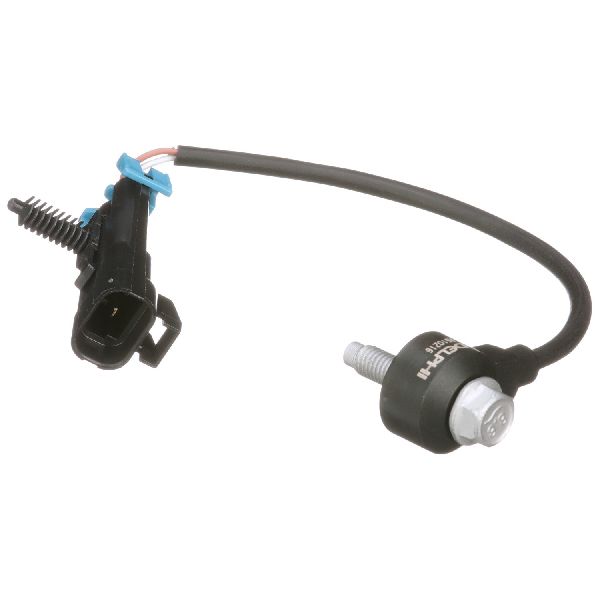

- Delphi: Delphi was once part of GM and is a massive OEM supplier for many electronic components. Their sensors are widely considered to be of equal quality to ACDelco and are an excellent choice.
Tier 2: Reputable Aftermarket Brands
These companies are well-known in the aftermarket for producing reliable parts that meet or exceed OEM specifications.
- NGK (NTK): While famous for spark plugs, their NTK electronics division is a highly respected sensor manufacturer.
- Standard Ignition (SMP): A long-standing brand that offers quality replacement parts, often with a strong reputation in forums.
- Walker Products: Another established brand offering a reliable alternative to OEM parts.
Tier 3: Value Brands
These brands offer a more budget-friendly option. They can be a good choice for a quick repair, but may not have the same long-term durability or precise calibration as higher-tier brands.
- Facet
- Global Parts
A Note on Connectors

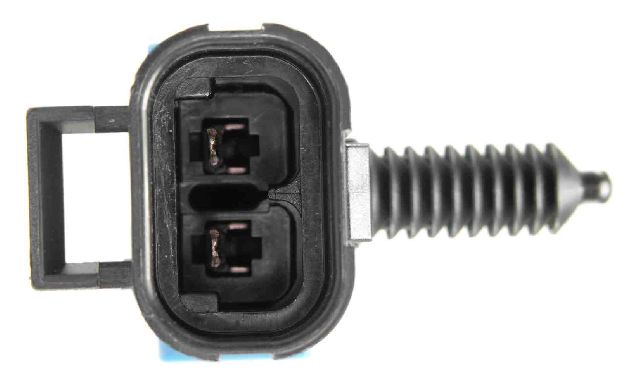

The plastic connector on the wiring harness can become brittle from years of heat and vibration and may break when you try to unplug the old sensor. Inspect it carefully. If it's cracked or damaged, it's a good idea to replace the short wiring pigtail at the same time.
Cost of Replacing a Pontiac Solstice Knock Sensor
Replacing the knock sensor on a Solstice is more affordable than on many other vehicles because of its accessible location.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $26 - $52 |
| New OEM (ACDelco) Sensor | $30 - $55 |
| Shop Labor | $100 - $180 |
| Total Estimated Cost | $126 - $232 |
Cost estimates are based on national averages for parts and labor and may vary by location and repair shop.
Frequently Asked Questions (FAQ)
Where is the knock sensor located on a 2006-2009 Pontiac Solstice?
The knock sensor on the 2.4L engine is located on the driver's side of the engine block, just above the starter motor. It is held in by a single bolt and can be accessed from underneath the vehicle.
Can I replace the knock sensor myself?
Yes, this is a DIY-friendly job for someone with basic tools. 🎬 Watch this step-by-step guide on replacing the knock sensor. You will need to safely raise and support the vehicle, then work from underneath. The job involves removing one 13mm bolt and a single electrical connector. The most important step is to torque the new sensor to the correct specification (typically around 15-18 ft-lbs for this type of sensor) to ensure it functions correctly.
What does the code P0327 mean?
P0327 stands for "Knock Sensor 1 Circuit Low Input". This means the engine's computer is seeing a voltage from the sensor that is below the normal operating range, which usually points to a failed sensor or a problem in the wiring circuit.
🎬 Learn more about diagnosing and fixing a P0327 trouble code.Should I buy an OEM or aftermarket knock sensor?
For this specific part, it is highly recommended to use an OEM (ACDelco) or top-tier aftermarket brand like Delphi. Cheaper, lower-quality sensors are known to fail prematurely or have slightly different electrical properties that can prevent the check engine light code from clearing, forcing you to do the job twice.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12567711 12589373 12615500
Location: Engine block, driver's side, above starter. Bolt Size: 13mm. Torque Specification: Approximately 15-18 ft-lbs.
