Pontiac Solstice Vehicle Speed Sensor Guide for 2006-2009 Models
Is your Solstice's speedometer acting up or transmission shifting poorly? Your Vehicle Speed Sensor is the likely cause.
- A dead speedometer and harsh shifting are the top signs of a bad VSS in a Solstice.
- Quality aftermarket sensors are a reliable and cost-effective alternative to expensive OEM parts for this vehicle.
- This is a simple DIY replacement that requires basic tools and can be done in about an hour.
- Always check the sensor's wiring and connector for damage or corrosion before buying a new part.
Is Your Pontiac Solstice Speedometer Failing?
A faulty Vehicle Speed Sensor (VSS) is a common issue for the 2006-2009 Pontiac Solstice. This sensor provides essential speed data to your car's most important systems. When it fails, it can cause more than just an incorrect speedometer reading. For Solstice models with an automatic transmission, a bad VSS can lead to noticeable shifting problems that affect drivability. Fortunately, this is a straightforward part to diagnose and replace.
Symptoms of a Bad Vehicle Speed Sensor
The signs of a failing VSS are usually very clear. Look out for these common symptoms:
- Erratic or Dead Speedometer: The most obvious sign is a speedometer needle that jumps around randomly or doesn't move at all.
- Harsh or Delayed Shifting (Automatic Models): The transmission may shift hard, late, or at the wrong times because it isn't receiving an accurate speed signal.
- Cruise Control Won't Engage: The cruise control system relies on the VSS to function. If the sensor fails, the cruise control will be disabled.
- Check Engine Light: A faulty VSS will almost always trigger the Check Engine Light, storing trouble codes like P0502 or P0503. 🎬 Watch: How to diagnose and fix the P0502 code
ABS vs. VSS
Your Solstice has both Vehicle Speed Sensors (VSS) and wheel speed sensors (part of the ABS). The VSS measures speed from the transmission for the speedometer and shifting. Wheel speed sensors measure individual wheel speeds for the Anti-lock Braking System (ABS) and traction control. While they perform similar functions, they are different parts in different locations.
Choosing the Right Aftermarket Speed Sensor
For the Pontiac Solstice, you don't need to pay high dealer prices for an OEM sensor. Quality aftermarket brands offer reliable performance at a much lower cost. These brands are designed to meet or exceed original equipment specifications.
- Premium Aftermarket (Standard Ignition, Walker Products, Vemo): These brands are well-regarded in the industry for producing quality sensors that are durable and provide accurate signals. They are an excellent balance of price and OEM-level performance.
- Budget-Friendly (True Tech): For owners looking for the most cost-effective solution, these brands provide a functional replacement that will get your speedometer and transmission working correctly again.
Cost of Replacing a Pontiac Solstice VSS
| Part/Service | Estimated Cost |
|---|---|
| New OEM Sensor | $80 - $120 |
| New Aftermarket Sensor | $29.79 - $59.94 |
| Shop Labor | $100 - $150 |
| Total (DIY with Aftermarket) | $29.79 - $59.94 |
| Total (Shop Install with Aftermarket) | $130 - $210 |
Cost estimates are based on market research and may vary by location and supplier.
Pro Tip: Check the Connector
Before replacing the sensor, inspect the wiring and electrical connector. Sometimes, a loose connection or corroded pins can mimic the symptoms of a failed sensor. Cleaning the connector or ensuring it's securely plugged in might solve the problem for free.
Frequently Asked Questions (FAQ)
Where is the Vehicle Speed Sensor located on a 2006-2009 Pontiac Solstice?
The VSS is located on the exterior of the transmission. For manual transmission models, it's on the driver's side of the transmission housing. For automatic models, there are two sensors (input and output); the one you need to replace is the Output Speed Sensor (OSS), located towards the rear of the transmission. You will need to safely raise the vehicle to access it.
Can I replace the VSS myself?
Yes, this is a very DIY-friendly job for someone with basic tools. The process involves disconnecting the electrical plug, removing a single 10mm bolt, and carefully prying the old sensor out of the transmission. 🎬 See this walkthrough on how to replace the sensor The most common challenge is limited space to work.
🎬 Pro Tip: How to remove a stuck or broken sensorIs there a recall on the Pontiac Solstice speed sensor?
No. There are no recalls or technical service bulletins (TSBs) specifically for the Vehicle Speed Sensor on the 2006-2009 Pontiac Solstice. There is a well-known safety recall (NHTSA #17V061) for the passenger seat sensor (PPS) that affects airbag operation, but this is a completely different part and system.
What happens if I don't replace a bad VSS?
While the car will still run, driving with a bad VSS is not recommended. You won't know your actual speed, which is a safety risk. In automatic models, continued driving with harsh and improper shifting can cause premature wear on your transmission's internal components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 89060098 24279827 96041860

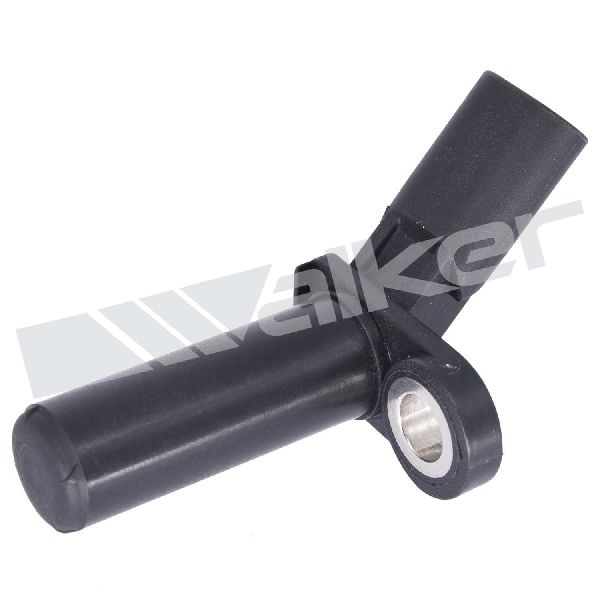

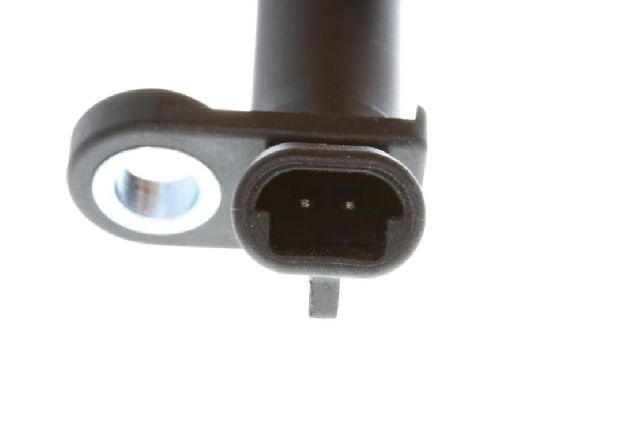

The sensor is typically a magnetic pulse generator held in place by a single bolt on the transmission housing. It features a 2-pin electrical connector. The correct part depends on whether the vehicle has a manual or automatic transmission.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
