A Guide to the Manifold Absolute Pressure Sensor for the 2006-2009 Volkswagen Rabbit
Understanding the MAP sensor in your 2.5L Rabbit engine and how to fix common problems.
- The check engine light with code P0106 is often caused by a faulty PCV valve or the need for a software update, not a bad MAP sensor.
- Bosch is the Original Equipment Manufacturer (OEM); choosing a Bosch aftermarket sensor is the most reliable option for your Rabbit.
- Before replacing the sensor, inspect the intake manifold for oil contamination, which points to a bad PCV valve.
- The physical replacement is very easy, located on the front of the intake manifold and held by a single screw.
Is Your Rabbit's MAP Sensor Failing?
When a MAP sensor has issues, your car's computer gets bad information. This can make your Rabbit run poorly. You might notice a few key symptoms that point to a problem with this sensor or its related parts.
Common Symptoms of a Bad MAP Sensor:
- Check Engine Light: This is the most common sign. The light will turn on, and a code scan will often show P0106, P0107, or P0108.
- Rough Idle: Your engine might shake or idle unevenly when you're stopped.
- Poor Engine Performance: The car may feel sluggish, hesitate when you accelerate, or lack power.
- Bad Fuel Economy: If the computer can't get an accurate pressure reading, it might use more fuel than necessary.
- Stalling or Hard Starting: In more serious cases, the engine might stall or be difficult to start.
A Critical Note on Code P0106
For the 2.5L engine in the 2006-2009 Rabbit, the code P0106 (Implausible Signal) is very common. However, this code does NOT always mean the MAP sensor is bad. Volkswagen issued Technical Service Bulletins (TSBs) stating that the engine computer's software was too sensitive and could trigger this code by mistake. Before replacing any parts, a dealer may need to perform a simple software update. Another very common cause is a failed PCV valve diaphragm, which allows oil to leak into the intake manifold and coat the sensor.
Choosing the Right Aftermarket MAP Sensor
If you've ruled out software issues and PCV problems, and have confirmed the sensor itself is faulty, choosing the right replacement is key. Not all aftermarket brands are created equal.
Brand Quality Tiers for Your VW Rabbit
- OEM-Quality (Recommended): Bosch is the original equipment manufacturer (OEM) for Volkswagen. This means the Bosch sensor you buy from an aftermarket seller is the exact same part that came in your car from the factory, just in a different box. For reliability and guaranteed fit, Bosch is the safest choice. Brands like Hella and Vemo also have a strong reputation for supplying quality parts to German automakers.
- Reputable Aftermarket: Brands like Delphi, Standard Ignition (SMP), and Spectra are well-known in the aftermarket and generally produce reliable parts that meet or exceed OEM specifications. They are a solid choice if Bosch is not available.
- Economy Brands: Brands like URO Parts, Facet, Holstein, and others offer a lower price point. While they may function correctly, their long-term durability and the precision of their readings might not match the higher-tier brands. For a critical engine sensor like the MAP, it's usually best to invest in a proven brand.
Pro Tip: Check the PCV Valve First
Many owners have replaced their MAP sensor only to have the check engine light return because the real problem was a torn PCV valve diaphragm. This is a common failure item on the 2.5L engine that causes oil to contaminate the MAP sensor. Before buying a new sensor, inspect the PCV system. If you find oil pooled in the intake manifold where the sensor sits, you've likely found the root cause.
Cost of Replacing a MAP Sensor (2006-2009 VW Rabbit)
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $110 - $180 |
| New Aftermarket (DIY) | $27 - $125 |
| Shop Labor | $40 - $60 |
| Total Professional Replacement | $120 - $220 |
Frequently Asked Questions
Where is the MAP sensor located on my 2006-2009 Rabbit?
The MAP sensor is located on the front of the plastic intake manifold, just below the throttle body. It is held in place by a single Torx screw and is very easy to access after removing the engine cover.
Is replacing the MAP sensor a difficult job?
No, replacing the sensor itself is very easy and requires only basic tools. It's a great job for a DIYer. The difficulty rating is 1 out of 5. The challenge is correctly diagnosing the problem first.
Do I need to do anything after installing a new MAP sensor?
After installing the new sensor, you should use an OBD2 scanner to clear the fault codes from the engine computer. The check engine light may turn off on its own after a few driving cycles, but it's best to clear the codes manually.
Why did my check engine light come back after replacing the sensor?
This is a common complaint. If the light returns with the same MAP sensor code, the cause is likely not the sensor. The most probable culprits are a needed ECM software update (per TSBs) or a failed PCV valve causing oil contamination.
Can I just clean my old MAP sensor?
If the sensor is contaminated with oil from a bad PCV valve, you can try cleaning it with a dedicated mass air flow or electronics cleaner. However, forum users report mixed results; sometimes cleaning works, but often the oil has already damaged the sensor's internal components, and replacement is necessary. Given the low cost of a new sensor, replacement is often the more reliable repair.
Technical Specifications
OEM Part Numbers: 036906051G 03C906051F

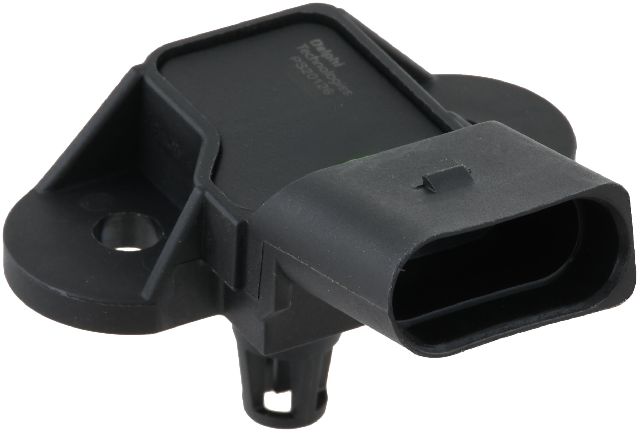

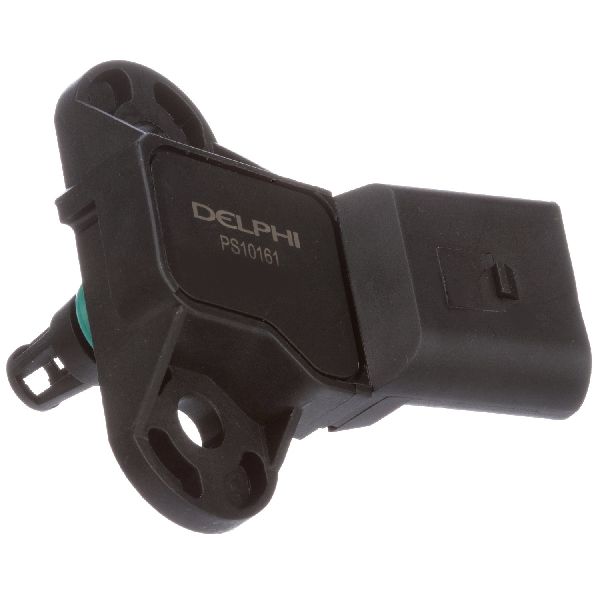

Typically a 4-pin, oval connector sensor that mounts directly to the intake manifold.
