Engine Camshaft Position Sensor Guide for the 2006-2009 Workhorse W16
Solve starting issues and poor engine performance on your Workhorse W16 by understanding its camshaft position sensor.
- A failing camshaft sensor on the W16 can cause critical issues like stalling or a no-start condition.
- Common trouble codes are P0340, P0341, and P0342; get your codes scanned to confirm the issue.
- Replacement is simple, requiring only basic tools, and is located on the front of the 8.1L engine.
- Quality aftermarket brands like Standard Ignition are a reliable, cost-effective alternative to more expensive OEM parts.
Symptoms of a Failing Camshaft Position Sensor
A bad camshaft position sensor on the Workhorse W16 will usually trigger the Check Engine Light and cause noticeable driving issues. Because the sensor's signal is essential for engine timing, a failure can disrupt the combustion cycle. You might experience difficulty starting the engine, or it may crank but not start at all. Other common symptoms include a rough idle, sudden engine stalling, hesitation or jerking during acceleration, and a general loss of engine power.
Don't Confuse with the Crankshaft Sensor
Your W16's 8.1L engine also has a Crankshaft Position Sensor, which can cause very similar symptoms, including a no-start condition. Diagnostic codes can help you tell which sensor has failed. The camshaft sensor is located on the driver's side of the engine front, while the crankshaft sensor is in a different position.
Choosing the Right Aftermarket Sensor
When replacing the camshaft position sensor, you have a choice between OEM and aftermarket parts. For a vehicle like the Workhorse W16, high-quality aftermarket parts offer a reliable and cost-effective solution. Electronic sensors are a part category where quality matters, as a poorly made sensor can fail quickly or provide inaccurate readings right out of the box.
- Standard Ignition: This is a well-regarded brand in the aftermarket industry, known for producing parts that meet or exceed original specifications. It's a solid choice for reliability and is often recommended by professional mechanics.
- True Tech: Positioned as a more budget-friendly option from Standard Motor Products, True Tech provides a functional replacement that meets basic requirements. For a critical sensor like this, opting for a higher-tier brand like Standard Ignition is often worth the small price difference for added peace of mind.
Both brands are designed to be direct-fit replacements, making installation straightforward without any modifications needed.
Replacement Cost
The cost to replace the camshaft position sensor on a 2006-2009 Workhorse W16 is reasonable, especially if you do the work yourself. The part itself is affordable, and labor time is minimal for a professional mechanic.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Sensor | $110 - $140 |
| New Aftermarket Sensor (Standard, True Tech) | $39 - $57 |
| Shop Labor | $60 - $120 |
| Total Professional Replacement (Aftermarket) | $99 - $177 |
Pro Tip: Replacing this sensor is a simple DIY job. It's held by a single bolt and is accessible from the front of the engine, potentially saving you over $100 in labor costs.
Frequently Asked Questions (FAQ)
Where is the camshaft position sensor on a Workhorse W16?
On the 8.1L V8 engine used in the W16 chassis, the camshaft position sensor is located on the front of the engine, on the driver's side, near the bottom of the engine block. It is held in place by a single 10mm bolt.
Can I replace this sensor myself?
Yes, this is a DIY-friendly repair. The process involves disconnecting the battery, unplugging the electrical connector, removing one bolt, and carefully twisting the old sensor out. Always lubricate the O-ring on the new sensor with fresh engine oil before installing it to ensure a proper seal.
Are there any recalls for the W16 camshaft position sensor?
No, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the camshaft position sensor on the 2006-2009 Workhorse W16 or its 8.1L engine.
What happens if I don't replace a bad camshaft sensor?
Ignoring a failing camshaft sensor can lead to significant issues. Your vehicle may stall unexpectedly in traffic, which is a serious safety risk. It can also lead to a no-start condition, leaving you stranded. Continued driving with a bad sensor can also cause poor fuel economy and potentially damage other components like the catalytic converter over time due to incorrect fuel and spark timing.
Technical Specifications
OEM Part Numbers: W8832954

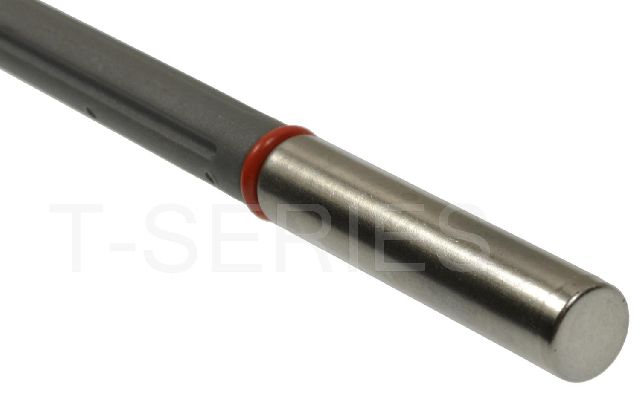

This is a 3-pin magnetic sensor designed for the GM 8.1L V8 engine. It includes a new O-ring for proper sealing.
