A Guide to the 2006-2010 BMW 650i Engine Coolant Pipe
If you own a V8-powered BMW 650i, it's not a matter of if the coolant pipe will leak, but when.
- The coolant transfer pipe leak is a guaranteed problem for the 2006-2010 BMW 650i's N62 engine.
- The aftermarket collapsible pipe is the standard, most cost-effective solution, saving thousands in labor compared to the OEM method.
- Symptoms include a coolant leak from the front 'weep hole', low coolant warnings, and potential overheating.
- This is a complex, 10+ hour repair; while you're in there, replace the valley pan, water pump, and thermostat.
The Notorious N62 Coolant Pipe Leak
The coolant transfer pipe in the N62 engine, found in the 2006-2010 650i, is a well-known and extremely common failure point. The problem isn't the metal pipe itself, but the rubber seals at each end. Over time, constant exposure to heat cycles and coolant causes these seals to harden, crack, and degrade. This leads to a coolant leak that starts small and only gets worse. The failure can happen in as little as 40,000 miles. Because of its location, the repair is one of the most involved jobs on this engine.
OEM vs. Aftermarket: A Clear Winner
For this specific repair, the aftermarket has developed a far superior solution. The original BMW (OEM) pipe is a single, solid piece. To replace it the factory way requires a massive amount of labor, including removing the intake manifold, valve covers, and the entire front timing cover of the engine. This is a 40-60 hour job that can cost between $8,000 and $10,000 at a dealership.
Aftermarket brands like URO Parts and Vaico developed a collapsible or two-piece coolant pipe. This clever design allows a mechanic to cut out the old, leaking pipe and install the new one without removing the timing cover. 🎬 Watch a mechanic demonstrate the collapsible pipe installation process. This dramatically reduces labor time and brings the total cost of the job down to a much more manageable level, often under $3,000. For this reason, nearly all independent shops and DIYers use an aftermarket collapsible pipe.
Choosing Your Aftermarket Pipe
When shopping for a replacement, you'll find several aftermarket options, primarily the collapsible pipe kits.
- URO Parts: This is one of the most well-known brands for this specific part. Their collapsible pipe kit is a popular, cost-effective solution that includes the telescopic pipe and new, improved seals. Some URO Premium kits feature seals made from EPDM silicone, which is more durable than the original rubber. While some online forums show mixed reviews, many owners have had success with the URO pipe, with some reporting it has lasted nearly 100,000 miles.
- Vaico: Vaico also offers a replacement coolant pipe for the N62 engine. It is designed to be a direct replacement and addresses the common leak issue. Quality is considered aftermarket, and like other solutions, it aims to provide a more cost-effective repair than the OEM dealer option.
Cost to Replace the Engine Coolant Pipe
| Part Type | Part Cost | Labor Cost (Aftermarket Method) | Total Cost (Aftermarket Method) |
|---|---|---|---|
| New OEM (Not Recommended) | $100 - $200 | $4,000 - $7,000+ | $8,000 - $10,000+ |
| New Aftermarket (Collapsible) | $150 - $350 | $1,500 - $2,500 | $1,700 - $2,850 |
Note: Costs are estimates and will vary based on your location, the specific shop, and what other parts are replaced during the job. The OEM repair cost is shown for comparison; the aftermarket method is the standard repair.
Frequently Asked Questions
Is there a recall for the 650i coolant pipe?
No, there has not been a specific safety recall for the N62 engine's coolant transfer pipe. Recalls are typically issued for safety defects, and while this is a major and expensive flaw, it is not considered a safety issue by the NHTSA. There are recalls for other BMW models concerning electric water pumps, but these do not apply to the 2006-2010 650i's main coolant pipe issue.
Can I do this repair myself?
This is an advanced DIY repair. It requires extensive disassembly of the top of the engine, including the fuel injection system and intake manifold. You will also need to cut the old pipe out of the engine block. While many skilled DIYers have completed the job successfully, it is considered difficult and time-consuming, often taking a full weekend or more. If you are not comfortable with complex, multi-day repairs, it is best to leave this to a professional mechanic experienced with BMWs.
How do I know for sure the coolant pipe is leaking?
BMW designed a "weep hole" into the front timing cover for this exact purpose. Look at the front of your engine, near the water pump. You will see a small hole. If you see pink or blue residue (dried coolant) or an active drip coming from this hole, it is a definitive sign that your internal coolant pipe seal has failed.

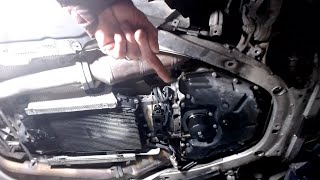

🎬 See a visual guide on identifying typical N62 coolant leak locations.What other parts should I buy with the coolant pipe kit?
At a minimum, you should also purchase a new valley pan gasket, intake manifold gaskets, a water pump gasket, and new coolant. It is also wise to replace the water pump, thermostat, and the small heater hose that runs across the valley pan, as these are all common failure items and you'll have easy access to them.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11141439975
Collapsible/Telescopic Aluminum Pipe
