Engine Camshaft Position Sensor Guide for the 2006-2010 Ford F-150
Solve stalling, rough idle, and starting problems in your F-150 by understanding this critical engine sensor.
- A failing sensor commonly causes stalling, rough idle, and no-start issues, with DTC codes P0340, P0344, P0345, or P0349.
- Replacement is an easy DIY job, requiring only basic tools and about 30-60 minutes.
- For the 5.4L Triton V8, these codes can also point to more serious timing phaser issues, not just a bad sensor.
- Using a quality aftermarket brand (like Delphi, NGK, Standard Ignition) or OEM Motorcraft is recommended for reliability.
Is Your F-150 Stalling or Running Rough? It Could Be the Camshaft Sensor.
If your 2006-2010 Ford F-150 is experiencing sudden stalling, a rough idle, trouble starting, or has the check engine light on, a failing camshaft position sensor is a common culprit. This sensor tells your engine's computer the exact position of the camshafts, which is critical for proper engine timing. When the sensor fails, the computer gets bad information, leading to poor engine performance.
🎬 See the 7 telltale signs of a bad camshaft position sensor.A Warning for 5.4L 3V Triton Engine Owners
While a bad sensor is a common issue, on the 5.4L 3V Triton engine, camshaft position sensor error codes (like P0340 and P0345) can also be the first sign of a more serious internal timing problem. Issues with cam phasers, timing chain tensioners, or guides can cause the camshaft's position to be incorrect, which makes the computer think the sensor has failed. If a new sensor doesn't fix the issue, or if you hear a ticking or rattling noise from the front of the engine, it is highly recommended to have a professional mechanic diagnose a potential timing system problem.

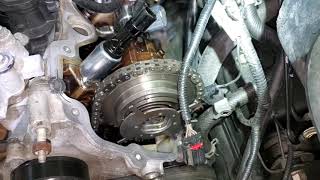

🎬 Watch: How to tell if your sensor code is actually mechanical failure.Choosing the Right Aftermarket Sensor
When shopping for a replacement, you have options ranging from budget-friendly to premium aftermarket brands. For a critical electronic sensor like this, quality matters. A cheap, poorly made sensor can fail quickly, leaving you with the same problems.
- Premium Aftermarket (Recommended): Brands like Delphi, Denso, NGK (also sold as NTK), and Standard Ignition (SMP) have a strong reputation for producing reliable electronics that meet or exceed OEM standards. For a part that can cause your truck to stall, spending a little more for one of these brands is a smart investment.
- Standard Aftermarket: Brands like Dorman, Holstein, and Spectra offer a balance of value and quality. They are a dependable choice for many repairs and are widely available.
- Budget-Friendly: Other brands offer the lowest price point. While tempting, be aware that the long-term reliability may not match that of premium brands.
Pro Tip: The original factory sensor is made by Motorcraft. When in doubt, comparing an aftermarket part to the look and feel of an OEM Motorcraft sensor can give you an idea of its quality. For this specific part, many professional mechanics recommend using either Motorcraft or a top-tier aftermarket brand to avoid repeat failures.
Cost of Replacing the Camshaft Position Sensor
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket | $13.76 - $79.28 |
| New OEM (Motorcraft) | $30 - $70 |
| Shop Labor | $60 - $150 |
Frequently Asked Questions (FAQ)
Where are the camshaft position sensors located on a 2006-2010 F-150?
On the common V8 engines (4.6L and 5.4L), there are two sensors. They are located on the front of the engine, near the top of the valve covers on each side (one for the driver's side, one for the passenger's side). They are small, held in by a single bolt, and have an electrical connector attached.
Can I replace this sensor myself?
Yes, this is a very DIY-friendly job. The sensor is typically held in by a single 8mm or 10mm bolt and is easy to access, especially on the passenger side. The driver's side sensor may require you to remove the air intake tube for better access. The entire job can usually be done in under an hour with basic hand tools.
🎬 Watch this walkthrough for replacing both Bank 1 and Bank 2 sensors.What happens if I don't replace a bad camshaft sensor?
Ignoring a failing camshaft sensor can lead to several problems. You will likely experience worsening fuel economy, poor acceleration, and a rough idle. The most serious risk is that the engine may stall unexpectedly while you are driving, which is a significant safety hazard. In some cases, the truck may eventually fail to start at all.
Do I need to replace both sensors at the same time?
It is not strictly necessary, but it is often recommended. The sensors are the same age and have been exposed to the same conditions. If one has failed, the other may not be far behind. Replacing them in pairs can save you from having to do the same job twice in the near future.
Helpful Videos
Technical Specifications
OEM Part Numbers: DU-70 F7TZ-12K073-B
For V8 models, two sensors are required (one per bank). The sensor is a Hall-effect type sensor held in by a single bolt.
