Engine Oil Pan Gasket Replacement for the 2006-2010 Jeep Commander
Seeing oil spots under your Commander? It's a common sign that your oil pan gasket has failed.
- Oil pan gasket replacement on a 2006-2010 Jeep Commander is a difficult job, especially on 4x4 models, and professional installation is strongly recommended.
- Always confirm your specific engine (3.7L, 4.7L, or 5.7L) before ordering a new gasket set to ensure a proper fit.
- The high cost of this repair is due to extensive labor, not the part itself.
- Before authorizing the repair, ensure a mechanic has confirmed the oil pan gasket is the true source of the leak.
Is Your Jeep Commander Leaking Oil?
An oil leak is one of the most common issues for any vehicle, and the 2006-2010 Jeep Commander is no exception. The oil pan gasket, located at the very bottom of the engine, is a frequent source of these leaks. While a few drops on your driveway might not seem like a big deal, a persistent leak can lead to dangerously low oil levels, causing catastrophic engine damage. It's also a safety hazard, as leaking oil can drip onto hot exhaust components and create smoke or even a fire.
Symptoms of a Failing Oil Pan Gasket
- Visible Oil Puddles: The most obvious sign is finding fresh, dark brown or black oil spots on the ground where you park.
- Low Oil Level Warning: If the leak is significant, your dashboard's low oil light may illuminate. Do not ignore this warning.
- Burning Oil Smell: Oil dripping onto the hot exhaust system will burn off, creating a distinct and unpleasant smell while you're driving or stopped.
- Smoke from the Engine Bay: In more severe cases, you might see smoke coming from under the hood as the leaking oil contacts hot engine parts.
Confirm the Source of the Leak
Before you replace the oil pan gasket, it's crucial to be certain that's where the leak is coming from. Oil from a leaking valve cover gasket or oil pressure sensor can run down the engine and mimic an oil pan leak. A mechanic can use a special UV dye to pinpoint the exact source of the leak.

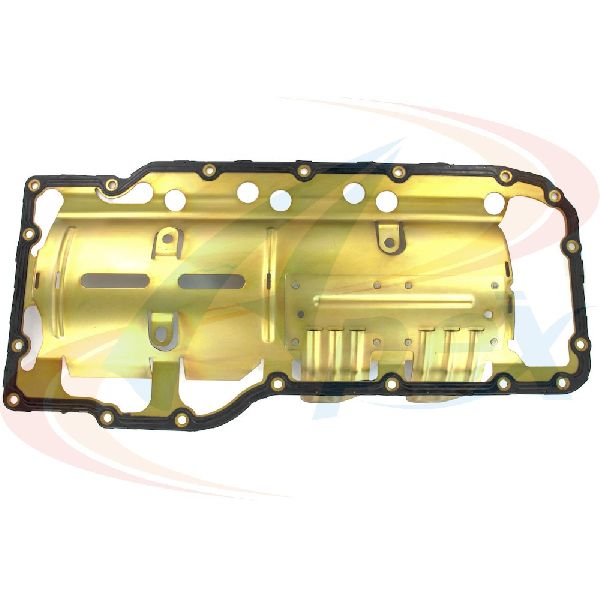

Choosing an Aftermarket Gasket Set
When replacing the oil pan gasket, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For a vehicle like the Commander, high-quality aftermarket gaskets can offer comparable or even superior performance to the original, often at a better price. The key is to choose a reputable brand.
- Premium Brands (Reinz, Victor Gaskets): Often considered OE-quality or better, brands like Victor Reinz are known for their precision and use of high-quality materials. They are a strong choice for a long-lasting, reliable seal, especially on European vehicles, but their quality is respected across the board.
- Standard Brands (Omix-Ada, Apex): Omix-Ada specializes in Jeep parts and generally provides a good fit. Apex is a more budget-friendly option. While some users have success with them, others prefer to stick with more established names like Fel-Pro (a well-regarded competitor) or Victor Reinz for critical jobs like this to avoid potential rework.
Pro-Tip: Check Your Engine
The 2006-2010 Jeep Commander was available with three different engines: the 3.7L V6, the 4.7L V8, and the 5.7L HEMI V8. Each requires a specific oil pan gasket. Always verify your engine size before ordering to ensure you get the correct part.
Cost to Replace a Jeep Commander Oil Pan Gasket
This is not a simple job, especially on 4x4 models. The front differential and/or subframe often needs to be lowered or removed to access the oil pan, which significantly increases labor time. This makes the professional labor cost much higher than the cost of the part itself.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $45 - $102 |
| Shop Labor | $441 - $647 |
| Total Professional Replacement | $623 - $837+ |
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself (DIY)?
For most home mechanics, this is a very difficult job. On 4x4 models, it requires dropping the front axle and potentially lifting the engine. On 2WD models, the steering rack may need to be moved and the engine lifted. Due to the complexity and need for special tools like an engine brace, professional installation is highly recommended.
Do I need to use RTV sealant with the new gasket?
It depends on the gasket type. Many modern gaskets are designed to be installed dry. However, a small dab of RTV sealant is often required at the corners where engine components meet, such as where the timing cover meets the engine block. The mechanic in one video recommends a light coating of RTV. Always follow the instructions included with your specific gasket set.
Are there any recalls for oil leaks on the Jeep Commander?
Searches of the NHTSA database did not show any specific recalls for the engine oil pan gasket on the 2006-2010 Jeep Commander. Most oil leaks are considered a maintenance issue rather than a safety defect requiring a recall.
Should I replace the oil pan too?
You should inspect the oil pan for damage, rust, or warping when it is removed. If the pan is damaged or the drain plug threads are stripped, it should be replaced at the same time as the gasket. Otherwise, if it's in good condition, you can reuse the original pan.
Technical Specifications
OEM Part Numbers: 53021001AB 4792874AA 53020675AE
The replacement procedure is complex, often requiring the engine to be lifted and the front subframe or differential to be lowered for access, particularly on 4x4 models. This makes it a labor-intensive repair.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
