Jeep Commander Ignition Knock Sensor: A 2006-2010 Owner's Guide
Hearing engine pinging or seeing a check engine light? Your knock sensors might be the culprit.
- Replacement difficulty and cost depend entirely on your engine. The 3.7L/4.7L V8s are a major job, while the 5.7L HEMI is much simpler.
- Always replace both knock sensors at the same time, especially if you have the 3.7L or 4.7L engine, to save on future labor costs.
- Using the correct torque (15 ft-lbs) on the mounting bolt is essential for the new sensor to function properly.
- Reputable aftermarket brands like NGK, Delphi, and Standard Ignition offer a reliable, cost-effective alternative to OEM parts.
Is Your Jeep Commander Knock Sensor Failing?
A bad knock sensor can cause a range of problems, from annoying sounds to poor engine performance. Because the sensor's job is to protect your engine, the vehicle's computer will put the engine into a safe mode when the sensor fails. This results in reduced power and fuel economy to prevent damage. Ignoring a failing knock sensor can lead to more serious engine problems over time.
Symptoms of a Bad Knock Sensor
Common signs of a failing knock sensor on a 2006-2010 Jeep Commander include:
- Check Engine Light: This is the most common symptom. The light will come on and store a trouble code like P0325 or P0330. 🎬 Watch: Understanding the causes and fixes for code P0325
- Engine Pinging: You might hear a metallic pinging or knocking sound, especially when the engine is under load, like going up a hill or accelerating hard.
- Poor Acceleration: The vehicle may feel sluggish or hesitant when you press the gas pedal.
- Reduced Fuel Economy: When the computer can't get a proper signal, it runs a less efficient engine map, causing you to use more fuel.
Engine-Specific Replacement Warning
The location of the knock sensors and the difficulty of replacing them are very different depending on your Commander's engine. This is the most important factor affecting repair cost and time.

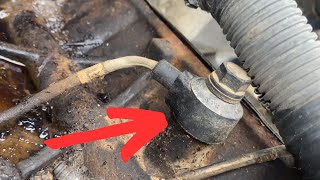

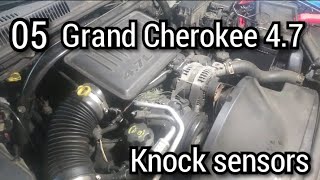

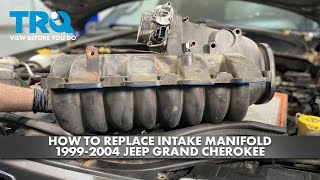

- 3.7L V6 & 4.7L V8: The two knock sensors are located in the valley of the engine, underneath the intake manifold. Replacing them is a significant job that requires removing the entire intake manifold. 🎬 See this walkthrough for 4.7L knock sensor location and replacement This is a 4-5 hour job 🎬 Watch: Step-by-step guide to removing the intake manifold for an experienced mechanic.
- 5.7L HEMI V8: The two knock sensors are bolted to the sides of the engine block, located under the exhaust manifolds. While still in a tight spot, they are much easier to access than on the other engines and do not require removing the intake manifold.
Choosing the Right Aftermarket Knock Sensor
For a part like this, you don't necessarily need to buy the expensive OEM Mopar part. Many aftermarket brands offer excellent quality and reliability for a fraction of the price. However, not all brands are created equal. It's best to avoid the cheapest options, as some have been known to fail prematurely.
Brand Quality Tiers
- Tier 1 (OEM Quality): Brands like NGK (NTK), Delphi, and Standard Ignition (SMP) are known for producing sensors that meet or exceed original equipment standards. They are a reliable choice for long-term performance. Bosch is another excellent OE supplier.
- Tier 2 (Reputable Aftermarket): Brands such as Beck Arnley, Walker Products, and Crown Automotive offer a good balance of quality and value. Crown specializes in Jeep parts and is a popular choice in the Jeep community.
- Tier 3 (Economy): These are the lowest-priced options. While tempting, their quality control can be inconsistent. It's often worth spending a little more to get a sensor from a more reputable brand to avoid doing the job twice, especially on the 3.7L and 4.7L engines where labor is intensive.
Pro Installation Tip
Proper torque on the mounting bolt is critical for the sensor to work correctly. The bolt must be tightened to exactly 15 ft-lbs. Over or under-tightening the bolt will change the sensor's sensitivity and can cause it to send incorrect signals to the computer. Do not use any thread sealant.
Cost to Replace a Jeep Commander Knock Sensor
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Mopar) Part | $83 - $194 each |
| New Aftermarket Part | $21 - $86 each |
| Shop Labor (5.7L HEMI) | $100 - $225 |
| Shop Labor (3.7L V6 / 4.7L V8) | $400 - $750 |
Cost estimates are for reference only and may vary based on your location and the specific repair shop. Labor costs are significantly higher for the 3.7L and 4.7L engines due to the need to remove the intake manifold.
Frequently Asked Questions
Can I replace just one knock sensor?
Yes, but it is highly recommended to replace both at the same time, especially on the 3.7L and 4.7L engines. The labor to access them is the same, and if one sensor has failed due to age, the other is likely not far behind. This saves you from paying for the same difficult repair in the near future.
Are there any recalls for the knock sensor on my Jeep Commander?
No, there are no specific recalls or technical service bulletins (TSBs) for the knock sensors on the 2006-2010 Jeep Commander. However, there was a major safety recall (NHTSA 14V-438) for the ignition switch on 2006-2007 models that could cause a loss of engine power, a symptom that could be confused with a sensor issue.
What happens if I don't replace a bad knock sensor?
Your engine's computer will constantly operate in a 'safe' mode, meaning you'll have permanently reduced power and poor fuel economy. More importantly, if a real engine knock condition develops, the computer won't be able to detect and correct it, which could lead to severe and expensive internal engine damage over time.
Why is the repair so much more expensive for the 3.7L and 4.7L engines?
The expense comes from labor, not the parts. On these engines, the sensors are buried under the intake manifold. A mechanic must spend several hours carefully disassembling the top of the engine to get to them, and then reassemble everything. On the 5.7L HEMI, the sensors are on the side of the block and much easier to reach.
Helpful Videos
Technical Specifications
OEM Part Numbers: 56028563AA 5033316AA 4606093AE 56041677AB

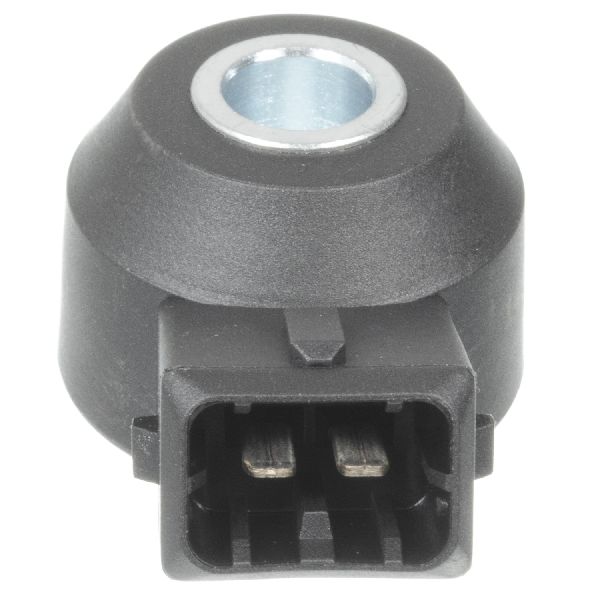

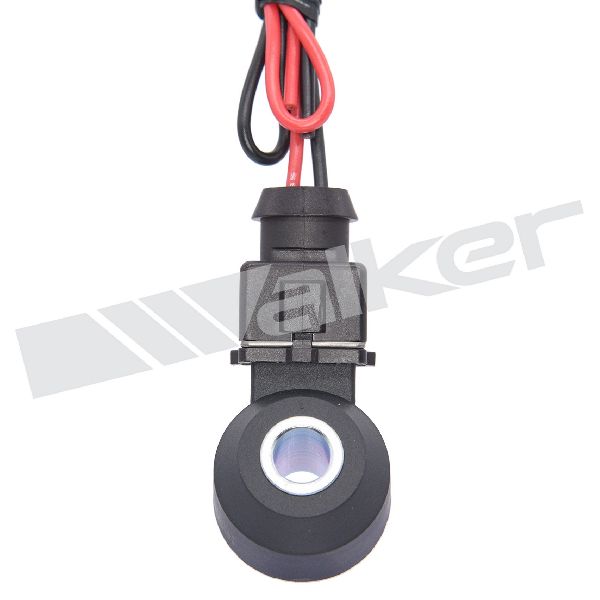

The 2006-2010 Jeep Commander uses two piezoelectric-type knock sensors, one for each cylinder bank. The mounting bolt torque specification is 15 ft-lbs (20 Nm).
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
