A/C Compressor Replacement Guide for the 2006-2010 Mazda B4000
Get your truck's A/C blowing ice-cold again by understanding how to choose the right new compressor.
- The 2006-2010 Mazda B4000 uses the same A/C components as the Ford Ranger with the 4.0L engine.
- When replacing the compressor due to internal failure, you MUST also replace the accumulator and orifice tube to prevent immediate damage to the new part.
- A loud growl on startup might be a normal function, but persistent grinding or squealing means the compressor is failing.
- While you can replace the compressor yourself, the system must be professionally evacuated and recharged to comply with laws and ensure proper operation.
Is Your B4000's A/C Compressor Failing?
When the A/C compressor in your 2006-2010 Mazda B4000 starts to go, it will give you a few warning signs. Because the B4000 is a mechanical twin to the Ford Ranger 4.0L, the symptoms are well-documented. Paying attention to these signs can help you diagnose the problem before the compressor fails completely.
Common Failure Symptoms:
- No Cold Air: This is the most obvious sign. If the compressor isn't working, the refrigerant can't be pressurized to cool your cabin.
- Loud Noises: A grinding or growling sound when you turn the A/C on often points to a failing bearing inside the compressor or clutch. A chattering or squealing noise can also indicate a problem.
- Clutch Not Engaging: The front of the compressor has a clutch that should click and start spinning when you turn on the A/C. If it stays still, wobbles, or you see smoke, the clutch or the compressor itself has likely failed.
- Rapid Cycling: If the compressor turns on and off every few seconds, it can be a sign that the system is low on refrigerant due to a leak, which could be coming from the compressor seals.
A Note on Normal Noises
Some B4000 and Ranger trucks have a feature called Compressor Anti-Slugging Strategy (CASS). On a warm day after the truck has been off for hours, the compressor may make a loud ratcheting or growling noise for a few seconds on startup. This is the system clearing out liquid refrigerant to prevent damage and is considered normal. If the noise is persistent or happens every time the A/C is on, it's a sign of a problem.
Choosing the Right Aftermarket A/C Compressor
When replacing the A/C compressor on your B4000, you have several options. The original compressor was made by Motorcraft (Ford's OEM parts brand). While you can buy a new Motorcraft part, high-quality aftermarket options can offer similar performance for less money.
Brand Quality Tiers
- OEM / Premium Aftermarket (Denso, Valeo, Motorcraft): Denso is a well-regarded OEM supplier for many brands and is known for producing high-quality compressors that are often built to factory standards. Motorcraft is the original part and a guaranteed fit, though it's the most expensive option. Valeo is another reputable OEM supplier. These brands are your best bet for longevity and quiet operation.

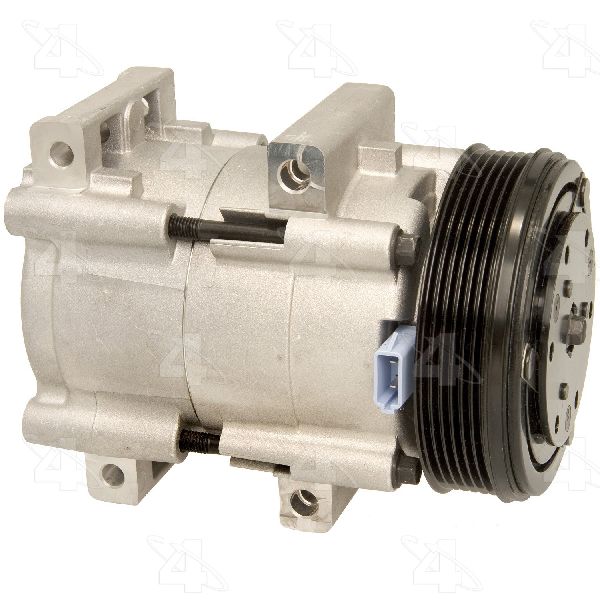

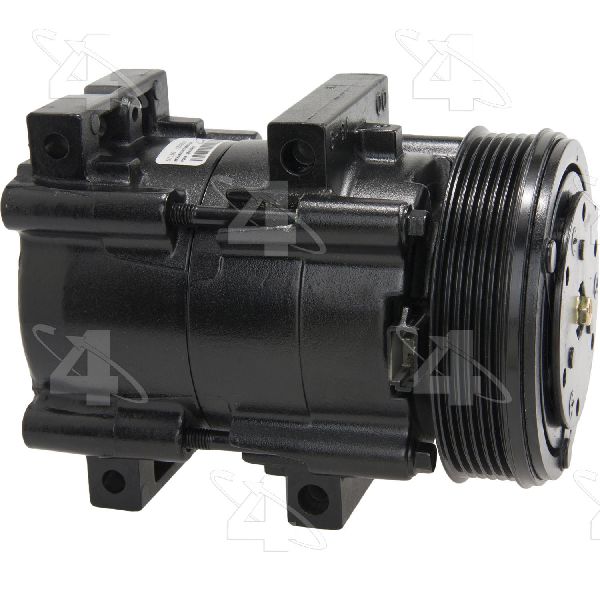

- Quality Aftermarket (Four Seasons): Four Seasons is a very common aftermarket brand for A/C components. While some users report good experiences, others have noted that quality can be inconsistent, with some units being noisy from the start. They are a viable mid-range option.
- Economy (Global Parts, Replacement): These brands offer the lowest price point. They can be a good choice for a budget repair or if you don't plan on keeping the truck for many more years. However, their long-term durability may not match the premium brands.
Don't Forget the Rest of the System!
When a compressor fails, it often sends small metal shavings throughout the A/C system. To prevent your new compressor from being destroyed, you must replace the A/C accumulator (also called the receiver/drier) and the orifice tube at the same time. It is also highly recommended to flush the rest of the system to remove any debris. Failing to do so will likely void the warranty on your new compressor and lead to another failure.
Cost of Replacing a 2006-2010 Mazda B4000 A/C Compressor
Here is a general breakdown of what you can expect to pay for the parts and labor. Prices can vary based on your location and the specific parts you choose.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Compressor | $175 - $450 |
| New OEM (Motorcraft) Compressor | $350 - $550 |
| Accumulator & Orifice Tube Kit | $25 - $50 |
| Shop Labor (including system evacuation and recharge) | $250 - $450 |
| Total Estimated Cost (Aftermarket) | $450 - $950 |
| Total Estimated Cost (OEM) | $625 - $1050 |
Frequently Asked Questions (FAQ)
Can I just replace the A/C clutch?

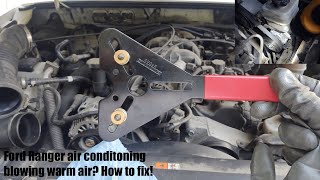

Sometimes, yes. If only the clutch bearing is bad (making noise) or the electromagnetic coil has failed, you can replace just the clutch assembly without opening the refrigerant system. 🎬 See how to replace the A/C compressor clutch on a 4.0L engine. However, if the compressor has failed internally or seized, you must replace the entire unit.
Are there any recalls or TSBs for the A/C system?
There are no specific recalls or Technical Service Bulletins (TSBs) from Mazda or Ford for A/C compressor failure on the 2006-2010 B4000/Ranger. Most issues are related to normal wear and tear. There were significant recalls for Takata airbags on these trucks, which should not be confused with A/C issues.
Is this a DIY job?
Replacing the compressor itself is mechanically straightforward for a DIYer with moderate experience. However, handling refrigerant requires special equipment to safely recover the old refrigerant and to pull a vacuum on the system before recharging it. It is illegal and harmful to the environment to release refrigerant into the atmosphere. For this reason, many DIYers replace the components themselves and then take the truck to a shop for a professional evacuation and recharge.
🎬 Watch a step-by-step guide on replacing the compressor and adding refrigerant.Why is my A/C blowing warm air after checking fuses and relays?
If you've confirmed the fuses and relays are good and the clutch still won't engage, the most common cause is low refrigerant. The system has pressure switches that prevent the compressor from turning on if the refrigerant level is too low, protecting it from damage. This indicates a leak in the system that must be found and repaired.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6L5Z-19V703-DA 6L5Z-19703-DA YCC-171
Fits 2006-2010 Mazda B4000 with 4.0L V6 Engine. Uses FS-10 style compressor. System requires R-134a refrigerant and PAG 46 oil. Always verify the specific oil capacity for your new compressor.
