A Guide to the Engine Timing Chain Guide for the 2006-2010 Pontiac G6
Hearing a rattling noise from your engine on startup? It could be a sign of a failing timing chain guide, a critical part you shouldn't ignore.
- You must identify your engine (2.4L I4 or 3.6L V6) as the timing chain problems and parts are completely different.
- Always replace the complete timing chain kit, including guides, tensioners, chains, and sprockets. Never replace just the guide.
- A rattling noise on startup is a serious warning sign that should be addressed immediately to prevent catastrophic engine failure.
- For the 3.6L V6, choose a high-quality aftermarket kit from a brand like Cloyes that is specifically designed to fix the original chain stretching defect.
Engine-Specific Issues: Not All G6 Engines Are the Same
When dealing with timing chain issues in a 2006-2010 Pontiac G6, you must first identify your engine. The problems and the necessary parts are very different depending on whether you have a 4-cylinder or a V6.
- 2.4L Ecotec (4-Cylinder): These engines are well-known for problems with their plastic timing chain guides. Over time, the guides can become brittle and break apart. The chain tensioner can also fail, leading to slack in the chain. The most common symptom is a distinct rattling noise for a few seconds 🎬 See a video example of the 2.4L engine timing rattle. when you start the engine.
- 3.6L LY7 (V6): This engine is notorious for premature timing chain stretching. The problem was so widespread that GM issued a Special Coverage Adjustment (11340C), extending the warranty for this specific issue. A stretched chain will cause the check engine light to come on with codes like P0008, P0016, and P0017. 🎬 Watch a full-length removal and installation for the 3.6L V6.
- 3.5L & 3.9L (V6): These engines use a different, more robust design and are not known for the same widespread timing chain problems as the 2.4L and 3.6L engines.
Symptoms of a Failing Timing Chain Guide
Ignoring these signs can lead to the chain breaking or jumping time, which can destroy your engine. Be alert for these warnings:
- Rattling Noise on Startup: This is the most common sign, especially on the 2.4L engine. It's a metallic rattle lasting a few seconds as the loose chain slaps against the worn or broken guides before oil pressure builds up.
- Check Engine Light: Your car's computer monitors the timing between the crankshaft and camshafts. A stretched or loose chain will trigger codes like P0016 or P0017 and turn on the light.
- Rough Idle and Poor Performance: As timing becomes incorrect, the engine may run poorly, hesitate when you accelerate, or lose power.
- Metal Shavings in Engine Oil: This is a critical sign. If you see metallic particles during an oil change, it could mean the chain is grinding away at the guides or other metal parts.
A Guide is Not Enough: Always Replace the Full Kit
A timing chain guide is almost never replaced by itself. It wears down along with the chain, tensioner, and sprockets. Installing a new guide with an old, stretched chain will lead to immediate and rapid failure. You must always purchase and install a complete timing chain kit to do the job correctly. Kits for the 2.4L engine are different from kits for the 3.6L V6, so ensure you buy the right one for your vehicle.
Choosing the Right Aftermarket Timing Kit
For a repair this critical, brand quality matters. Here’s a breakdown of available brands:
- Premium Aftermarket (Cloyes, Melling): Brands like Cloyes and Melling are well-respected in the industry. Cloyes, in particular, is known for engineering kits that improve upon the original GM design, which is especially important for the 3.6L V6 to prevent future chain stretching. Melling also produces high-quality components with a strong reputation.
- OEM-Equivalent (INA): INA is part of the Schaeffler Group, a massive company that supplies original parts to many car manufacturers. An INA kit can be considered an OEM-quality equivalent, offering reliability that matches the factory parts.
- OEM (ACDelco): ACDelco is GM's official parts brand and provides a reliable, factory-spec repair. However, for the 3.6L V6, a premium aftermarket kit designed to fix the original flaws may be a better long-term solution.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Timing Chain Kit | $60 - $300+ |
| New OEM Timing Chain Kit | ~$415 |
| Shop Labor | $561 - $823 |
| Total Professional Job (Aftermarket) | $976 - $1,239+ |
Pro Tip: For the 2.4L Ecotec engine, the water pump is driven by the timing chain. It is highly recommended to replace the water pump at the same time as the timing chain kit. Performing this later requires doing all the same labor over again.
Frequently Asked Questions (FAQ)
Can I just replace the broken guide or the chain?
No. All timing components wear together. A new chain on old sprockets or a new guide with a stretched chain will fail very quickly. You must replace the entire kit—chain(s), guides, tensioner(s), and sprockets—to ensure a lasting repair.
Is there a recall for the Pontiac G6 timing chain?
No, there is no official safety recall. However, GM did issue Special Coverage Adjustment 11340C for the 3.6L V6 engine to address premature timing chain stretching, which acknowledged the defect. There are also multiple Technical Service Bulletins (TSBs) related to the issue.
How do I know which engine my G6 has?
You can find the engine size on a sticker under the hood or on the vehicle information label, typically located in the driver's side door jamb. The 8th character of your car's VIN also corresponds to a specific engine code.
Is this a DIY job?
For most people, no. Replacing a timing chain is a complex and labor-intensive job that requires special tools and a deep understanding of engine mechanics. Mistakes can lead to severe engine damage. Professional installation is strongly recommended.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12588387

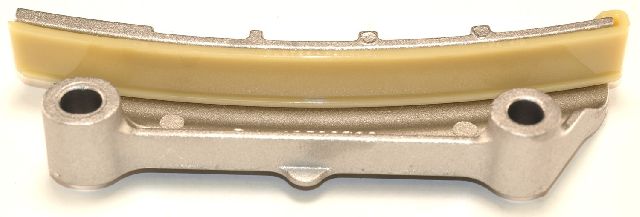

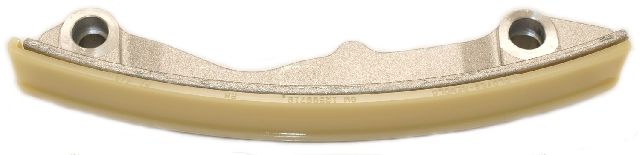

Component materials vary by brand, with guides typically made of high-strength polymer or nylon on a metal base. Kits for the 2.4L Ecotec are for a single-chain system, while kits for the 3.6L V6 are for a more complex three-chain system.
