Acura CSX A/C Receiver Drier Replacement Guide (2006-2011)
If your CSX air conditioning is weak, the small receiver drier might be the reason.
- The receiver drier is a desiccant bag inside the condenser on a 2006-2011 CSX.
- It MUST be replaced every time the A/C system is opened for service.
- Replacement is not a DIY job; it requires special equipment to handle refrigerant.
- Before major repairs, check the simple A/C compressor clutch relay first.
Is Your A/C Not Blowing Cold?
When the A/C in your 2006-2011 Acura CSX stops blowing cold, a common cause is a loss of refrigerant. However, the parts that keep the refrigerant clean and dry are just as important. The A/C receiver drier is a key maintenance part. It's designed to absorb moisture and filter debris from the A/C system. Once it becomes saturated with moisture or clogged with debris, it can't do its job, leading to poor cooling and potential damage to other A/C components.
Pro Tip: Check the Easy Stuff First
On the Acura CSX and the mechanically identical Honda Civic, a very common A/C problem is a faulty compressor clutch relay. This is an inexpensive part located in the under-hood fuse box. If your A/C compressor isn't engaging at all, it's worth checking this relay before assuming a more serious problem.
When to Replace the Receiver Drier
The rule for replacing the receiver drier is simple: it must be replaced any time the A/C system is opened. This includes when you replace a compressor, condenser, evaporator, or any A/C hose. The desiccant material inside the drier becomes saturated with moisture within hours of being exposed to outside air, making it useless. Most warranties for new A/C compressors require that you also install a new receiver drier.
Choosing the Right Aftermarket Drier
Since the Acura CSX is based on the Honda Civic, parts are widely available. For a maintenance item like the receiver drier desiccant bag, you don't necessarily need to buy the OEM part. Aftermarket brands offer a cost-effective and reliable alternative.

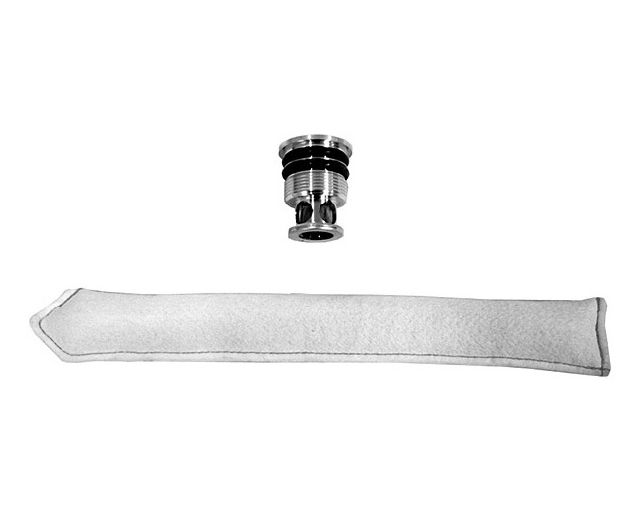

- Mahle: Often an original equipment manufacturer for many car brands, Mahle parts are known for high quality and are a solid choice if available.
- Four Seasons: A major aftermarket supplier with a long history. They produce parts in certified facilities and are a common, reliable choice for A/C components.
- Global Parts (GPD): Another large aftermarket distributor offering a wide range of A/C parts.
For this specific part, any of these brands will perform the necessary function. Since it's a simple desiccant bag, the brand choice is less critical than for a complex part like the compressor itself. The most important thing is that a new one is installed whenever the system is serviced.
Cost at a Glance
| Part/Service | Estimated Cost |
|---|---|
| New OEM Drier | $50 - $75 |
| New Aftermarket Drier | $21 - $32 |
| Shop Labor (including system evacuation and recharge) | $200 - $350 |
Frequently Asked Questions
Can I replace the A/C receiver drier myself?
This is not recommended for a DIY project unless you are an experienced technician with the proper tools. Replacing the drier requires recovering the refrigerant from the system, which must be done with a special machine to avoid releasing it into the atmosphere and to prevent injury. The system must then be put under a vacuum to remove all air and moisture before being recharged with the precise amount of refrigerant and oil. For these reasons, this job is best left to a professional mechanic.
Where is the receiver drier located on my CSX?
On the 2006-2011 Acura CSX, the receiver drier is a desiccant bag located inside a cylinder that is part of the A/C condenser assembly. The condenser is situated in front of the radiator at the front of the engine bay.
Is there a recall for the A/C system on my CSX?
No, there are no recalls or technical service bulletins (TSBs) related to the A/C receiver drier or the A/C system for the 2006-2011 Acura CSX.
What's the difference between a receiver/drier and an accumulator?
They perform similar functions but are used in different types of A/C systems. Your CSX uses an expansion valve system, which requires a receiver/drier on the high-pressure side. Systems with an orifice tube use an accumulator on the low-pressure side to protect the compressor. You will only have one or the other.
Technical Specifications
OEM Part Numbers: 80351-SDC-A01 80351-SDA-A01 80351-SED-003
Desiccant bag style drier, located inside condenser assembly.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
