A Guide to Serpentine Belts for the 2006-2011 BMW M5 (E60)
Keep your S85 V10 engine running smoothly by understanding its unique dual-belt system.
- The E60 M5 uses two belts: a main accessory belt and a separate A/C belt.
- Continental is the OEM supplier; their aftermarket belts offer the best value.
- Always replace the tensioners and idler pulleys with the belts as they are common failure points.
- A broken main belt will cause immediate engine shutdown and requires a tow; do not attempt to drive.
Understanding the E60 M5's Dual-Belt System
Your 2006-2011 BMW M5 has a high-performance S85 V10 engine with a specific drive belt setup. It doesn't use one single serpentine belt, but rather two separate ones. The main accessory belt is the most critical, driving the alternator, water pump, and power steering pump. A second, smaller belt drives the A/C compressor. 🎬 See how to specifically replace the S85 V10 A/C belt. Because the main belt runs the water pump, a failure can lead to rapid and catastrophic engine overheating. Regular inspection and replacement are key to protecting your engine.
Symptoms of a Failing Serpentine Belt
Listen and look for these warning signs. Ignoring them can lead to getting stranded and expensive repairs.
- Squealing or Chirping Noises: This is the most common symptom. A high-pitched squeal, especially on a cold start or during acceleration, often points to a worn belt or a failing tensioner or pulley. 🎬 Learn how to diagnose and fix common belt squealing noises.
- Visible Wear: Inspect your belts. If you see cracks, fraying, glazing (a shiny surface), or missing ribs, it's time for a replacement.
- Accessory Malfunctions: If your battery isn't charging (alternator), your steering becomes heavy (power steering), or the engine temperature rises quickly (water pump), the main belt may have failed.
- Rattling or Grumbling Sounds: These noises often indicate that the bearings in an idler pulley or tensioner are worn out and failing.
Don't Ignore Noises
On the S85 engine, squealing noises are frequently caused by worn idler pulleys or tensioners, not just the belt itself. If a pulley seizes, it can shred the belt instantly. It is highly recommended to replace the tensioners and pulleys at the same time as the belts for peace of mind.
Choosing the Right Aftermarket Belt
For the E60 M5, you have several quality aftermarket options that meet or exceed OEM standards without the dealership price tag.
- Continental: Continental is the original equipment manufacturer (OEM) for the E60 M5's belts. Choosing a Continental aftermarket belt often means you are getting the exact same part that came on your car from the factory, just in a different box and at a lower cost. They are widely considered the top choice.
- Gates: Gates is a very reputable brand in the aftermarket world, known for making durable and reliable belts. They are a solid alternative if Continental is not available.

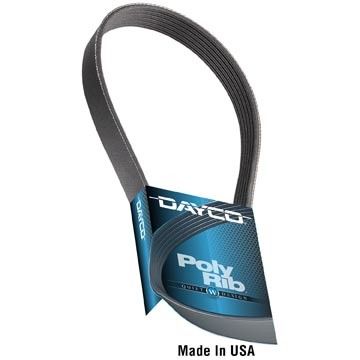

- Dayco: Dayco is another established brand that produces quality belts. While some mechanics have preferences, Dayco belts are generally considered a reliable and cost-effective option.
OEM vs. Aftermarket Quality
For this specific part on the E60 M5, the quality gap between an OEM BMW-branded belt and a premium aftermarket belt from a brand like Continental is virtually non-existent. The BMW belt is made by Continental. You can save money without sacrificing quality by choosing the aftermarket version from the OEM supplier.
Replacement Cost Comparison
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Belts (Set of 2) | $35 - $60 |
| New OEM (Dealer) Belts (Set of 2) | $70 - $110 |
| Shop Labor to Replace Belts Only | $100 - $175 |
| Shop Labor to Replace Belts, Tensioners, & Pulleys | $250 - $400 |
Note: Costs are estimates and can vary based on location, and the specific parts chosen. Labor for replacing tensioners and pulleys is higher but strongly recommended.
Frequently Asked Questions (FAQ)
How often should I replace the serpentine belts on my M5?
A general guideline is every 4 years or 50,000 miles, whichever comes first. However, due to the high-performance nature of the S85 engine, it's wise to inspect them annually and replace them proactively, especially if you don't know their age.
Should I replace the tensioners and pulleys with the belts?
Yes, it is highly recommended. The tensioners and idler pulleys on the S85 engine are known wear items. A failing pulley can destroy a new belt. Replacing them all at once is the most reliable repair and saves you money on labor in the long run.
🎬 Watch this comprehensive guide to replacing your belts and pulleys.Are there any recalls for the E60 M5 serpentine belt?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database and other sources show no specific recalls or technical service bulletins (TSBs) for the serpentine belts, tensioners, or pulleys on the 2006-2011 BMW M5.
Is this a DIY job?
For an experienced home mechanic, yes. The process involves removing the engine fan, releasing the spring-loaded tensioners, and routing the new belts. One of the idler pulleys must be removed to get the main belt off. If you are not comfortable with this, it is a relatively quick job for a qualified independent mechanic.
Helpful Videos
Technical Specifications
OEM Part Numbers: 11287838226 11287835483
Main Belt: 6PK1432. A/C Belt: 6PK1084.
