2006-2011 Cadillac DTS HVAC Blower Motor Resistor & Control Module Guide
Fix your fan speed problems and get your Cadillac's climate control working like new again.
- The most common symptom of failure is the fan only working on the highest speed setting.
- This part is located under the passenger dashboard and is very easy to replace with basic tools.
- If the old resistor or its connector looks burnt or melted, you MUST replace the blower motor at the same time to prevent the new resistor from failing.
- For the DTS with automatic climate control, this part is a 'control module', not a simple resistor, but the names are often used interchangeably.
Is Your Cadillac's Fan Acting Up? Understanding the Blower Motor Resistor
If the fan for your heat or A/C in your 2006-2011 Cadillac DTS has started to misbehave, the blower motor resistor is a common culprit. Since the DTS features an automatic climate control system (with a digital display), the part you need is technically a Blower Motor Control Module. This is a more advanced version of a simple resistor, using electronics to provide variable fan speeds. However, the terms are often used interchangeably. This module is critical for your comfort and for safety functions like defrosting the windshield.
Symptoms of a Failing Blower Motor Resistor
When this part fails, the signs are usually straightforward. Here’s what to look for:
- Fan Only Works on High: This is the most classic symptom. The highest fan setting has a separate circuit that bypasses the resistor/module. 🎬 Watch: Why your fan only works on the high setting When the module's internal circuits for lower speeds burn out, only the full-power 'high' setting will function.
- Some Fan Speeds Don't Work: You might lose one or two speeds while others still function. This points to a partial failure within the module.
- No Air From Vents at Any Speed: A complete failure of the module or its internal thermal fuse can stop the fan from working altogether.
- Inconsistent or Erratic Fan Speed: The fan speed may change on its own, or cut in and out without you touching the controls.
- Burning Smell from Vents: A plastic or electrical burning smell is a serious sign that the module is overheating or the wiring connector is melting. This requires immediate attention.
A Critical Pro-Tip: Check the Blower Motor
The #1 reason a new blower motor resistor fails prematurely is a worn-out blower motor. An old motor draws too much electrical current, which overheats and destroys the resistor. If you remove your old resistor and see that it's burnt, melted, or has discolored connectors, you should replace both the blower motor and the resistor module at the same time to fix the root cause.
🎬 See how to test and replace both components togetherChoosing the Right Aftermarket Resistor Module
For the 2006-2011 DTS, you have several aftermarket brands to choose from. OEM parts are always an option, but quality aftermarket brands offer a good balance of price and reliability.
| Brand Tier | Brands | General Assessment |
|---|---|---|

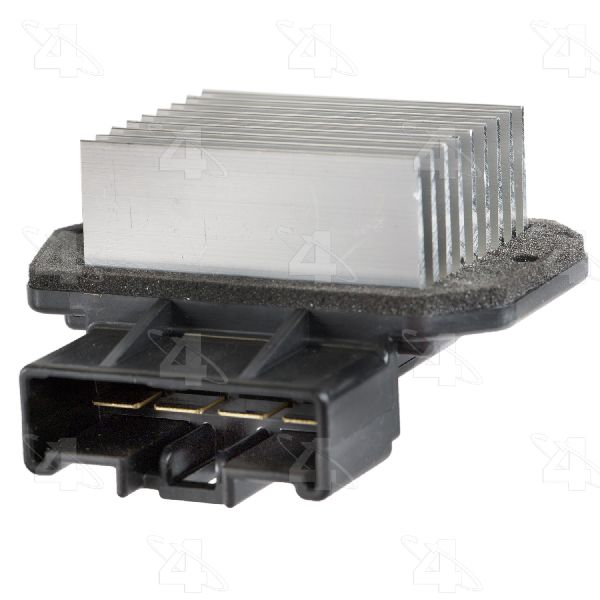

| Premium Aftermarket | Standard Ignition (SMP), Four Seasons | Often considered reliable choices. Standard Ignition is known for quality materials and robust design. Four Seasons, part of SMP, is a well-regarded name in climate control parts. These brands are good alternatives to OEM. |
| Standard Aftermarket | Dorman, Global Parts (GPD) | Dorman is a widely available brand that offers direct-fit replacement parts, often including a new wiring harness which is a major plus if yours is melted. GPD is another established brand in the A/C parts world. These offer good value for DIY repairs. |

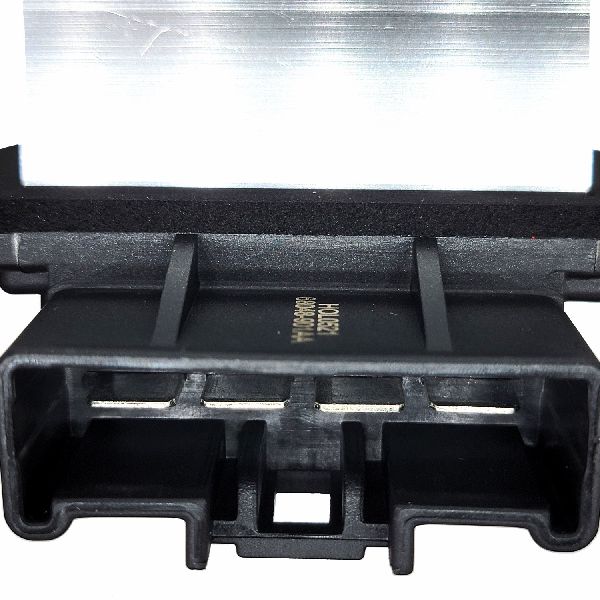

| Economy | Holstein, various private labels | These brands meet the basic need and are the most budget-friendly. They can be a good choice for a quick fix, but long-term durability may vary compared to premium brands. |
Frequently Asked Questions (FAQ)
Where is the blower motor resistor located on the 2006-2011 Cadillac DTS?
The blower motor resistor is located in the passenger-side footwell, mounted directly on the HVAC housing near the blower motor itself. You will need to remove a plastic 'hush' panel under the dashboard to access it. It is typically held in by two screws.
🎬 Watch this quick walkthrough of the resistor replacement processIs this a difficult part to replace myself?
No, this is a very DIY-friendly repair. The difficulty is rated 1 out of 5. It requires basic tools like a trim tool and an 8mm socket, and can usually be completed in under 30 minutes.
Why did my new resistor fail after only a few months?
This is almost always caused by a failing blower motor drawing too much electricity. The excess current overheats and burns out the new resistor. If a resistor fails quickly, you must replace both the blower motor and the resistor together to solve the problem permanently.
Are there any recalls for the blower motor resistor on my DTS?
No, there are no specific NHTSA recalls for the HVAC blower motor or its resistor on the 2006-2011 Cadillac DTS. There were recalls related to a heated windshield washer fluid system, but this is a completely separate component from the cabin's blower system.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22811003
This vehicle uses a blower motor control module with a pulse-width modulated signal for variable fan speed, not a traditional coiled resistor. It typically has two connectors with a total of five wires.
