Cadillac DTS Ignition Knock Sensor Guide (2006-2011)
Understanding knock sensor issues in your Northstar V8 and choosing the right replacement part.
- The 2006-2011 DTS has two knock sensors located under the intake manifold, making replacement a labor-intensive job.
- Due to the high labor cost, always replace both sensors and the wiring harness at the same time.
- Stick to high-quality OEM/OES brands like ACDelco or Delphi to avoid premature failure and a repeat repair.
- Symptoms of failure include a check engine light (P0325, P0332), poor acceleration, and reduced fuel economy.
Is Your Cadillac DTS Showing Signs of a Bad Knock Sensor?
When a knock sensor fails, the engine's computer loses its ability to 'hear' the engine correctly. To protect the engine from potential damage it can't detect, the computer will default to a 'safe' mode. This typically involves retarding the ignition timing, which leads to several noticeable symptoms.
- Check Engine Light: This is the most common indicator. The computer will store diagnostic trouble codes (DTCs) like P0325, P0327, P0330, or P0332.
- Reduced Engine Power: Your DTS may feel sluggish, especially during acceleration.
- Poor Fuel Economy: The inefficient 'safe' engine timing burns more fuel than normal.
- Audible Engine Pinging: In some cases, you might hear a metallic pinging or knocking sound during acceleration, which is the very thing the sensor is supposed to detect.
Choosing the Right Aftermarket Knock Sensor
For the 2006-2011 Cadillac DTS, the knock sensors are located under the intake manifold. This is a labor-intensive job, meaning the cost of labor will be much higher than the cost of the parts. Because of this, it is not a job you want to do twice. Using a low-quality part that fails prematurely will be a costly mistake. It is highly recommended to replace both sensors and the wiring harness at the same time.
Brand Quality Tiers
Tier 1: OEM / OES Brands
These brands are the original equipment manufacturers for General Motors. Choosing one of these ensures you are getting the same quality part that your car was built with. For critical, hard-to-reach sensors, this is the safest bet.
- ACDelco: As GM's own parts brand, this is the definitive original equipment part.
- Delphi: A major OEM supplier for GM, Delphi parts are considered equivalent to ACDelco in quality and are often a trusted choice among mechanics.
Tier 2: Premium Aftermarket Brands
These companies are known for producing high-quality components that meet or exceed OEM specifications. They are a reliable choice if an OEM/OES part is not available or is outside your budget.
- NGK / NTK: A well-respected name in engine management sensors.
- Standard Ignition (SMP): A long-standing brand with a reputation for quality aftermarket parts.
Tier 3: Economy & Value Brands
These brands offer a more budget-friendly price point. While they can provide a functional replacement, their longevity and quality control may not match the higher-tiered brands. Given the high labor cost for this specific repair on the DTS, opting for a budget part is a significant risk.
- Brands like Beck Arnley, Global Parts, Holstein, Motorad, True Tech, and Walker Products fall into this category.
Cost at a Glance: 2006-2011 Cadillac DTS Knock Sensor
| Item | Estimated Cost |
|---|---|
| Shop Labor | $170 - $250 |
| New Aftermarket Part (Single Sensor) | $14.75 - $78.87 |
| New OEM Part (Single Sensor) | $50 - $100 |
| Total Professional Replacement (2 Sensors + Labor) | $250 - $450+ |
Pro Tip: Do It Once, Do It Right
Because the sensors are buried under the intake manifold, always replace both knock sensors and the wiring harness at the same time. The harness is exposed to intense heat and can become brittle and fail, causing the same error codes. Failing to replace the harness could mean repeating this expensive repair. Also, consider applying a bead of RTV silicone sealant around the base of the new sensors to create a 'dam', which can help prevent moisture from pooling and causing corrosion, a common failure point on some GM V8 engines.
🎬 See this simple walkthrough for replacing sensors on GM V8s.Frequently Asked Questions
How many knock sensors does the 2006-2011 Cadillac DTS have?
The Cadillac DTS with the 4.6L Northstar V8 engine has two knock sensors, one for each cylinder bank. They are identical parts.
Where are the knock sensors located on the Cadillac DTS?
The knock sensors are located in the engine valley, underneath the intake manifold. This location requires the removal of the intake manifold for access, making it a difficult and time-consuming job.

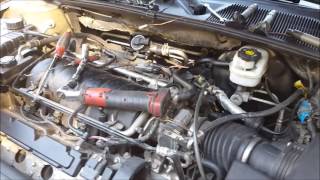

🎬 Watch: Step-by-step guide to replacing Cadillac DTS knock sensors.Can I drive my DTS with a bad knock sensor?
Yes, but it is not recommended for an extended period. The engine computer will enter a 'safe' mode, which protects the engine but results in poor performance and high fuel consumption. You should get the issue diagnosed and repaired promptly to avoid potential long-term issues and to restore normal vehicle operation.
What are the common trouble codes for a bad knock sensor?
The most common codes are P0325 (Knock Sensor 1 Circuit Malfunction, Bank 1), P0327 (Knock Sensor 1 Circuit Low Input, Bank 1), P0330 (Knock Sensor 2 Circuit Malfunction, Bank 2), and P0332 (Knock Sensor 2 Circuit Low Input, Bank 2).
Are there any recalls for the knock sensor on the Cadillac DTS?
No, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from GM or the NHTSA for the ignition knock sensors on the 2006-2011 Cadillac DTS.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10456126
The 4.6L Northstar V8 engine requires two identical knock sensors, one for each cylinder bank.
