Chevrolet Aveo5 (2006-2011) Catalytic Converter Replacement Guide
Everything you need to know before replacing the catalytic converter on your 2006-2011 Chevrolet Aveo5.
- The most common failure code is P0420. Always diagnose the root cause (like bad O2 sensors or engine misfires) before replacing the converter to avoid repeat failure.
- For 2009-2011 models, the primary converter is integrated with the exhaust manifold, making it a more involved replacement.
- You must purchase a converter that is legal for your state (Federal/EPA vs. CARB). CARB-compliant parts are required in CA, CO, NY, & ME and are more expensive.
- Replacing oxygen sensors at the same time is a highly recommended best practice to protect your new converter.
Symptoms of a Bad Catalytic Converter on a 2006-2011 Aveo5
When your Aveo5's catalytic converter starts to fail, it will give you several warning signs. Ignoring them can lead to more expensive repairs down the road.
- Check Engine Light: The most common sign is a check engine light with code P0420, which means "Catalyst System Efficiency Below Threshold." 🎬 Watch this guide on diagnosing and fixing the P0420 code. This code is triggered when the oxygen sensors detect that the converter isn't cleaning the exhaust properly.
- Loss of Power: If the inside of the converter breaks apart or clogs, it can block exhaust flow. Your car will feel sluggish and won't accelerate as it should, especially going uphill.
- Rotten Egg Smell: A strong sulfur or rotten egg smell from the exhaust is a classic sign of a failing catalytic converter. This happens when the converter can't properly process the trace amounts of sulfur in gasoline.
- Failed Emissions Test: A bad converter won't be able to reduce harmful emissions, causing your vehicle to fail a smog check.
- Rattling Noises: If the ceramic honeycomb inside the converter breaks apart, you might hear a rattling sound from under the car. This is a serious issue, as pieces can travel and block the rest of the exhaust.
Always Diagnose the Root Cause
A catalytic converter usually fails because of another problem. Common causes include a bad oxygen sensor, engine misfires from old spark plugs, or a leaking valve cover gasket dripping oil onto the exhaust. If you don't fix the original issue, your new converter will fail quickly.
Choosing the Right Aftermarket Converter for Your Aveo5
For the 2006-2011 Aveo5, the main catalytic converter is often a "manifold converter," which means it's built into the exhaust manifold as one piece. This makes replacement more direct but also influences the cost. When shopping for an aftermarket part, you'll see different brands and legal requirements.
Brand Quality & Tiers
Not all aftermarket brands are created equal. Based on general mechanic feedback and user reviews, here's a breakdown:
- Premium Aftermarket (MagnaFlow, Walker): These brands are well-regarded for their quality and fit. MagnaFlow often focuses on performance and uses durable stainless steel construction. Walker is known for creating parts that fit and function like the original (OE-style) and offers different grades, including CARB-compliant options. They are a trusted choice for a reliable, long-lasting repair.
- Standard Aftermarket (Dorman, Eastern Catalytic, BRExhaust): These brands offer a cost-effective solution. Dorman is known for providing direct-fit replacements that often include necessary gaskets and hardware. Eastern Catalytic is another popular budget-friendly option, though some user reviews mention mixed results on longevity. BRExhaust is also available as a standard replacement option.
- Value Brands (Evan Fischer, Original Performance): These are typically the most affordable options. While they can get your car back on the road, they may not have the same lifespan or catalyst efficiency as more premium brands.
EPA vs. CARB: Know Your State's Law
You must buy a converter that is legal in your state. Converters are either Federal/EPA compliant or CARB compliant. California, Colorado, New York, and Maine require CARB-compliant converters, which are more expensive due to stricter standards and more precious metals. Installing a non-compliant converter in these states will result in a failed emissions test. Always check which type your state requires before buying.
Cost to Replace a 2006-2011 Chevrolet Aveo5 Catalytic Converter
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (EPA) | $175 - $750 |
| New Aftermarket (CARB Compliant) | $700 - $1,500+ |
| New OEM (GM) | $800 - $2,000+ |
| Shop Labor | $110 - $250 |
Frequently Asked Questions
Is there a recall on the catalytic converter for the 2006-2011 Aveo5?
No, there are no active recalls from the NHTSA specifically for the catalytic converter on the 2006-2011 Chevrolet Aveo or Aveo5. However, GM did issue a Technical Service Bulletin (TSB) for some 2006 models regarding potential premature converter failure, and another for 2006-2007 models that requires installing a support brace when the converter is replaced to prevent future issues.
Can I replace the Aveo5 catalytic converter myself?
For a 2009-2011 model with the manifold converter, this is a moderately difficult job. 🎬 See a step-by-step replacement of a 2009-2012 Aveo manifold converter. It requires removing heat shields, the oxygen sensor, and the oil dipstick tube to access the manifold bolts. You will also need to unbolt the converter from the downstream exhaust pipe. While possible for an experienced DIYer with the right tools, rusted bolts can make it very challenging. For 2006-2008 models with an under-car converter, the job is generally easier.
Why are some converters for my Aveo5 so much more expensive?
The price difference is mainly due to two factors: 1) The type of converter (manifold vs. under-car), and 2) Emissions compliance (EPA vs. CARB). CARB-compliant converters required in states like California cost significantly more because they contain more precious metals to meet stricter standards. A manifold converter is also a larger, more complex part than a simple under-car unit, increasing its cost.
Do I need to replace my oxygen sensors with the catalytic converter?
It is highly recommended. A failing oxygen sensor can send incorrect information to the car's computer, causing a rich fuel mixture that can damage a new catalytic converter. Replacing the upstream and downstream oxygen sensors at the same time is a smart investment to ensure the new converter lasts.
Helpful Videos
Technical Specifications
OEM Part Numbers: 96803246 96476195

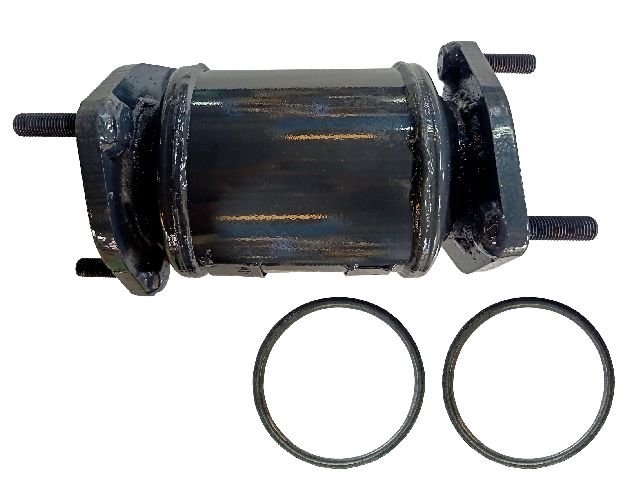

For model years 2009-2011, the primary catalytic converter is an integrated exhaust manifold assembly. For 2006-2008 models, the primary converter is typically a separate, under-car unit. All models have a second, smaller converter further down the exhaust system.
