A Guide to Replacing the Starter on Your 2006-2011 Chevrolet Express 2500
Everything you need to know before buying a new aftermarket starter for your Chevy work van.
- Starter failure will leave your Express 2500 stranded; replace it at the first signs of trouble like slow cranking or intermittent starting.
- Always confirm your battery is fully charged and terminals are clean before replacing the starter, as these are more common sources of starting problems.
- Replacement is DIY-friendly, located on the passenger side and held by two bolts, making it an accessible job for those with basic tools.
- For reliability in a work van, consider premium aftermarket brands like Bosch or Denso; they offer quality close to OEM without the high dealer price tag.
Is Your Express 2500 Starter Failing?
A starter problem on your 2006-2011 Express van will stop you in your tracks. Recognizing the signs early can save you from being stranded. The most common issue is a no-crank, no-start situation, but other symptoms can appear first.
Common Symptoms of a Bad Starter:
- Single Loud Click: You turn the key and hear one sharp click, but the engine doesn't turn over. This often means the starter's solenoid is working, but the motor itself is not.
- No Sound at All: If there's no click and no crank, the problem could be the starter, but it's also important to check the battery, ignition switch, and starter relay first.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. A failing starter can draw too much electricity, causing this symptom.
- Grinding Noise: A harsh grinding sound when you try to start the engine can indicate a problem with the starter gear engaging the engine's flywheel.
- Intermittent Starting: The van starts perfectly one day but refuses to crank the next. This unpredictability is a classic sign of a starter on its way out.
Known Issues, Recalls, and Service Bulletins
As of early 2026, there are no active recalls or specific Technical Service Bulletins (TSBs) from General Motors for starter motor failure on the 2006-2011 Chevrolet Express 2500. Problems with the starter are typically due to normal wear and tear over time.
Choosing a New Aftermarket Starter
When replacing the starter, you don't need to buy an expensive OEM part from the dealer. Quality aftermarket brands offer reliable performance, often with better warranties. Aftermarket starters for your Express 2500 generally fall into three categories.
Premium Brands (Highest Price & Quality)
- Bosch & Denso: These companies are often the original equipment manufacturers for many automakers and have a strong reputation for quality and durability. While they are at the top of the aftermarket price range, they are a solid choice if you depend on your van daily and want the longest possible service life. Both new and remanufactured options are typically available.
Mid-Grade Brands (Good Value & Reliability)
- Remy (Delco Remy): Remy is a well-established brand in the aftermarket. They offer a good balance of price and quality, making them a popular choice for daily drivers and work vehicles. Many users report good experiences with their new and remanufactured starters.
Economy Brands (Lowest Price)
- WAI Global & BBB Industries: These brands offer the most budget-friendly options. WAI Global parts have very mixed reviews; some users have no problems, while others report early failures. BBB Industries is a major remanufacturer that supplies many parts stores. With any economy or store-brand remanufactured part, quality can be inconsistent. These are best if budget is your primary concern.
Starter Replacement Cost for 2006-2011 Express 2500
The cost to replace your starter can vary depending on whether you do it yourself or hire a professional. The job is straightforward enough for a DIYer with basic tools.
| Part / Service | Estimated Cost |
|---|---|
| New Aftermarket Starter | $98 - $333 |
| Professional Shop Labor | $95 - $140 |
| Total Professional Replacement | $364 - $585 |
Frequently Asked Questions (FAQ)
How hard is it to replace the starter on an Express 2500?

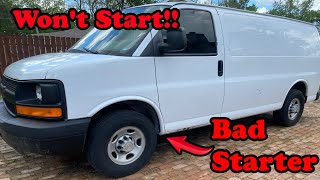

It's a relatively easy job for a DIYer. The starter is located on the passenger side of the engine and is held on by just two bolts. You'll need 🎬 See this simple walkthrough for removing and installing the starter. to safely raise the front of the van, disconnect the battery, remove two wires and two bolts, and then swap the part. The entire process can usually be done in 1-2 hours.

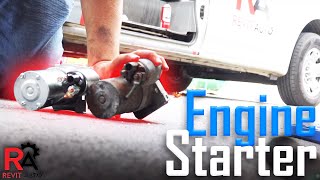

🎬 Watch: A professional guide to replacing the starter on this van.Is it my starter or my battery?
A weak or dead battery is the most common cause of starting issues. If you hear a rapid clicking sound when you turn the key, it's almost always the battery. If you hear a single, solid click or nothing at all, the starter is a more likely culprit, but you should still have your battery tested at an auto parts store to be sure.
Can I drive my van with a failing starter?
No. While a starter with intermittent problems might let you start the van for a while, it will eventually fail completely. Once it does, the engine will not crank, and you will be stranded wherever you are parked.
Do I need to replace any other parts with the starter?
Generally, no. However, this is a good time to inspect your battery cables. If the cable ends connected to the starter are heavily corroded or damaged, they should be cleaned or replaced to ensure the new starter gets full power.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12638394 19180529
The starter for the 2006-2011 Express 2500 is typically a 12-volt, permanent magnet gear reduction (PMGR) type with a 9-tooth pinion gear. Power ratings vary by engine and brand, but are often in the 1.4 kW to 2.2 kW range.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
