Choosing the Right Starter for Your 2006-2011 Chevrolet Express 3500
Don't get stranded—understand the common starter problems and pick a reliable replacement for your workhorse van.
- The most common cause of starter failure in these vans is heat soak from the exhaust; always reuse the factory heat shield on the new starter.
- Symptoms often mimic a bad battery, so test the battery first to avoid a misdiagnosis.
- For a work van, a new starter from a premium brand like Bosch, Denso, or Remy is a better investment than a remanufactured unit.
- Replacement is a feasible DIY job for those with basic tools, requiring access to the passenger side of the engine.
Is Your Express 3500 Starter Failing?
When the starter in your 2006-2011 Express 3500 begins to fail, it usually gives a few warning signs. Recognizing them early can save you from being stranded. The most common issue for these vans, especially those with V8 engines, is heat soak. The starter is located close to the hot exhaust, and over time, this heat can damage the starter's internal components.
Common Symptoms:
- Single Loud Click: You turn the key, hear one sharp click, but the engine doesn't turn over. This often points to a bad starter solenoid.
- Slow, Labored Cranking: The engine turns over much slower than usual, as if the battery is weak. If you've tested the battery and it's good, the starter is the likely culprit.
- No Sound at All: You turn the key and get nothing. While this could be a dead battery or ignition switch issue, it's also a classic sign of a completely failed starter.
- Grinding Noise: A grinding sound during or after the engine starts can indicate a problem with the starter gear not disengaging properly from the engine's flexplate.
- Problem is Worse When Hot: If the van starts fine when cold but struggles or refuses to start after it has been running for a while and is fully warmed up, you are likely experiencing starter heat soak.
Always Test the Battery First
Many starter failure symptoms are identical to those of a weak or dead battery. Before replacing the starter, make sure your battery is fully charged and has been tested. This simple step can save you time and money.
Choosing a New Aftermarket Starter
When replacing the starter on your Express 3500, you have several options. For a work vehicle where reliability is crucial, choosing a quality new aftermarket part is often a better investment than a cheaper remanufactured unit which can have inconsistent quality. Here’s a breakdown of the brands available:
Tier 1: Premium Aftermarket
These brands are known for high-quality manufacturing, often serving as Original Equipment (OE) suppliers to many carmakers. They are an excellent choice for durability and peace of mind.
- Bosch: A top-tier manufacturer with a strong reputation for quality electrical components. New Bosch starters are considered a reliable, long-lasting option.

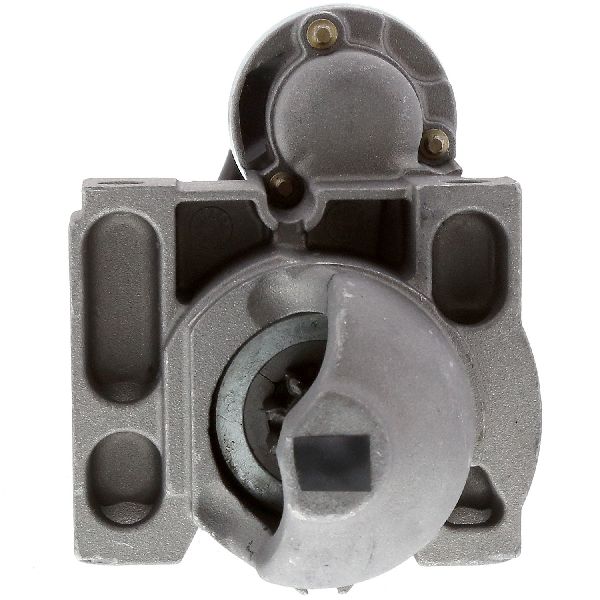

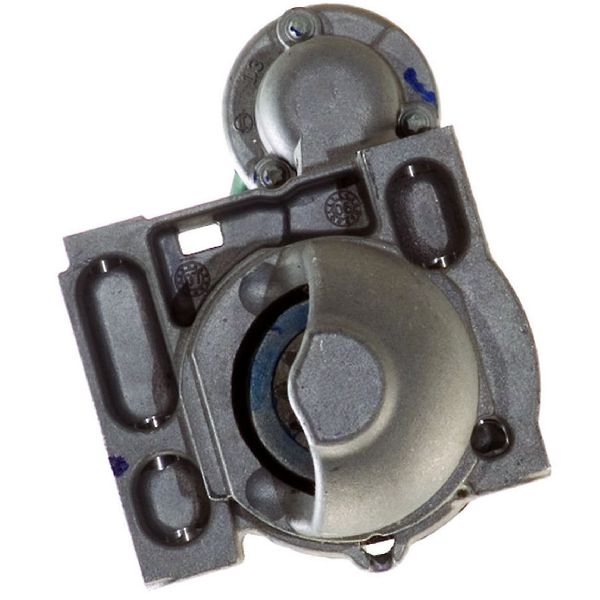

- Denso: Another highly-regarded OE supplier. Denso parts are known for their precise fit and excellent performance, making them a trusted choice for replacement.
Tier 2: Standard Aftermarket
These brands provide a good balance of quality and value. They are a solid choice for most owners, meeting or exceeding original specifications.

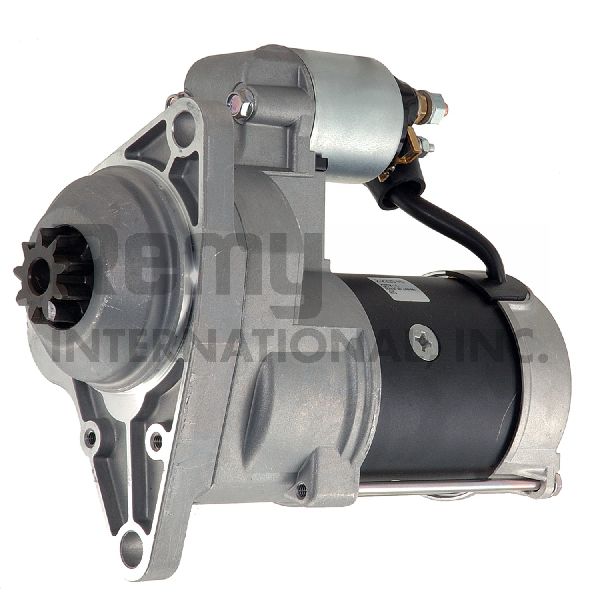

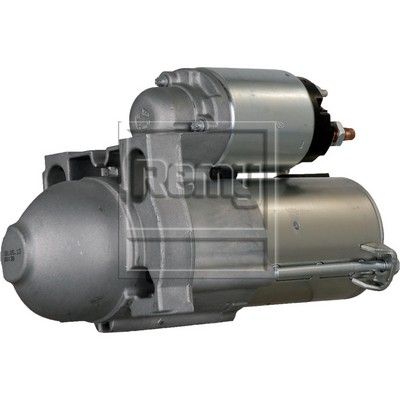

- Remy (Delco Remy): A well-established brand in the starter and alternator market, known for producing durable and reliable parts, including heavy-duty options.
- WAI Global: A popular aftermarket brand offering new starters that provide a reliable alternative to remanufactured units. User reviews are generally positive, citing good value.
Tier 3: Value Options
These brands focus on providing a cost-effective solution. They can be a good choice for budget-conscious repairs, but may have more variability in longevity.

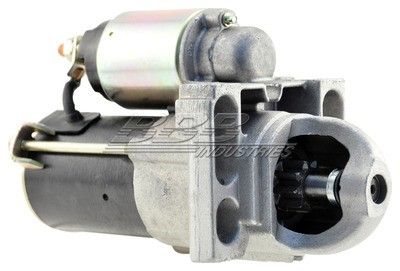

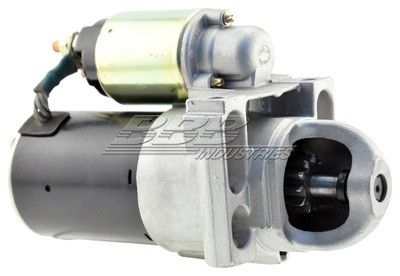

- BBB Industries: Primarily a supplier of remanufactured parts, they offer a wide range of applications. Quality can sometimes be inconsistent compared to new units.
Don't Forget the Heat Shield!
When you replace the starter, you must transfer the original metal heat shield to the new part. This shield protects the starter from the intense heat of the exhaust manifold. Failing to install it is a primary cause of repeat failures.
Cost of Replacing Your Starter
The cost can vary based on whether you do the job yourself or hire a professional. The Express 3500's starter is relatively accessible, making it a feasible DIY project for those with some experience.
| Cost Category | Estimated Price Range |
|---|---|
| New Aftermarket Part | $97.76 - $333.00 |
| Shop Labor | $87 - $128 |
| Total Professional Replacement | $185 - $461 (plus part cost) |
Frequently Asked Questions
Can I replace the starter myself?
Yes, for many owners this is a manageable DIY job. The starter is located on the passenger side of the engine and is held by two bolts. You will need to safely raise the vehicle and disconnect the battery. The main tools required are 8mm and 13mm sockets and wrenches. The entire process typically takes 1-2 hours.
Do I need a special starter for the diesel engine?
Yes. The 6.6L Duramax diesel engine requires a different, more powerful starter than the gas V8 engines (4.8L, 6.0L). Ensure you are purchasing the correct part for your specific engine, as they are not interchangeable.
What is a starter solenoid and is it replaced with the starter?
The starter solenoid is an electromagnet that serves two purposes: it pushes the starter gear forward to engage the engine, and it acts as a heavy-duty relay to send battery power to the starter motor. On the Express 3500, the solenoid is attached to the starter motor itself. New aftermarket starters almost always include a new, pre-installed solenoid.
Are there any recalls on the starter for this van?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls or technical service bulletins (TSBs) for starter motor failure on the 2006-2011 Chevrolet Express 3500.
Technical Specifications
OEM Part Numbers: 12588052
Varies by engine (4.8L, 6.0L gas vs 6.6L diesel). Gas V8 starters are typically 1.2kW to 1.4kW, 11-tooth, permanent magnet gear reduction (PMGR) style. Diesel starters are higher torque, typically 2.2kW with a 9-tooth pinion. Always verify fitment with your vehicle's specific engine.
