Chevrolet HHR (2006-2011) Engine Timing Chain Guide Explained
If you hear a rattle from your HHR's engine on startup, your timing chain guide may be failing—here's what you need to know.
- The timing chain system is a known weak point on 2006-2011 HHRs; the plastic guides and tensioner are the primary failure points.
- A rattling noise on startup is the main warning sign; do not ignore it, as it can lead to catastrophic engine failure.
- Always replace the entire timing kit (chain, guides, tensioner, sprockets), not just the single broken part.
- High-quality aftermarket kits from brands like Cloyes, Melling, or INA are considered reliable upgrades over the original parts.
Is Your HHR's Timing Chain Guide a Ticking Time Bomb?
The timing chain system is a well-known weak point on the 2.2L and 2.4L Ecotec engines used in the 2006-2011 Chevrolet HHR. The main issue isn't the metal chain itself, but the plastic guides and the chain tensioner. Over time and with heat, the original plastic guides can become brittle, crack, and break apart. When a guide fails, the timing chain becomes loose. This can cause a rattling noise, accelerated wear, and if ignored, can allow the chain to jump a tooth, leading to severe engine failure.
Interference Engine Warning
The Ecotec engine is an interference design. If the timing chain breaks or jumps time, the pistons will hit the valves, causing thousands of dollars in damage. It is critical to stop driving the vehicle if you suspect a timing chain issue, especially if the check engine light is on with codes P0016 or P0017.

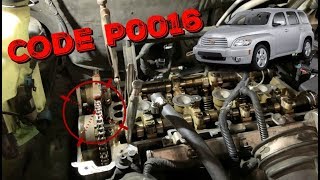

🎬 Watch: Diagnosing P0016 and P0017 correlation codes on an HHRSymptoms of a Failing Timing Chain Guide
Listen for these warning signs. Catching the problem early can be the difference between a manageable repair and a complete engine replacement.
- Startup Rattle: The most common symptom is a distinct rattling or scraping noise from the passenger side of the engine when you start it cold. The noise may only last for a few seconds as oil pressure builds.
- Check Engine Light: Codes like P0016 or P0017 are strong indicators of a timing problem. These codes mean the engine's computer has detected that the crankshaft and camshafts are no longer synchronized.
- Rough Idle or Misfires: As the timing becomes less accurate, the engine may idle poorly, hesitate, or misfire.
- Metal Shavings in Oil: This is a severe sign. When guides break, plastic and metal pieces can fall into the oil pan. If you see metallic glitter during an oil change, it's a red flag for major internal wear.
Choosing the Right Aftermarket Part
When it comes to timing components for the HHR, this is one of those rare cases where high-quality aftermarket parts are often considered an upgrade over the original factory design. Because the job is so labor-intensive, it is crucial to buy a complete, quality kit and not just the one broken guide.
Pro Tip: Always Replace the Full Kit
The labor to access the timing components is the most expensive part of the job. To avoid doing it twice, always replace the timing chain, all guides, the tensioner, and sprockets as a complete kit. Many mechanics also recommend replacing the balance shaft chain and its components at the same time.
Aftermarket Brand Quality
For the HHR, sticking with reputable brands is essential for a lasting repair.
- Top Tier (OEM Quality or Better): Brands like Cloyes and Melling are highly respected for timing components. Cloyes was reportedly an original equipment supplier to GM, and their kits are a frequent recommendation by mechanics. 🎬 See a professional installation of the Cloyes timing kit Melling is also a top-tier choice known for durable parts.
- Reliable Aftermarket: INA, part of the Schaeffler Group, is a major OEM supplier for many European and domestic brands and offers OEM-quality components. Their parts are a solid choice for reliability.
- Economy Tier: Avoid unbranded, low-cost kits from online marketplaces. The quality of the plastic and the precision of the components can be poor, leading to premature failure and a repeat of a very expensive job.
Known Issues, Recalls, and TSBs
While there have been no official safety recalls for the timing chain on the 2006-2011 HHR, General Motors did issue several Technical Service Bulletins (TSBs). TSBs like PIP4548C and PIP4716B address problems like startup rattle and P0016/P0017 codes, guiding technicians to inspect for worn guides and faulty tensioners. This confirms that GM is aware of the issue with the original components.
Frequently Asked Questions (FAQ)
Can I just replace the broken guide or the tensioner?
This is strongly discouraged. If one guide has failed, the others are likely brittle and close to failing as well. The chain itself may also be stretched. Given the 6-9 hours of labor required, it is not worth the risk. Replace the entire kit.
Is this a good DIY project for a beginner?
No. This is a complex, labor-intensive job that requires special tools and a deep understanding of engine mechanics. A mistake, like letting the timing jump during installation, can destroy the engine. This repair is best left to experienced DIYers or a professional mechanic.
What causes the timing chain guides to fail?
The primary causes are the original plastic material becoming brittle with age and heat cycles, and issues with the original timing chain tensioner design which can allow slack in the chain. Poor oil quality or infrequent oil changes can also accelerate wear.
Should I also replace the water pump?
Yes, it's a good idea. The water pump on the Ecotec engine is driven by the timing chain. Since you'll already have everything disassembled, replacing it at the same time is smart preventative maintenance and adds very little extra labor cost.

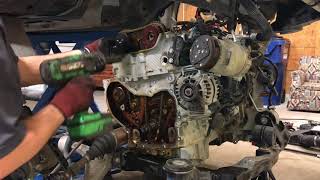

🎬 Watch: Step-by-step timing chain and water pump replacement guideHelpful Videos
Technical Specifications
OEM Part Numbers: 12588387 13104978 25190534
This guide is for the 2.2L L61 and 2.4L LE5 Ecotec engines. The timing system consists of a primary timing chain, three guides (two fixed, one pivoting), and a hydraulic tensioner. A separate chain system drives the balance shafts.
