Ford Crown Victoria Fuel Pump Driver Module Replacement Guide for 2006-2011 Models
Solve your Crown Victoria's no-start or stalling issues by understanding and replacing the Fuel Pump Driver Module.
- The FPDM on the 2006-2011 Crown Victoria is located inside the trunk, protecting it from the corrosion issues that plague Ford trucks.
- Key symptoms are a 'crank no-start' condition or sudden stalling, often with fault code P1233.
- Replacement is a simple, plug-and-play job that does not require any programming and can be done at home in under an hour.
- A quality aftermarket module is a reliable and cost-effective repair for this specific vehicle.
Understanding the Fuel Pump Driver Module on Your Crown Victoria
If your 2006-2011 Crown Victoria cranks but won't start, or if it stalls unexpectedly while driving, a faulty Fuel Pump Driver Module (FPDM) is a likely culprit. This module is a common failure point, but fortunately, it is easy to diagnose and replace. Unlike many Ford trucks that have this module mounted on the exterior frame where it corrodes, Ford placed the Crown Victoria's FPDM inside the trunk. It is bolted to the metal support structure behind the rear seat, protecting it from road salt and moisture. Because of this, failure is typically due to internal electronics rather than corrosion.
Symptoms of a Failing FPDM
When the FPDM starts to go bad, it starves the engine of fuel. The symptoms are often clear and can appear without warning.
- Engine Cranks, But Won't Start: This is the most common symptom. The engine turns over but never fires up because there's no fuel.
- Sudden Engine Stalling: The engine may shut off while you're driving, sometimes without any ability to restart. This is a serious safety risk.
- Hesitation and Stumbling: When you accelerate, the car may hesitate or feel like it's losing power because the module isn't telling the pump to send more fuel.
- Rough Idle: The engine may idle poorly due to inconsistent fuel pressure.
- Check Engine Light: A failing module will almost always trigger a Check Engine Light with specific codes. The most common codes are P1233 (FPDM Offline) and P1237 (Fuel Pump Secondary Circuit Malfunction).
Is the Car Safe to Drive?
No. A failing FPDM can cause the engine to stall at any time, including at highway speeds. This creates a dangerous situation where you can lose power steering and brakes. It is highly recommended to stop driving the vehicle until the issue is repaired.
Choosing the Right Aftermarket Fuel Pump Driver Module
For the 2006-2011 Crown Victoria, a quality aftermarket FPDM is a reliable and cost-effective alternative to the more expensive OEM part. Since the module is mounted inside the trunk, the advanced corrosion-resistant features found on some aftermarket parts are less critical than on a Ford F-150, but they can still indicate a higher-quality component.
- Good (Value Tier): Brands like Replacement or store-branded parts offer a direct-fit, plug-and-play solution that will get your car running again. They meet original specifications and are the most budget-friendly option.
- Better (Mid-Grade): Brands like Spectra and Standard Ignition (SMP) are well-known in the aftermarket for producing quality electronic components. These parts often have robust construction and are a solid choice for long-term reliability.
- Best (Enhanced Design): Dorman's OE FIX module is a popular premium option. While its main selling points are a powder-coated housing and standoff bushings to fight corrosion (a bigger issue on trucks), it also features an upgraded microprocessor for better response time. If you want peace of mind and potentially enhanced durability, this is a strong contender.
Pro Tip: The replacement is plug-and-play. No special programming or calibration is needed for the 2006-2011 Crown Victoria. You can install the new module and it will work immediately.
Cost of Replacing the Fuel Pump Driver Module
The cost to replace the FPDM is reasonable, especially if you do it yourself. The part is affordable and the labor is minimal.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $65 - $139 |
| New OEM Part | $165 - $245 |
| Shop Labor | $75 - $150 |
| Total Professional Replacement | $140 - $289 |
Frequently Asked Questions (FAQ)
Where is the fuel pump driver module located on a 2006-2011 Crown Victoria?
It is located inside the trunk. You will need to pull back the trunk liner on the wall behind the rear seats to access it. It's a small metal box bolted to a support beam, often near the inertia switch.

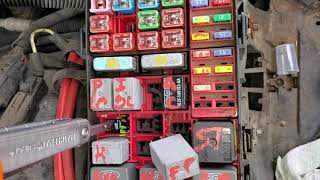

🎬 See where to find the module, fuses, and inertia switch.Can I replace the FPDM myself?
Yes, this is a very DIY-friendly job. You only need basic hand tools to access and unbolt the module. The process involves disconnecting the battery, removing some trunk liner, unplugging the electrical connector, and swapping the old module for the new one. The entire job can usually be done in under an hour.

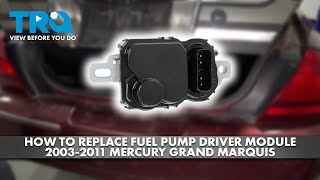

🎬 Watch this step-by-step guide to replacing the module yourself.Could my problem be the fuel pump instead of the module?
Yes, the symptoms are nearly identical. However, the diagnostic trouble codes can help point you in the right direction. Code P1233 (FPDM Offline) strongly suggests the module itself is the problem. Code P1237 (Secondary Circuit Fault) could be the module, the wiring, or the fuel pump. A mechanic can perform a voltage test to confirm which part has failed.
Are there any recalls for the Crown Victoria fuel pump driver module?
No. While Ford issued major recalls for FPDM corrosion on vehicles like the F-150 and Explorer, the 2006-2011 Crown Victoria was not included because its module is located in a protected area inside the trunk.

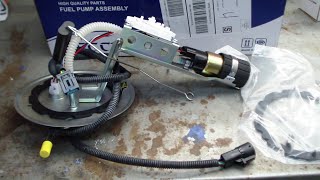

Helpful Videos
Technical Specifications
OEM Part Numbers: 6W7Z-9D372-CA
Location: Inside trunk, behind rear seat. Connector: 6-pin, plug-and-play. Programming Required: No.
