A/C Compressor Guide for the 2006-2011 Ford Explorer
Is your Explorer's A/C blowing warm? Here’s what you need to know before replacing the compressor.
- If your compressor failed internally, you MUST replace the receiver/drier and orifice tube and flush the system to prevent immediate failure of the new part.
- For long-term reliability, Motorcraft (OEM) or Valeo are the most recommended brands for the Ford Explorer.
- A/C system repair requires special tools for refrigerant recovery and charging; this is not a typical DIY job.
- No recalls have been issued for the A/C compressor on this vehicle; failures are considered normal wear.
Is Your A/C Compressor Failing?
When the A/C compressor in your 2006-2011 Ford Explorer starts to go bad, it usually gives off clear warning signs. Paying attention to these symptoms can help you diagnose the problem before it causes more damage to the A/C system.
Common Failure Symptoms:
- Warm Air From Vents: This is the most obvious sign. If the compressor isn't pressurizing the refrigerant, the system can't produce cold air.
- Loud Noises: Grinding, whining, or rattling sounds that start when you turn on the A/C point to failing internal parts, like bearings.
- Clutch Not Engaging: The compressor's outer pulley spins with the engine, but an inner clutch engages to run the compressor. If you don't hear a 'click' when you turn on the A/C, the clutch may be bad. 🎬 Watch: How to diagnose and repair a clutch that won't engage.
- Burning Smell: A seized compressor can cause the serpentine belt to drag across a locked pulley, creating a distinct burning rubber smell.
Black Death: A Catastrophic Failure
If a compressor fails internally, it can send tiny metal shavings throughout the entire A/C system. This is often called "black death" because it contaminates the refrigerant oil. If this happens, you must replace not only the compressor but also the condenser, receiver/drier, and expansion valve, and thoroughly flush the lines. Installing a new compressor into a contaminated system will cause it to fail almost immediately.
Choosing the Right Aftermarket Compressor
When shopping for a new A/C compressor, you have several options beyond the expensive dealership part. Here’s an honest breakdown of the brands available for your Explorer.
Tier 1: OE-Quality Aftermarket
- Motorcraft (OEM): This is the original Ford part. It offers the best guarantee of fit, performance, and longevity but comes at the highest price.

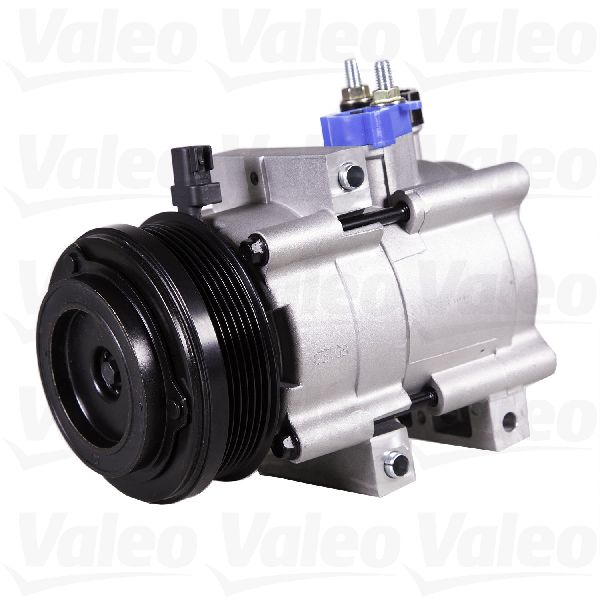

- Valeo: Valeo is a well-respected brand that often manufactures original parts for carmakers. It is widely considered an OE-quality equivalent, providing similar performance to Motorcraft at a lower cost.
Tier 2: Reputable Aftermarket Brands

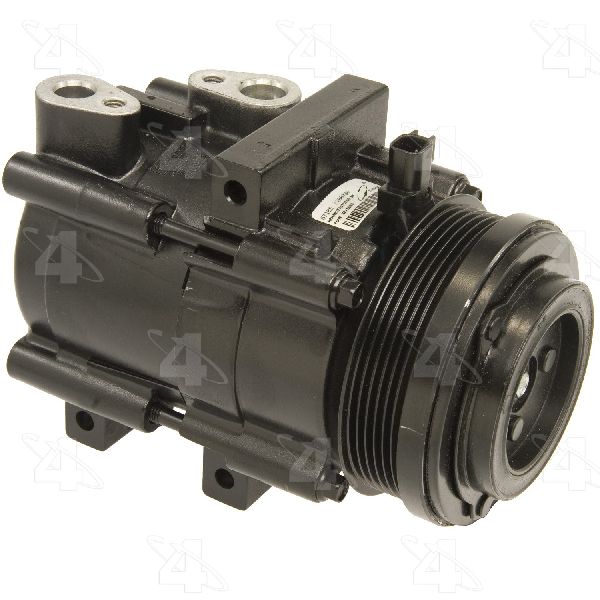

- Four Seasons: As one of the largest aftermarket suppliers, Four Seasons offers a balance of affordability and availability. However, owner reviews are often mixed; some compressors last for years, while others fail prematurely. It's a decent mid-range choice if budget is a primary concern.
Tier 3: Value-Oriented Brands

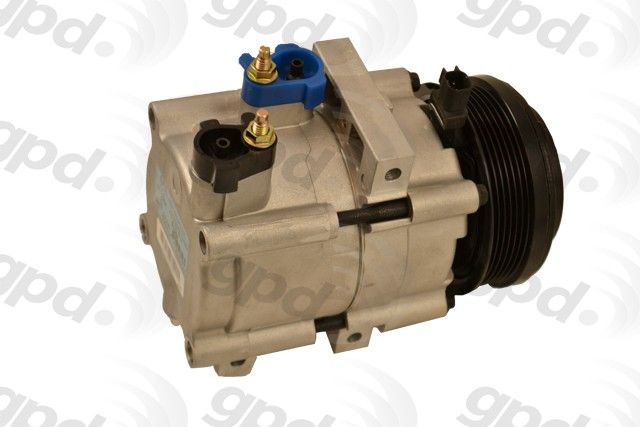

- Global Parts (GPD) & Replacement: These brands fall into the budget category. They offer the lowest prices, making them a viable option for a quick fix or if you're planning to sell the vehicle soon. While they can work fine, the quality and durability may not match the higher-tier brands.
Always Buy a Kit
To do the job right and ensure your new compressor lasts, always buy an A/C kit. A proper kit should include the compressor, a new receiver/drier (also called an accumulator), and an orifice tube or expansion valve. Replacing these related parts is essential for a successful and long-lasting repair.
Known Issues and Recalls
Searches of the National Highway Traffic Safety Administration (NHTSA) database show no specific recalls for the A/C compressor on the 2006-2011 Ford Explorer. Failures are generally considered a result of age and wear. One Technical Service Bulletin (TSB #0782) exists for HVAC airflow issues but is not related to compressor failure.
🎬 Watch: A helpful guide to checking your A/C fuses and relays.Cost of Replacing Your A/C Compressor
The cost depends on whether you do it yourself or hire a professional. A/C work requires special equipment, so most owners opt for a shop.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Compressor Kit | $228 - $562 |
| New OEM (Motorcraft) Compressor | $350 - $900+ |
| Shop Labor & Recharge | $250 - $550 |
| Total Professional Job | $950 - $1,200+ |
Frequently Asked Questions
Can I replace the A/C compressor myself?
While physically replacing the compressor is possible for a skilled DIYer, the process requires specialized tools. You need a machine to safely recover the old refrigerant, a vacuum pump to remove all moisture from the system before charging, and manifold gauges to add the correct amount of new refrigerant. For most people, this job is best left to a professional.
🎬 See this step-by-step compressor replacement walkthrough for the 4.0L engine.Do I need to replace anything else with the compressor?
Yes, absolutely. At a minimum, you must replace the receiver/drier and the orifice tube (or expansion valve). Failing to replace these components will void the warranty on your new compressor and likely cause it to fail quickly.
My compressor clutch is bad. Can I just replace the clutch?
Sometimes, but it's often not practical. Replacing just the clutch can be as labor-intensive as replacing the whole compressor. Given the age of the vehicle, it's usually more cost-effective to replace the entire compressor assembly, which comes with a new clutch already installed.
What kind of oil does the A/C system use?
The A/C system in your Explorer uses PAG (Polyalkylene Glycol) oil. New compressors typically come pre-filled with some oil, but you must verify the correct amount for your specific vehicle and add more if necessary. Always drain and measure the oil from the old compressor to know how much to put in the new one.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6L2Z19703D 8L2Z19703C
Fits 4.0L V6 and 4.6L V8 engines. System uses R-134a refrigerant and PAG oil. Verify if your vehicle has rear A/C, as this may require a different compressor model.
