Accessory Drive Belt Guide for the 2006-2011 Kia Rio5
Everything you need to know about replacing the drive belts on your 1.6L Kia Rio5.
- Your 2006-2011 Kia Rio5 uses two separate accessory belts, not a single serpentine belt.
- Inspect belts for cracks and listen for squealing; replace both belts at the same time for best results.
- Bando and Mitsuboshi are likely OEM suppliers, offering top quality. Gates and Continental are also excellent aftermarket choices.
- No specific recalls or TSBs exist for the belts, but be aware of potential A/C compressor clutch issues that can mimic belt noise.
Understanding the Accessory Belts on Your Rio5
When you look under the hood of your 2006-2011 Kia Rio5, you'll find a two-belt system. This is different from many newer cars that use a single serpentine belt. One belt is for the alternator and water pump, and the other is for the power steering and A/C. Because they are constantly working and made of rubber, these belts wear out over time and need to be replaced. If a belt breaks, it can leave you stranded.
Symptoms of a Failing Accessory Drive Belt
A bad drive belt will almost always give you a warning before it fails completely. Ignoring these signs can lead to a breakdown and possible engine damage from overheating.
- Squealing or Chirping Noises: This is the most common sign. The noise is often worse on cold starts, in wet weather, or when you turn the steering wheel or switch on the A/C. This sound means the belt is slipping on the pulleys.
- Visible Wear and Tear: With the engine off, look at the belts. If you see cracks, fraying, missing chunks, or a glazed, shiny appearance on the ribbed side, it's time for a replacement.
- Accessory Problems: If your power steering feels heavy, your A/C isn't blowing cold, or the battery warning light comes on, the belt might be slipping and unable to properly power those components.
- Engine Overheating: This is a critical symptom. If the belt that runs the water pump breaks, your engine will overheat very quickly. Pull over immediately if you see the temperature gauge climbing.
Can I Drive with a Bad Belt?
It is not recommended. A squealing belt might get you home, but if it breaks, you will lose power steering and your engine will start to overheat. It's best to replace a failing belt as soon as possible.
Choosing the Right Aftermarket Belts
For the Kia Rio5, the original factory belts are good quality, but you don't have to buy them from the dealer. Many aftermarket brands offer excellent quality, sometimes from the same companies that supply Kia. Based on owner experiences and mechanic recommendations for Asian vehicles, here is a breakdown of popular brands.
Tier 1: OEM or Equivalent Quality
- Bando: Bando is a known original equipment (OEM) supplier for many Asian auto manufacturers. Choosing a Bando belt is often the closest you can get to the original factory part. They are highly regarded for their quality and durability.

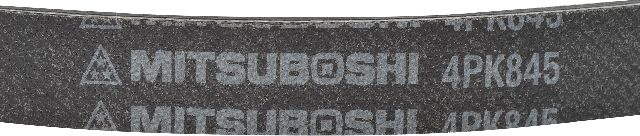

- Mitsuboshi: Similar to Bando, Mitsuboshi is another top-tier OEM supplier for Japanese and Korean vehicles. They are known for their reliability and long life.
- Gates: Gates is a very popular and trusted name in the aftermarket. They make high-quality belts that meet or exceed OEM specifications and are a reliable choice for any vehicle.
Tier 2: Reputable Aftermarket Brands

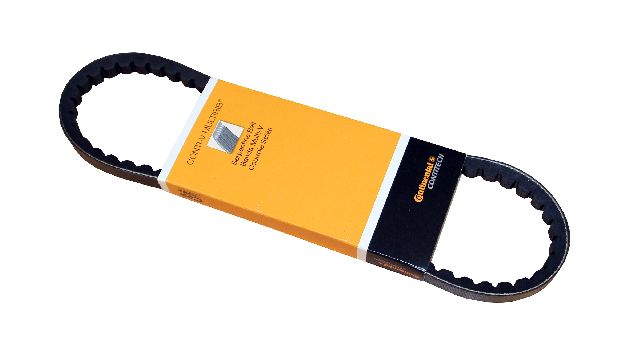

- Continental: Continental (sometimes branded as ContiTech) makes excellent belts known for quiet operation. They are a strong choice and considered a top brand by many mechanics.
- Dayco: Dayco is another well-known brand that produces reliable aftermarket belts. While some prefer other brands, Dayco belts are a solid, affordable option that will perform well.
Pro Tip: Replace in Pairs
Since both belts on your Rio5 have been exposed to the same conditions and have similar mileage, it's a good idea to replace them both at the same time. This saves you from having to do the job twice and ensures the entire system is fresh.
Known Issues, Recalls, or TSBs
A search of the National Highway Traffic Safety Administration (NHTSA) database and other public records found no specific recalls or Technical Service Bulletins (TSBs) for the accessory drive belts on the 2006-2011 Kia Rio5. Some owners have reported issues with noisy or failing A/C compressor clutches, which can sometimes be mistaken for a belt problem. If you have noise when the A/C is on, have the compressor and its clutch checked along with the belts.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Belts (Set of 2) | $45 - $65 |
| New Aftermarket Belts (Set of 2) | $15 - $60 |
| Shop Labor | $65 - $130 |
| Total Professional Replacement | $99 - $195 |
Frequently Asked Questions (FAQ)
How often should I replace the accessory belts?
There is no exact replacement interval, but it's wise to inspect them every 30,000 miles. Most belts last between 60,000 and 100,000 miles. Replace them whenever they show signs of cracking, fraying, or glazing.
Is this a difficult DIY job?
For a beginner, it can be moderately difficult. Access is tight, and you need to manually loosen the alternator and power steering pump bolts to adjust tension. There is no automatic spring-loaded tensioner. However, with basic tools and patience, it is a very achievable DIY repair.
Do I need to replace the tensioners or pulleys?
Your Rio5 does not have automatic tensioners. The tension is set by moving the accessories themselves. While the belts are off, it is a very good idea to spin the idler pulleys by hand. If they feel rough, make noise, or wobble, they should be replaced.
What are the part numbers for the belts?
Always confirm with your specific vehicle, but common OEM part numbers are: Alternator & Water Pump Belt: 2521226021. Power Steering & A/C Belt: 5723129100 and 977131C200 (check application, may be two separate belts depending on exact setup). Aftermarket belts will have different numbers but will cross-reference to these.
Technical Specifications
OEM Part Numbers: 2521226021 5723129100 977131C200
System Type: Dual belt system with manual tensioners. One belt for Alternator/Water Pump, one for Power Steering/AC.
