A Guide to Replacing the HVAC Heater Hose on a 2006-2011 Lincoln Navigator
Address coolant leaks and restore cabin heat by understanding the common failure points of your Navigator's heater hoses.
- The primary failure point is the plastic T-connector in the hose assembly, which becomes brittle and cracks.
- A coolant leak, no matter how small, requires immediate attention to prevent engine overheating.
- Replacing the entire hose assembly is recommended over patching a single leak for long-term reliability.
- Aftermarket brands like Gates, Dayco, and Continental offer quality, cost-effective alternatives to expensive OEM parts.
Signs of a Failing Heater Hose
Heater hose problems on the 2006-2011 Lincoln Navigator often have clear warning signs. The most common issue is not the rubber hose itself, but the factory-installed plastic T-connectors in the hose assembly. Over time, these plastic parts become brittle from constant temperature changes and can crack, leading to leaks.
- Coolant Leak: You may find puddles of green, orange, or pink fluid under the front passenger side of your vehicle. Often, the leak originates from a plastic T-fitting on the hose assembly located on the top passenger side of the engine.
- Sweet Smell: Leaking coolant has a distinct sweet, syrupy smell. You might notice this inside or outside the cabin, especially when the engine is warm.
- No Cabin Heat: If a hose is severely leaking or clogged, not enough hot coolant will reach the heater core, leaving you with cold air blowing from the vents.
- Visible Hose Damage: During an inspection, look for hoses that are cracked, bulging, spongy, or collapsed. Pay close attention to the plastic connectors for any signs of cracking or white, crusty residue from dried coolant.
Choosing the Right Aftermarket Replacement
When replacing your heater hose, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. OEM hoses from Ford/Motorcraft are a direct fit but can be expensive. Aftermarket brands offer a more affordable and widely available alternative without a significant drop in quality. All three major brands—Gates, Dayco, and Continental—are reputable suppliers known for making quality rubber products.
- Good (Tier 3): Basic aftermarket assemblies will get the job done. The most important factor is ensuring the molded shape matches the original for a proper fit without kinks.
- Better (Tier 2): Brands like Dayco and Continental offer reliable, OE-quality hoses. They are trusted names in the industry and provide a good balance of price and performance.
- Best (Tier 1): Gates is often considered a top-tier aftermarket brand for hoses and belts. Some aftermarket brands, like Dorman, even offer redesigned parts that replace failure-prone plastic components with more durable metal. When possible, choosing an assembly with metal connectors instead of plastic is a smart upgrade.
Pro Tip: It is highly recommended to replace the entire heater hose assembly, not just the single leaking component. The plastic connectors tend to fail around the same time, and replacing the whole unit prevents you from having to do the same repair again in a few months.
| Part Source | Estimated Price Range |
|---|---|
| New OEM (Motorcraft) | $75 - $265+ |
| New Aftermarket (Gates, Dayco, etc.) | $11.67 - $98.39 |
Frequently Asked Questions
Can I just replace the broken plastic T-connector?
Yes, some owners choose to cut out the failed plastic tee and replace it with a 3/4" brass PEX fitting from a hardware store for a few dollars. This can be a very cost-effective repair, but it requires cutting the original hoses. 🎬 See how to perform this low-cost heater hose repair. Replacing the entire assembly is often the more reliable long-term solution.
Is this a difficult repair to do myself?
For a handy DIYer, this is a manageable job. It requires draining the cooling system, and access to the hose clamps can be tight. The connectors at the firewall can be especially tricky to release. The job typically takes 1-2 hours.
🎬 Watch this step-by-step heater hose replacement walkthrough.My heat isn't working, but I don't see a leak. What else could it be?
If you have no heat but both heater hoses feel hot to the touch where they enter the firewall, the problem is likely not the hoses. It could be a failed blend door actuator, which is a common issue on these vehicles. This actuator controls a door inside the dashboard that mixes hot and cold air.
🎬 Watch: How to diagnose and fix a failed blend door.What type of coolant does my 2006-2011 Lincoln Navigator use?
Always check your owner's manual or the coolant reservoir for the specific type. Ford vehicles of this era typically use Motorcraft Premium Gold Engine Coolant (yellow-colored). Using the correct coolant is vital for the longevity of all cooling system components.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7L1Z18472AA 8L1Z18472A 5L3Z18472G BL1Z18472A

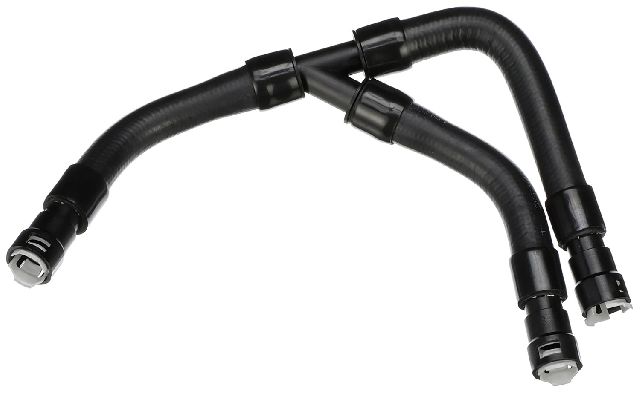

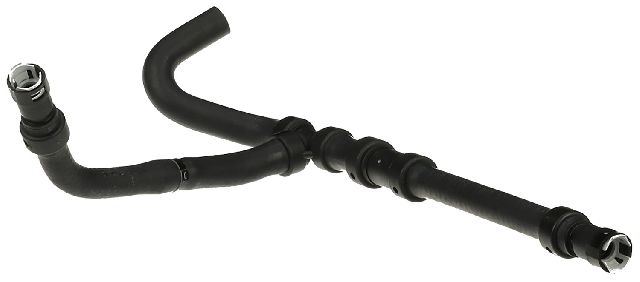

Molded EPDM rubber hose assembly, often including plastic or metal T-connectors and quick-connect fittings for the firewall.
