2006-2011 Lincoln Town Car Fuel Pump Driver Module Guide
Solving stalling and no-start issues in your Town Car often begins with this simple, easy-to-replace part.
- The FPDM is a primary suspect for a crank-no-start or stalling condition and should be checked before replacing the fuel pump.
- On the 2006-2011 Town Car, the module is located in the trunk and is extremely easy to replace yourself in minutes.
- Unlike other Fords, failure is caused by internal electronics, not corrosion from being mounted on the frame.
- No programming is needed for this part on this vehicle; it is a simple plug-and-play replacement.
Is Your Town Car Stalling or Not Starting?
A common point of failure on the 2006-2011 Lincoln Town Car is the Fuel Pump Driver Module (FPDM). When this module fails, it can no longer properly command the fuel pump, leading to a set of distinct and frustrating symptoms. Many owners mistakenly replace the entire fuel pump, which is a much more expensive and difficult job, when the FPDM was the real culprit.
Common Symptoms of a Bad FPDM
- Engine Cranks but Won't Start: This is the most frequent and severe symptom. The engine turns over, but it won't fire because it's not receiving fuel.
- Sudden Engine Stalling: The car may start and run for a while, then suddenly die while driving. This is a major safety concern as it can happen at any speed without warning.
- Hesitation or Stumbling: When you press the gas, the car may hesitate, buck, or feel like it's losing power. This happens because the FPDM isn't telling the pump to deliver more fuel quickly enough.
- Check Engine Light: A failing FPDM will almost always trigger a Check Engine Light. The most common trouble code is P1233, which means the main computer has lost communication with the FPDM. 🎬 Watch: How to diagnose a P1233 code and test your module.
A Note on Town Car FPDM Failures
If you've searched for this problem online, you've likely seen many stories about Ford F-150s and Expeditions where the FPDM corrodes and rots away. This is because on those trucks, the module is mounted to the steel frame, trapping salt and moisture. This is NOT the case for the 2006-2011 Town Car. On your vehicle, the module is located safely inside the trunk, protected from the elements. Failure on the Town Car is due to internal electronic failure over time, not outside corrosion.
Choosing the Right Aftermarket Fuel Pump Driver Module
Since the OEM part has a known failure rate, turning to the aftermarket is a popular and cost-effective choice. All the brands listed are designed as direct, plug-and-play replacements with no programming required.
| Brand Tier | Brands | Quality & Notes |
|---|---|---|

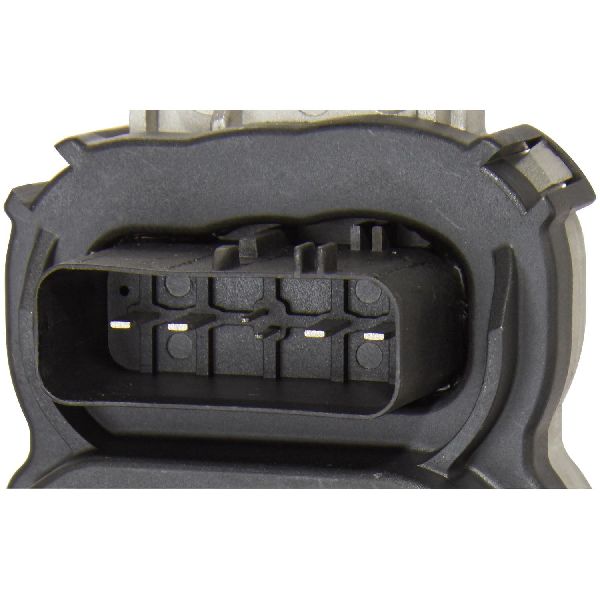

| Premium Aftermarket | Standard Ignition, Spectra | These brands are known for producing parts that meet or exceed original equipment specifications. They are considered a top-quality choice for reliability and longevity, making them a safe bet for a long-term repair. |

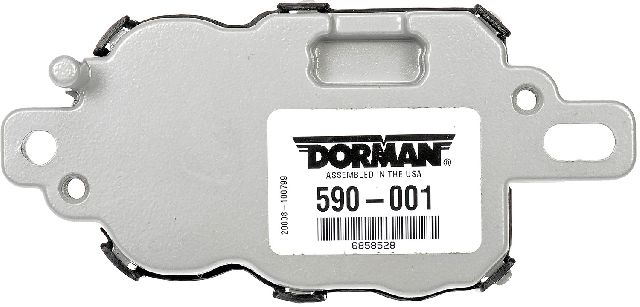

| Well-Known Aftermarket | Dorman | Dorman is a very popular brand that often engineers "OE Fix" solutions. While many of their design improvements target the corrosion issue on Ford trucks, they are a widely available and recognized option. Reviews can be mixed, but they are a common choice for this repair. |
| Value Option | Replacement | This represents a budget-friendly option. While it will get the job done, it may not have the same level of engineering or long-term testing as the premium brands. It's a viable choice if the price is the primary concern. |
Cost of Replacing the FPDM
This is one of the best repairs for a DIY-minded owner. Because the part is in the trunk and held on by two simple bolts, shop labor should be minimal.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $65 - $140 |
| New OEM Part | $160 - $250 |
| Shop Labor | $50 - $100 |
| Total (Shop Repair) | $210 - $350 |
| Total (DIY Repair) | $65 - $140 |
Pro Tip: An Easy DIY Fix
Replacing the FPDM on a 2006-2011 Town Car is extremely easy. You simply pull back the driver's side trunk liner, locate the module, unplug the electrical connector, and remove two 10mm bolts. The entire job can be done in under 15 minutes with basic hand tools, saving you labor costs.
🎬 Watch this quick walkthrough of the FPDM diagnostic and repair.Frequently Asked Questions (FAQ)
Where is the Fuel Pump Driver Module located on my Town Car?
It is located in the trunk, on the driver's side, behind the carpet liner. 🎬 See exactly where the module is hidden in your trunk. You will see a small black box mounted to the body.
Is this a difficult repair? Can I do it myself?
This is a very easy repair. All you need is the ability to pull back the trunk liner and a 10mm socket or wrench to remove two bolts. It is considered a beginner-level DIY job.
Does the new module need to be programmed?
No. For the 2006-2011 Lincoln Town Car, the Fuel Pump Driver Module is a plug-and-play part. No special tools or programming are required.
How do I know if it's the FPDM or the fuel pump?
Because the FPDM is a known failure point, much cheaper, and incredibly easy to replace, it is almost always the recommended first step. If your car has symptoms like stalling or a crank-no-start, replacing the FPDM first is a smart diagnostic step that often solves the problem without the expense of a fuel pump replacement.
What's the red button in the driver's footwell?
That is the inertia fuel shut-off switch. It's a safety device that cuts power to the fuel system in a collision. Before replacing any parts for a no-start condition, make sure that button is pressed down and has not been accidentally tripped. A tripped inertia switch can cause similar symptoms, including a P1233 code.
Helpful Videos
Technical Specifications
OEM Part Numbers: 6W7Z-9D372-CA 3W1Z-9D372-AA 6C2Z-9D372-A 5W7Z-9D372-A
Controls voltage to the in-tank fuel pump as part of the electronic returnless fuel system. Located in the trunk on the driver's side.
