Mercury Milan Engine Valve Cover Gasket Set Guide (2006-2011)
If you smell burning oil or see smoke from your engine, your valve cover gasket may be the culprit.
- A burning oil smell is the most common sign of a failed valve cover gasket on a Milan.
- The job is much easier and cheaper on 4-cylinder engines than on the 3.0L V6 due to the rear gasket's location.
- Always buy a full gasket *set* that includes spark plug tube seals and grommets to do the job right the first time.
- High-quality aftermarket brands like Fel-Pro and Victor Reinz offer excellent performance and value for this repair.
Is Your Mercury Milan Leaking Oil?
A common issue for the 2006-2011 Mercury Milan is a leaking valve cover gasket. This is a normal wear-and-tear item. The gasket is made of rubber, which gets hard and brittle over time from engine heat. When this happens, it can't create a proper seal, and oil starts to seep out.

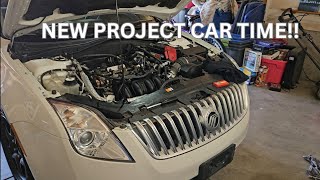

The most obvious sign is the smell of burning oil. This happens when oil leaks from the gasket and drips onto the hot exhaust manifold below. You might also see smoke coming from under the hood, notice oil stains on the ground where you park, or find oil in the spark plug wells 🎬 Watch a 2010 Milan get a full tune-up and inspection. when changing your spark plugs. A low engine oil level is another clue.
🎬 Watch a video on the five telltale signs of a leak.Engine Differences Matter
The 2006-2011 Mercury Milan came with two main engine types: a 4-cylinder (2.3L and 2.5L) and a V6 (3.0L). The replacement process is very different for each.

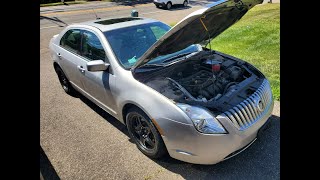

- 4-Cylinder (2.3L, 2.5L): Replacing the gasket is a straightforward job. Access is easy, and it can usually be done in a couple of hours. 🎬 See a step-by-step gasket replacement for the 2.3L 4-cylinder engine.
- 3.0L V6: This engine has two valve covers. The front one is easy to get to, but the rear one is much harder. It often requires removing the intake manifold to access it, which adds significant time and cost to the repair.
Choosing the Right Aftermarket Gasket Set
You don't need to buy an expensive OEM (Original Equipment Manufacturer) part for this repair. High-quality aftermarket brands often meet or exceed OEM specifications and are a smart choice for Milan owners. Aftermarket kits are also more likely to include all the necessary components like spark plug tube seals and grommets.
Aftermarket Brand Tiers for Mercury Milan
- Top Tier (Excellent Quality): Brands like Fel-Pro and Victor Reinz are highly respected. Fel-Pro is a long-standing top choice for aftermarket gaskets in the US. Victor Reinz is an OEM supplier for many European cars and is known for high-quality, pliable rubber gaskets. Elring is another German brand with a strong reputation, often compared to Fel-Pro.
- Mid Tier (Good Quality & Value): Beck Arnley is a reliable choice. They often source their parts from various manufacturers, sometimes even re-boxing the original OEM part. Their quality is generally considered good and dependable.
- Economy Tier (Budget-Friendly): While not one of the listed brands, many store-brand or budget online options exist. These can be a viable option for a quick fix, but their long-term durability may not match the top-tier brands. For the small price difference, investing in a better brand is usually worth it for peace of mind.
Known Issues, TSBs, and Recalls
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for a leaking valve cover gasket on the 2006-2011 Mercury Milan. However, several recalls exist for this vehicle, including significant ones for Takata airbag inflators and ABS hydraulic control unit valves. It's wise to check if your vehicle has any open recalls by entering your VIN on the NHTSA website.
Frequently Asked Questions (FAQ)
Can I drive my Milan with a leaking valve cover gasket?
Yes, but it's not recommended for long. A small leak is not an immediate emergency, but you should get it fixed soon. If oil leaks into the spark plug tubes, it can cause engine misfires. If it drips onto belts or hoses, it can cause them to degrade and fail. A significant leak can lead to low oil levels, risking serious engine damage.
How much does it cost to replace a valve cover gasket set on a Mercury Milan?
The cost varies greatly depending on your engine. For a 4-cylinder engine, expect to pay between $200 and $263 for a professional repair. For the 3.0L V6, the cost will be higher due to the difficult-to-access rear gasket, potentially doubling the labor time. Aftermarket gasket sets themselves are affordable, ranging from about $30 to $108.
Is this a DIY-friendly repair?
For the 4-cylinder engines (2.3L and 2.5L), yes. It is a relatively simple job for a DIY mechanic with basic tools. For the 3.0L V6, replacing the front gasket is easy, but the rear gasket is a difficult job that may require removing the intake manifold and is best left to an experienced mechanic.
Do I need to use RTV sealant with the new gasket?
Yes, but only in specific spots. A small dab of RTV sealant is typically required where the timing cover meets the cylinder head to prevent leaks at these joints. Do not apply sealant around the entire gasket unless the instructions for your specific part say to do so.
Helpful Videos
Technical Specifications
OEM Part Numbers: VS50644R VS50412 1S7Z-6584-BA VS50639R1
Fitment varies by engine size (2.3L/2.5L I4 or 3.0L V6). Gasket sets are typically made from molded rubber. Sets should include the main valve cover gasket, spark plug tube seals, and valve cover bolt grommets.
