A Guide to the 2006-2011 Volkswagen Passat Disc Brake Hardware Kit
Don't let a few small clips and springs ruin your Passat's brake job; here's what you need to know.
- Always replace the disc brake hardware with every brake pad change to ensure safety and performance.
- The rear brakes use an Electronic Parking Brake (EPB) that requires a scan tool to retract for service.
- Corroded or worn hardware is a primary cause of brake noise and uneven pad wear on the Passat.
- Choosing a quality aftermarket kit with corrosion-resistant coatings can extend the life of your brake job.
Why Your Passat Needs Fresh Brake Hardware
When performing a brake job on your 2006-2011 VW Passat, replacing the disc brake hardware is not just a recommendation—it's essential for proper brake function and longevity. These small metal parts are exposed to extreme heat, moisture, and road salt. Over time, they lose their spring tension, corrode, and can even break. Worn hardware can cause brake noise, uneven pad wear, and a spongy-feeling brake pedal. Reusing old hardware is a false economy that often leads to doing the job twice.
A Critical Note on the Rear Brakes

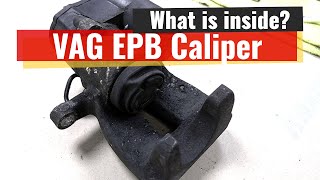

The 2006-2011 (B6) Passat features an Electronic Parking Brake (EPB). This system uses electric motors on the rear calipers. Replacing the rear pads and hardware is more complex than the front. You cannot simply push the rear caliper piston back; it must be retracted using a compatible diagnostic scan tool (like VCDS). 🎬 Watch how to retract rear calipers using VCDS software. Attempting to force the piston will destroy the caliper's internal mechanism. 🎬 See a teardown of the Passat's complex EPB rear caliper. This system is a known trouble spot, and issues with the EPB can sometimes be misdiagnosed when the actual problem is a seized caliper or faulty hardware.
Choosing the Right Aftermarket Hardware Kit
Several reputable brands offer hardware kits for your Passat. They generally fall into a few quality tiers. While OEM hardware is available, quality aftermarket kits can offer similar performance and sometimes better corrosion resistance for less money.
Premium Brands (e.g., Raybestos, Dynamic Friction): These kits often feature stainless steel construction or enhanced coatings to resist rust and corrosion. This is especially important for Passat owners in regions with winter weather and road salt. They provide the best fit and longest life, ensuring your brakes operate quietly and smoothly.
Standard Brands (e.g., Centric, Carlson): These brands are the workhorses of the aftermarket, providing reliable, OEM-quality fit and function. For most daily driving situations, a standard kit from a brand like Centric is a perfectly acceptable and cost-effective choice. They are a significant upgrade over worn, original hardware.
Economy Brands (e.g., Dorman, various store brands): While functional, economy kits may use thinner materials or basic steel that is more prone to rust. They can be a budget-friendly option, but may not last as long or provide the same noise-damping qualities as higher-tier kits.
| Brand Tier | Common Brands | Typical Price Range | Best For |
|---|---|---|---|
| Premium | Raybestos, Dynamic Friction | $15 - $40.95 | Longevity, corrosion resistance, quiet operation |
| Standard | Centric, Carlson | $10 - $25 | Daily drivers, OEM-equivalent performance |
| Economy | Dorman, Store Brands | $6.69 - $15 | Budget-conscious repairs |
Frequently Asked Questions (FAQ)
Do I really need to replace the hardware with every brake job?
Yes. The old clips and springs have been heat-cycled thousands of times and are likely corroded. This weakens them, preventing them from holding the new pads correctly. For a quiet, long-lasting brake job, new hardware is a must.
What's the difference between front and rear hardware kits?
The kits are specific to the front or rear axle. The rear hardware for the 2006-2011 Passat is designed to work with the unique Electronic Parking Brake (EPB) calipers and is not interchangeable with the front.
Can I reuse the caliper guide pins?
You can, but only if they are in perfect condition. Clean them thoroughly and inspect for any corrosion or wear. If you see any pitting or rust, replace them. Many premium hardware kits include new guide pins and boots.
My brakes are still binding after a brake job. What's wrong?
This is a common issue on the B6 Passat, especially on the rear. It could be a seized caliper piston, sticking guide pins, or an issue with the EPB motor not fully retracting. Ensure all components were cleaned, lubricated properly, and that the EPB was cycled correctly with a scan tool after the job was complete.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3C0927225C 3C0927225CREH
Vehicle is equipped with a front-left brake pad wear sensor. Rear calipers feature an Electronic Parking Brake (EPB) system that requires a scan tool for service.
