A Ford Mechanic's Guide to the 2006-2012 Focus Engine Valve Cover Gasket
If you smell burning oil or see leaks, your Ford Focus likely needs a new valve cover gasket.
- A burning oil smell is the most common sign of a failed valve cover gasket on a 2006-2012 Focus.
- This is a common DIY repair; proper cleaning and using RTV sealant at the timing cover seams are critical steps.
- Quality aftermarket brands like Fel-Pro, Victor Gaskets, and Beck Arnley are reliable and cost-effective alternatives to OEM.
- Check the spark plug wells for oil, as this can cause engine misfires and requires immediate attention.
Why Your Focus Valve Cover Gasket is Leaking

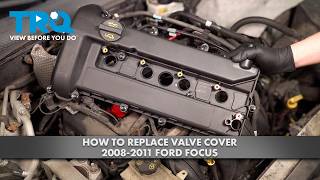

🎬 See this step-by-step replacement walkthrough for 2008-2011 models" loading="eager" fetchpriority="high" style="max-width:100%;height:auto;border-radius:6px;display:block;box-shadow:0 2px 8px rgba(0,0,0,0.1);" />The valve cover gasket on the 2.0L Duratec engine in the 2006-2012 Focus lives in a tough environment. Constant heat from the engine and exposure to motor oil cause the original rubber gasket to become hard, brittle, and shrink over time. Once it can no longer flex and seal properly, oil begins to seep out. This is a very common and expected wear-and-tear issue for these vehicles.
Symptoms of a Failing Gasket
A leaking valve cover gasket will give you clear warning signs. Ignoring them can lead to bigger problems, so it's best to address them when they appear.

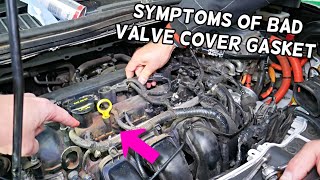

🎬 Watch: How to tell if your valve cover gasket is leaking- Burning Oil Smell: This is the most common symptom. Oil leaks from the gasket and drips onto the hot exhaust manifold located nearby, burning off and creating a distinct, unpleasant smell that you'll notice inside and outside the car, especially when stopped.
- Visible Oil Leaks: You may see wet, oily grime collecting on the side and back of the engine, just below the black plastic cover on top. In more advanced leaks, you might find small drips of oil on the ground under your engine.
- Oil in Spark Plug Wells: When the spark plug tube seals fail, oil pools in the wells where the spark plugs and ignition coils sit. This can cause the engine to misfire, run poorly, and trigger the Check Engine Light.
- Low Engine Oil: A persistent leak will cause your engine oil level to drop over time, requiring you to top it off between oil changes.
Known Issues, Recalls, and Service Bulletins
There are no active recalls or specific Technical Service Bulletins (TSBs) from Ford for a leaking valve cover gasket on the 2006-2012 Focus. This is considered a standard maintenance repair. Recalls you may find for this year range typically relate to the fuel system's canister purge valve, which is an unrelated issue.
Choosing the Right Aftermarket Gasket Set
For a part like this, a quality aftermarket gasket is a smart and cost-effective choice. The installation is more important than a minor difference between brands. All three brands below are reputable choices.
- Fel-Pro: Often considered the industry standard for aftermarket gaskets. They are known for quality materials and good fitment. For the Focus, they are a reliable, go-to option for most DIY and professional mechanics.
- Victor Gaskets (Victor Reinz): This is another top-tier brand, known for being an original equipment (OEM) supplier to many European car manufacturers. Their gaskets are often made from a very pliable, high-quality rubber that seals well.
- Beck Arnley: This brand specializes in sourcing parts directly from OEM suppliers. When you buy a Beck Arnley gasket, you are often getting the same part that the car was built with, just in a different box.
Pro Tip: Installation Matters Most
The success of this repair depends on proper installation. The mating surfaces on the engine head and the valve cover must be perfectly clean and free of old oil and gasket material. A small dab of RTV silicone sealant is required at the two sharp corners where the timing chain cover meets the cylinder head. Finally, tighten the valve cover bolts in the correct sequence (starting from the center and spiraling outwards) to the specified torque to ensure even pressure on the new gasket.
Engine Valve Cover Gasket Set Cost for 2006-2012 Ford Focus
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $30 - $42 |
| New OEM Gasket Set | $62 - $73 |
| Shop Labor | $140 - $225 |
Frequently Asked Questions
Can I still drive with a leaking valve cover gasket?
Yes, but you should get it fixed soon. A small leak is not an immediate emergency, but if left alone, it can lead to low oil levels, a fire hazard from oil on the exhaust, and damage to your ignition coils and spark plugs.
Is this a difficult job to do myself?
For most DIYers, this is a very manageable job. It requires basic tools (like 8mm and 10mm sockets), patience for cleaning, and attention to detail. Many step-by-step videos are available online for the 2.0L Duratec engine.
Do I need to replace the whole valve cover?

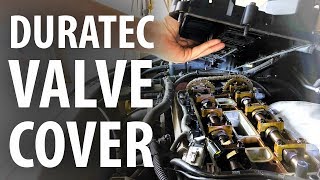

Usually, no. You only need to replace the entire valve cover if it is cracked or warped, which is less common. For a standard oil leak, just replacing 🎬 Watch: A pro mechanic demonstrates the Duratec gasket replacement the gasket set is all that's needed.
What comes in the gasket set?
A complete set for the Ford Focus should include the main perimeter gasket for the valve cover and four round seals for the spark plug tubes.

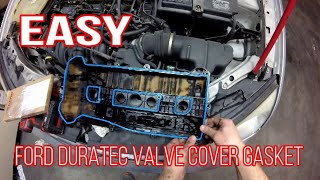

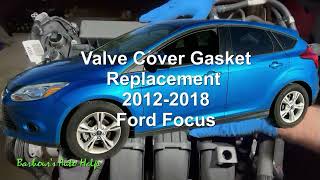

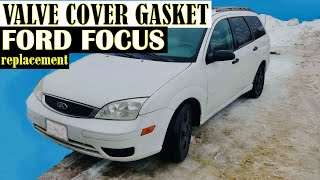

Helpful Videos
Technical Specifications
OEM Part Numbers: 1S7Z-6584-AA 1S7G6K260AA
Fits 2.0L Duratec DOHC engines. Set includes one perimeter gasket and four spark plug tube seals.
