A Guide to the 2006-2012 Mitsubishi Eclipse Timing Belt & Water Pump Kit
Everything Eclipse owners must know about this critical engine maintenance job.
- This is an interference engine; a broken timing belt will cause catastrophic engine damage.
- On the 3.8L V6, you must replace the water pump and hydraulic tensioner with the belt.
- Stick to high-quality aftermarket kits from brands like Gates, Aisin, or Continental to ensure reliability.
- Do not ignore coolant leaks or noises from the timing cover area; they are urgent warning signs.
The Most Important Maintenance Job on Your Eclipse
Both the 2.4L 4-cylinder and 3.8L V6 engines in the 2006-2012 Mitsubishi Eclipse are interference engines. This means if the timing belt breaks, the pistons will crash into the valves, leading to thousands of dollars in engine repairs or a complete engine replacement. This is not a part you can afford to neglect. The recommended replacement interval is typically every 60,000 to 100,000 miles, but if you don't have service records, it's safest to assume it needs to be replaced.
V6 vs. 4-Cylinder: A Critical Difference
It is vital to know which engine your Eclipse has. On the 3.8L V6, the water pump is driven by the timing belt. You MUST replace the water pump at the same time as the belt; a failing water pump bearing can destroy the new belt, and a coolant leak can ruin it. On the 2.4L 4-Cylinder, the water pump is driven by the external serpentine belt, making it a separate job. 🎬 Watch this step-by-step timing belt guide for the 2.4L engine. This guide focuses on the complete kit, which is most critical for V6 owners.
Symptoms of a Failing Timing Belt or Water Pump
Pay close attention to these warning signs. Ignoring them will lead to a breakdown and severe engine damage.
- Engine Noise: A ticking, rattling, or high-pitched squeaking sound from the engine's side where the belts are located can indicate a problem with the belt, tensioner, or pulleys.
- Coolant Leaks (V6): For V6 models, if you see coolant leaking from behind the timing belt covers, the water pump seal has likely failed. This is a major warning sign that requires immediate attention, as the coolant will degrade the belt.
- Poor Engine Performance: If a belt has stretched or jumped a tooth, it can cause the engine to run rough, misfire, have trouble starting, or lose power.
Choosing the Right Aftermarket Kit
Not all aftermarket kits are created equal. The quality of the tensioner, pulleys, and water pump is just as important as the belt itself. Given the catastrophic result of a failure, this is not the place to save a few dollars.
Brand Quality Tiers
- Top Tier (OEM Quality): Brands like Gates, Continental (ContiTech), and Aisin are well-regarded and often supply the original parts to Mitsubishi. These kits offer the highest reliability. Aisin, in particular, is often considered the same as OEM for Japanese vehicles.
- Mid-Grade: Dayco is another major OEM supplier. Their belts are high quality, though some mechanics find them stiffer and slightly harder to install when new. Brands like SKF and GMB are known for quality bearings and water pumps, respectively, and are often found in reputable kits.
- Budget Tier: Lesser-known or store-brand kits are available at a lower cost. While tempting, they may use lower-quality bearings in the pulleys or a less durable water pump. The risk of premature failure and catastrophic engine damage is significantly higher.
A Note on the Hydraulic Tensioner and Water Pump
The hydraulic tensioner is the single most critical component in the kit besides the belt. A cheap tensioner can fail, causing the belt to lose tension and destroy your engine. Always use a new tensioner from a quality kit. Some mechanics even insist on using a genuine Mitsubishi tensioner (Part #1145A070 for the V6) with an aftermarket kit for ultimate peace of mind. 🎬 See what a failing hydraulic tensioner sounds like in action. Additionally, one owner who documented their V6 repair experienced repeated water pump leaks with a Gates kit, suspecting the aftermarket gaskets were inferior to the OEM parts. When in doubt, using OEM gaskets and seals with a quality aftermarket kit can be a good strategy.
Estimated Replacement Costs
Prices can vary significantly based on your location and the shop's labor rate.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Kit (Part Only) | $165 - $440 |
| Shop Labor | $500 - $900+ |
| Total Professional Installation | $700 - $1300+ |
Frequently Asked Questions (FAQ)
When should I replace my Eclipse's timing belt?
The recommended service interval is typically between 60,000 and 100,000 miles. However, rubber degrades over time. If your car is within this mileage range but is over 10 years old, it's wise to replace it. If you have no service history, replace it as soon as possible for peace of mind.
Do I really need to replace the water pump with the timing belt?
For the 3.8L V6, YES, absolutely. The labor to get to the timing belt is the same as the labor to get to the water pump. Replacing it at the same time is preventative maintenance that saves you from doing the entire expensive job again if the pump fails later. For the 2.4L 4-cylinder, the water pump is a separate job, so it's not required, but you should still replace it if it shows any signs of leaking or wear.
Can I do this job myself?
This is an advanced, high-stakes repair. The engine must be properly supported, and setting the timing marks perfectly is critical. A mistake can destroy the engine the first time you turn the key. With limited space in the engine bay, it is a difficult job. For most owners, this job is best left to an experienced professional.
🎬 Watch a professional walkthrough of the 3.8L V6 belt replacement.Are all the aftermarket kits the same?
No. A premium kit from a brand like Aisin or Gates will use higher-quality bearings in the pulleys and a more robust water pump and tensioner compared to a budget kit. The small amount of money saved on a cheap kit is not worth the risk of catastrophic engine failure.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1145A070 (V6 Hydraulic Tensioner)

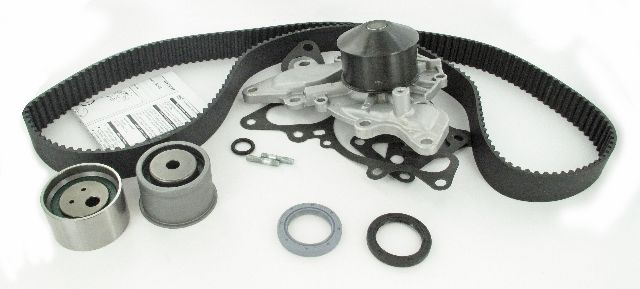

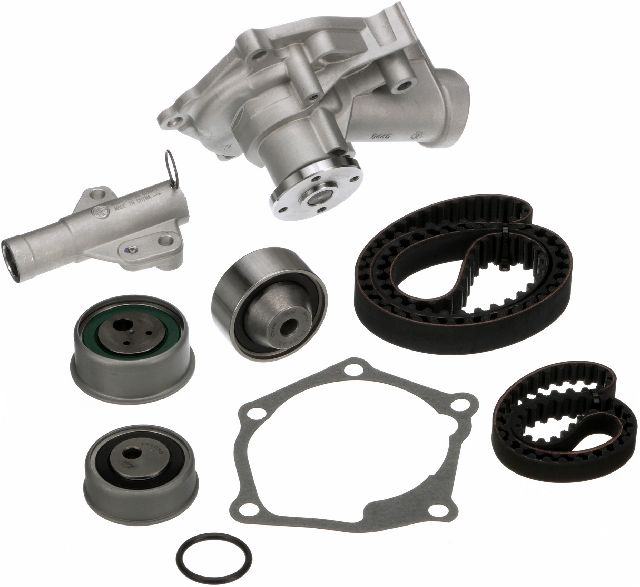

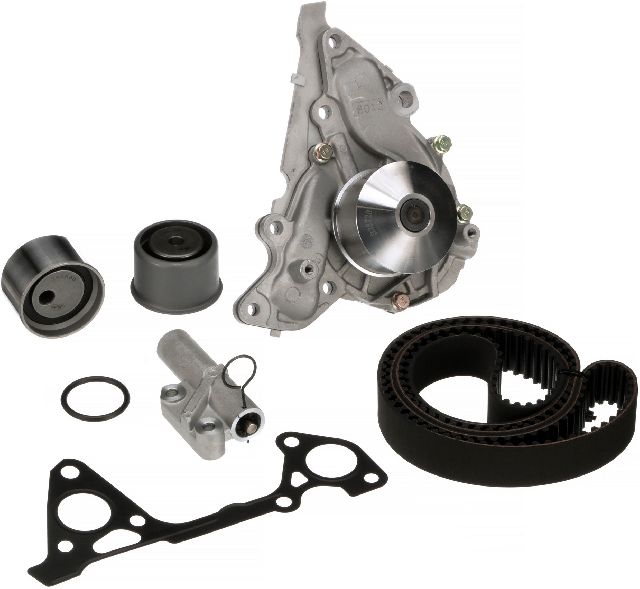

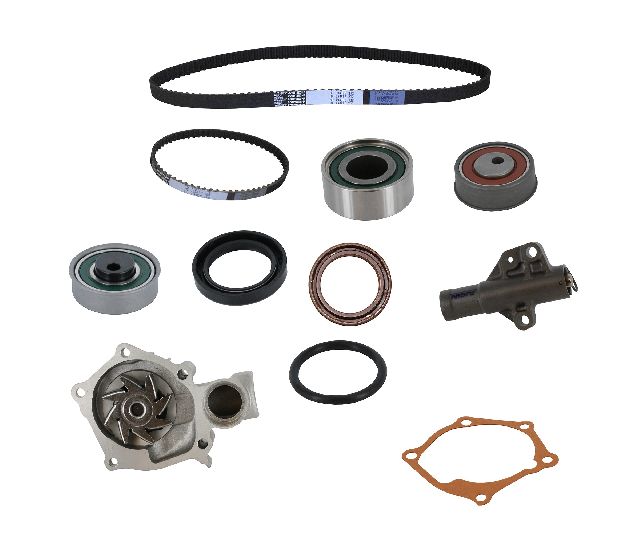

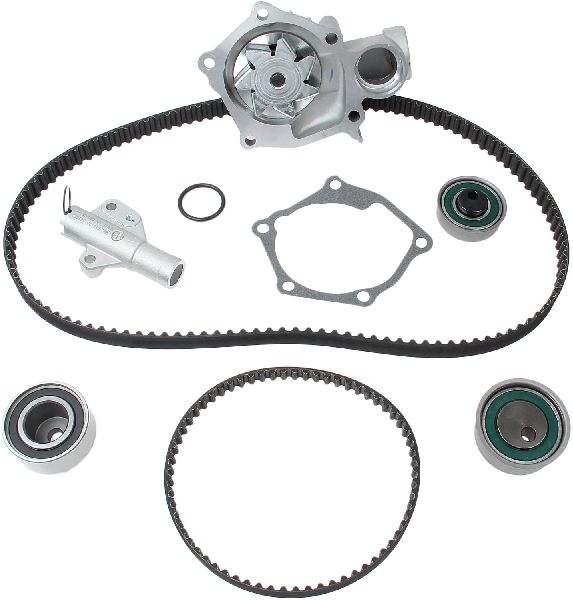

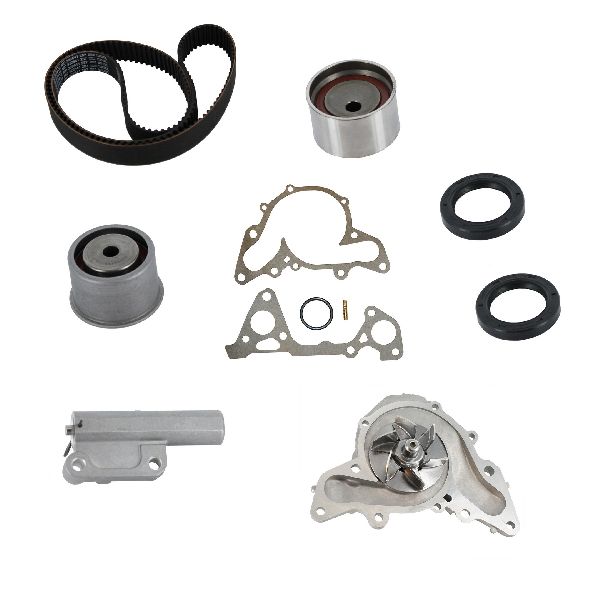

Kit typically includes: Timing Belt, Hydraulic Tensioner, Idler Pulley, Tensioner Pulley, Water Pump with Gasket. V6 and 4-Cylinder engines use different kits. Verify your engine before ordering.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
